Accelerator Pedal Position Sensor: Removal

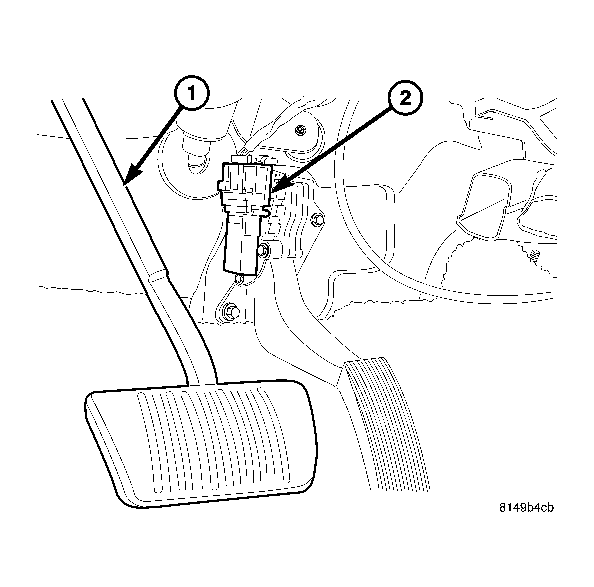

Fig 1: ACCELERATOR PEDAL POSITION SENSOR
GC0025700Courtesy of DAIMLERCHRYSLER CORP.
1 - BRAKE PEDAL
2 - APP SENSOR
  1. Disconnect negative battery cable.
  2. Disconnect accelerator pedal position sensor electrical connector. See Fig 1.
  3. Remove accelerator pedal position sensor assembly mounting bolts
  4. Open accelerator pedal position sensor assembly and disconnect accelerator cable
  5. Remove accelerator pedal position sensor assembly.
