Front Wheel Speed Sensor: Removal
- Raise vehicle and turn wheel outward to access the sensor.
- Disconnect sensor wire connector at harness plug.
- Remove sensor wire from mounting retainers.
- Clean sensor and surrounding area with shop towel before removal.

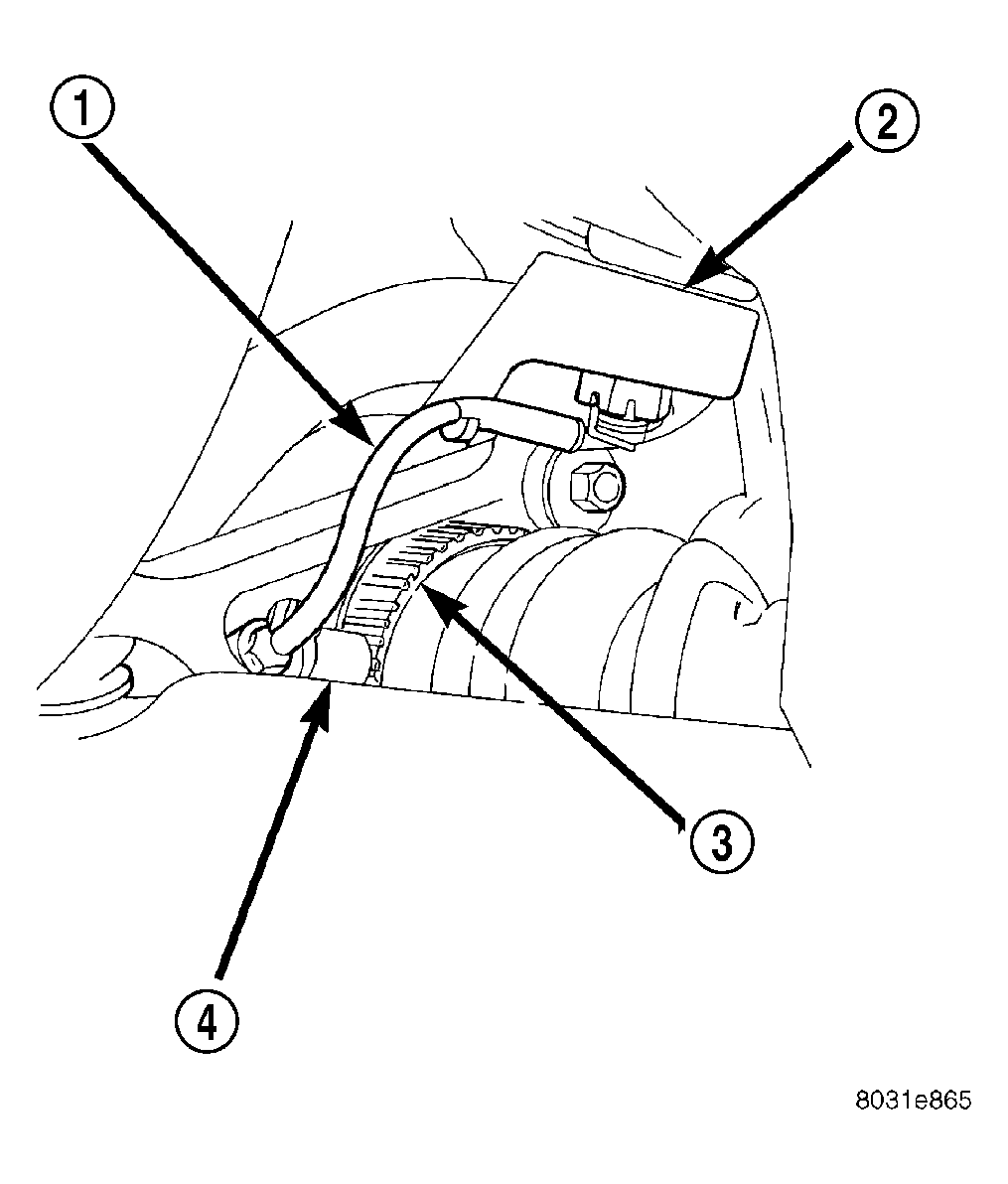

- Remove bolt attaching sensor to steering knuckle and remove sensor. See Fig 1.
| 1 - WHEEL SPEED SENSOR PIGTAIL |
| 2 - STEERING KNUCKLE |
| 3 - TONE WHEEL |
| 4 - FRONT WHEEL SPEED SENSOR |
