Evaporative Emissions System Locations

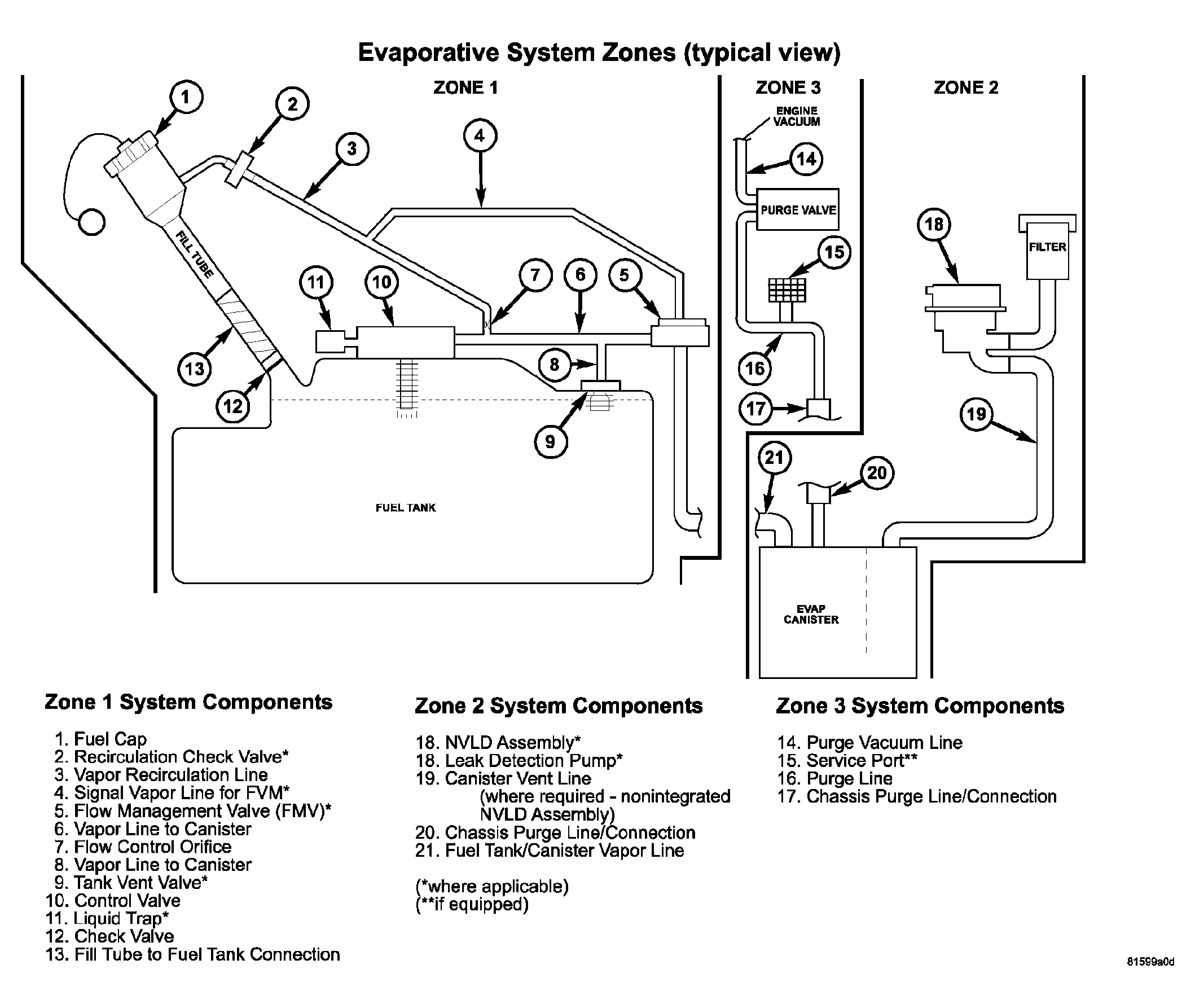

Fig 1: Evaporative System Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
