Torque References

TORQUE REFERENCES

DESCRIPTION

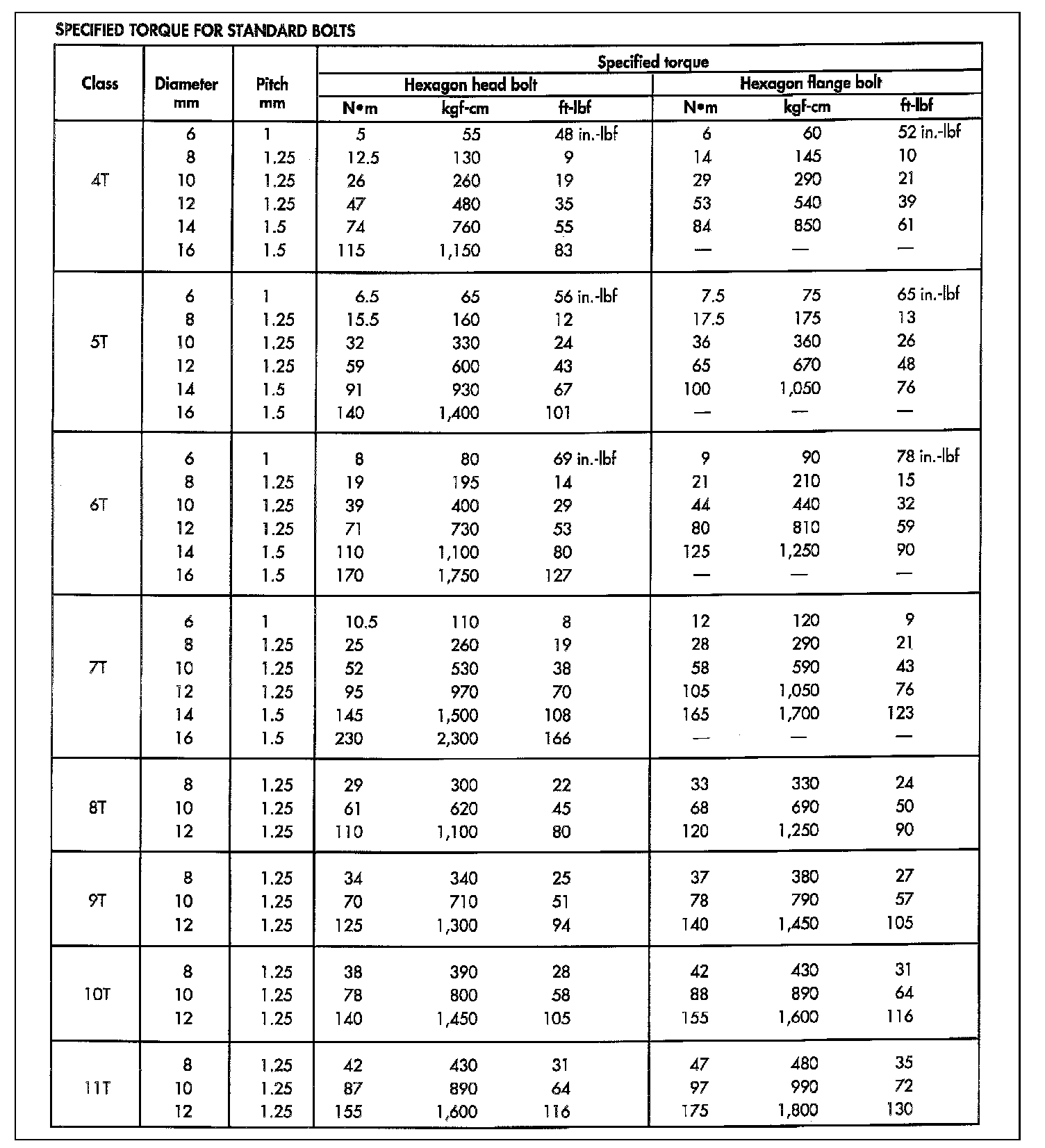

Specified Torque For Standard Bolts:




Individual Torque Charts appear within many of the Groups. Refer to the Standard Torque Specifications Chart for torque references not listed in the individual torque charts.
