Rear Cross-Member: Service and Repair

CROSSMEMBER-REAR/TRANSMISSION

REMOVAL




1. Remove the skid plate.
2. Support the transmission with a suitable lifting device.

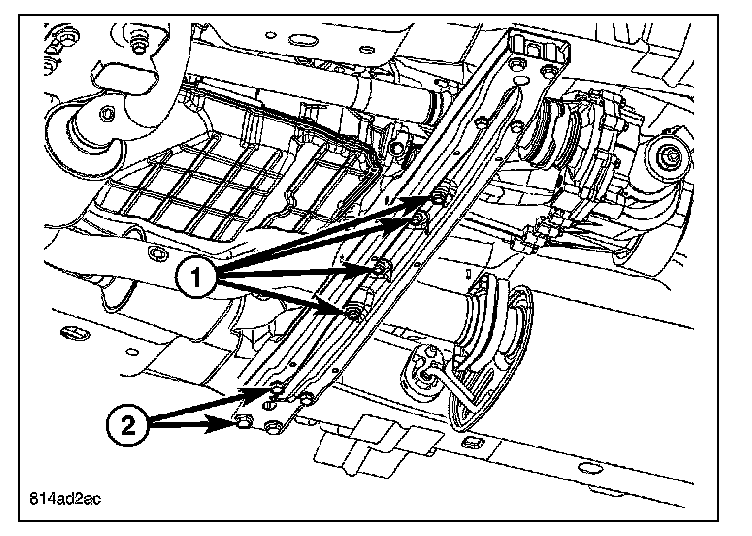

3. Remove the four transmission mount bolts (1).
4. Remove the eight crossmember bolts (2) and remove the crossmember.

INSTALLATION

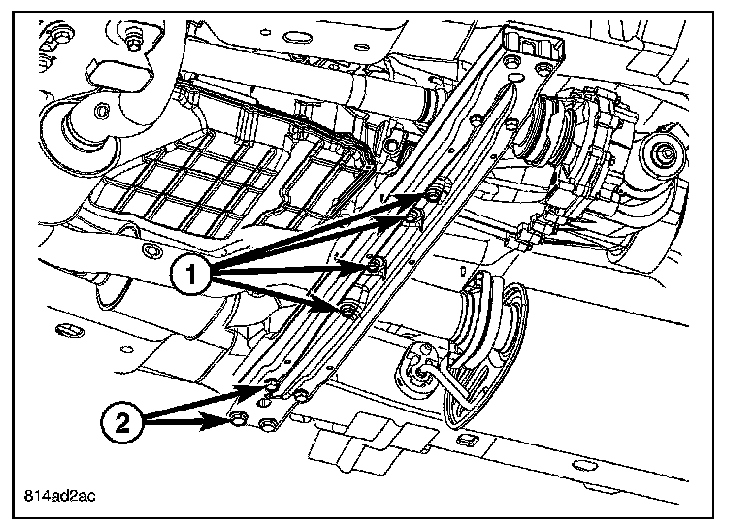

1. Install the crossmember and install the eight cross-member bolts (2).
2. Tighten the crossmember bolts to 54 N.m (40 ft.lbs).
3. Remove the lifting device.
4. Install the four transmission mount bolts (1) and tighten to 54 N.m (40 ft.lbs).
5. Install the skid plate.
