Grille: Service and Repair
GRILLEREMOVAL

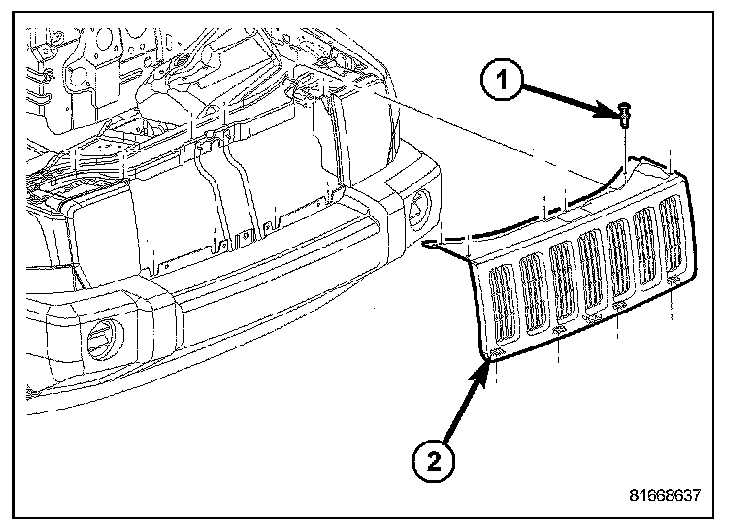

1. Remove the 6 upper push pins (1).
2. Tip grill forward and remove grill (2).
INSTALLATION
1. Tip grill and latch bottom of grill (2) to front fascia.
2. Install the 6 upper mounting push pins (1).
REMOVAL

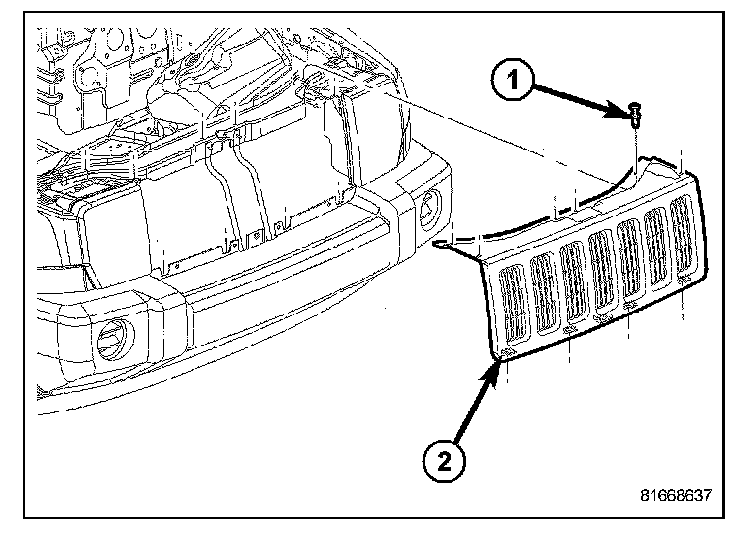

1. Remove the 6 upper push pins (1).
2. Tip grill forward and remove grill (2).
INSTALLATION
1. Tip grill and latch bottom of grill (2) to front fascia.
2. Install the 6 upper mounting push pins (1).
