Side View Mirror

MIRROR-OUTSIDE REARVIEW

REMOVAL




1. Remove the door trim panel.

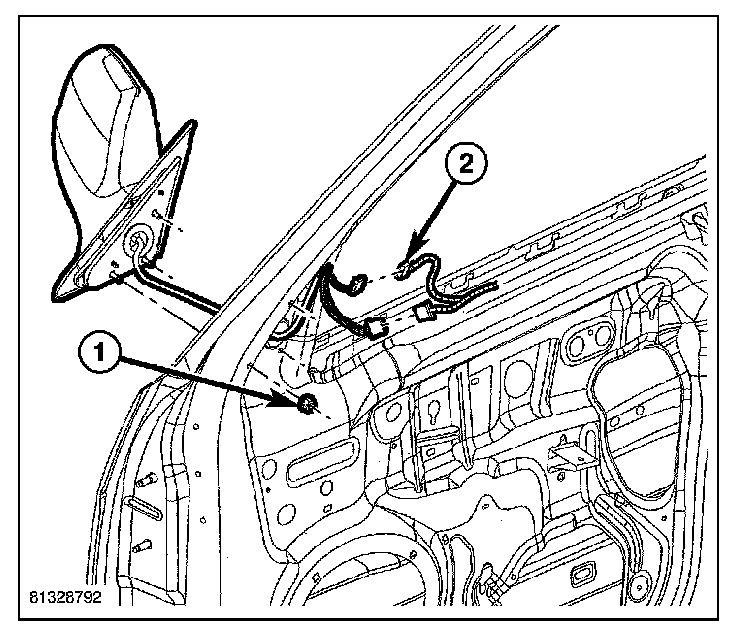

2. Disconnect the wire harness connectors (2) from the mirror.
3. Remove the three nuts (1) that secure the mirror to the door and carefully remove the mirror.

INSTALLATION

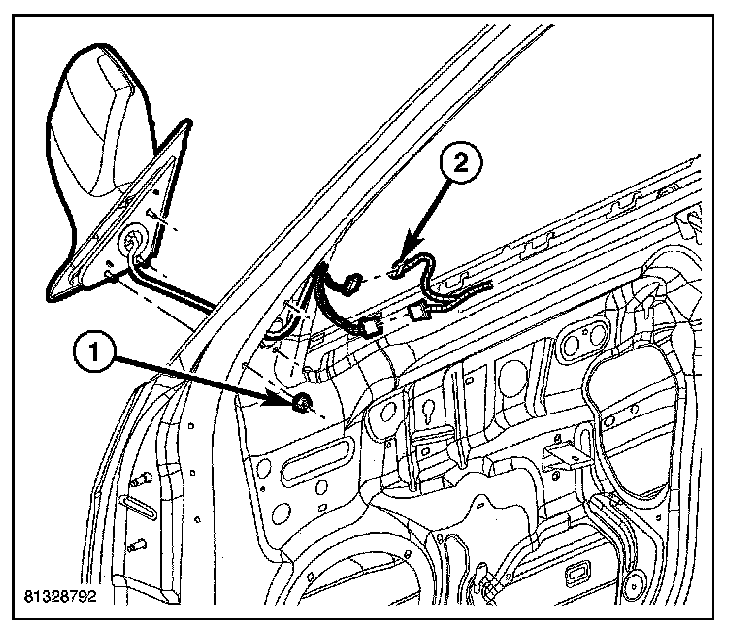

1. Position the mirror onto the door.
2. Install the three nuts (1) that secure the mirror to the door. Tighten the nuts to 7 N.m (60 in.lbs).
3. Connect the wire harness connectors (2) to the mirror.

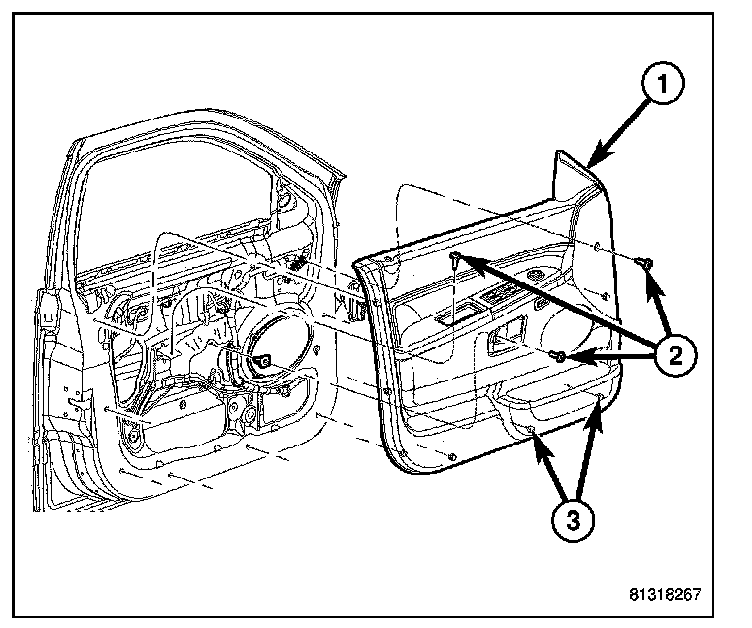

4. Install the door trim panel.
