Power Distribution Module

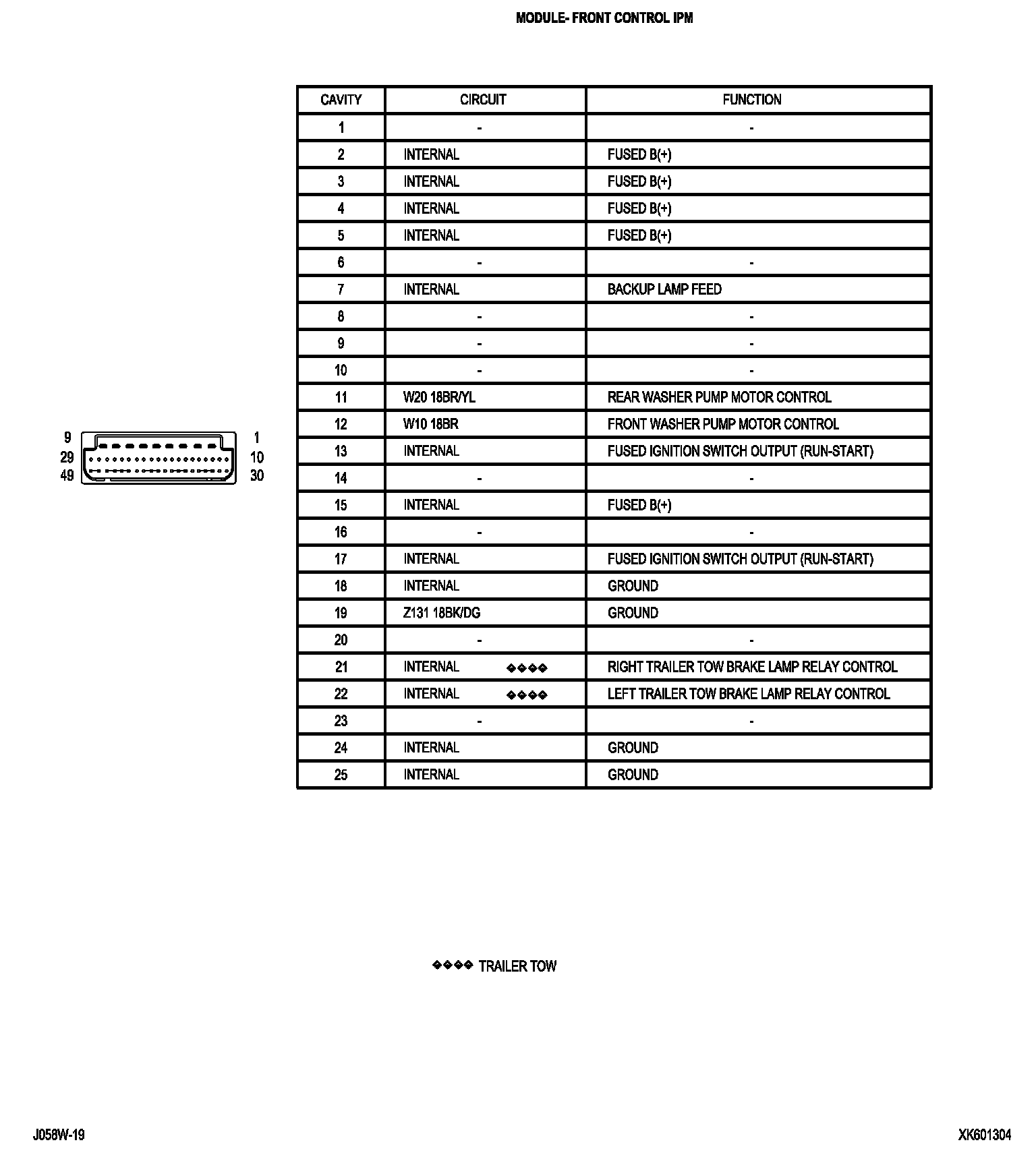

Module Front Control IPM (Part 1 Of 2):

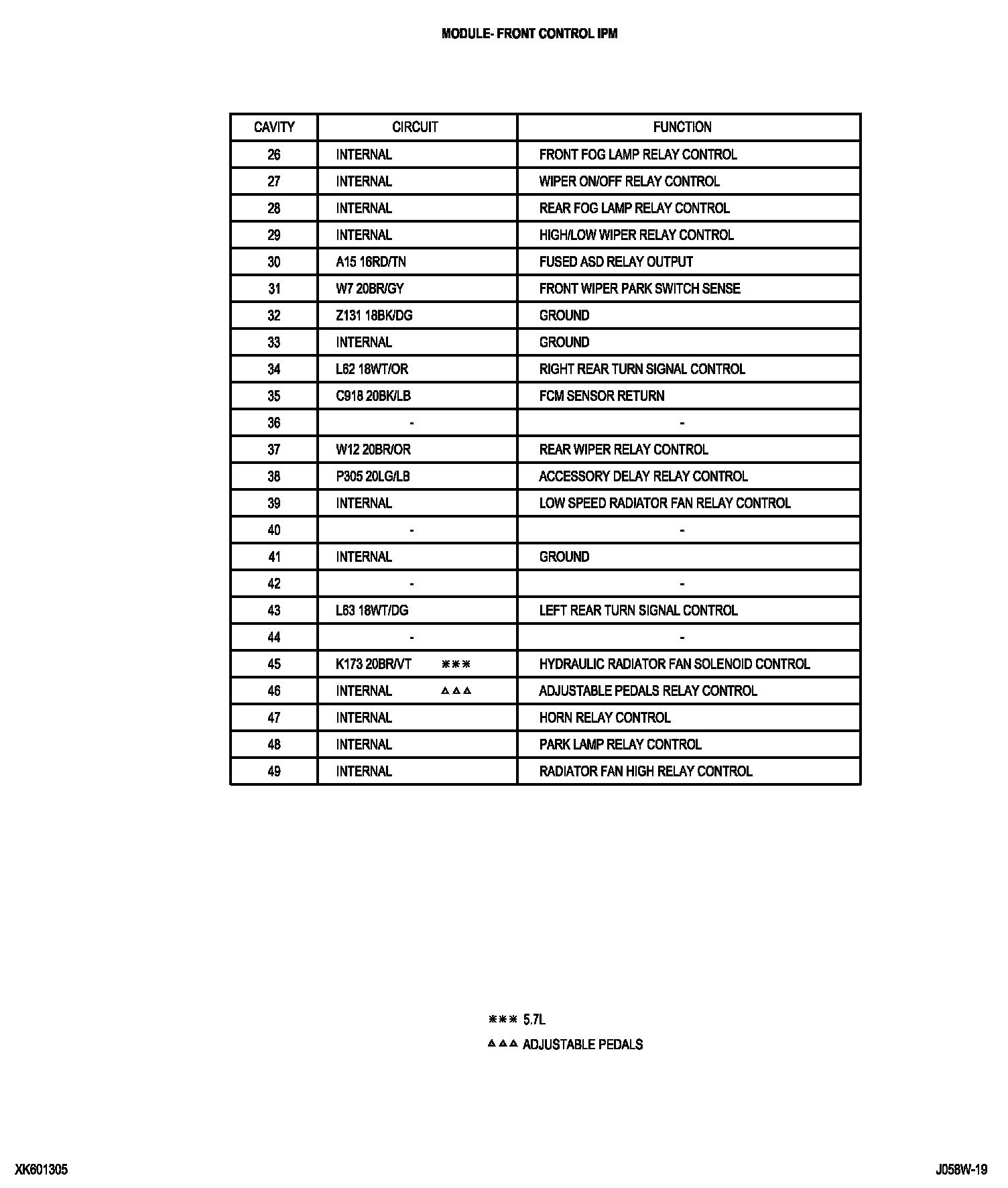

Module Front Control IPM (Part 2 Of 2):

Module Front Control C1:

Module Front Control C2:

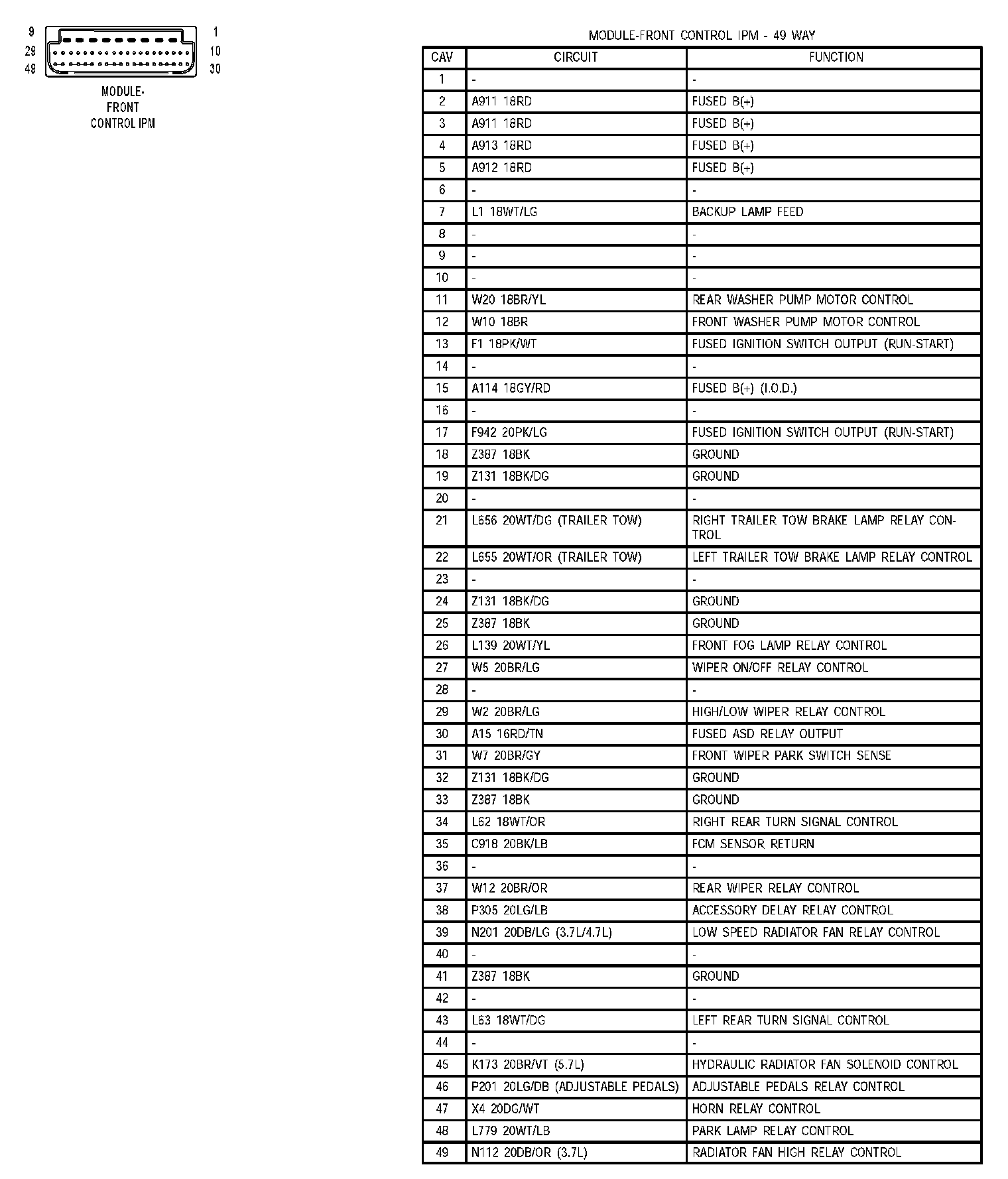

Module Front Control IPM:

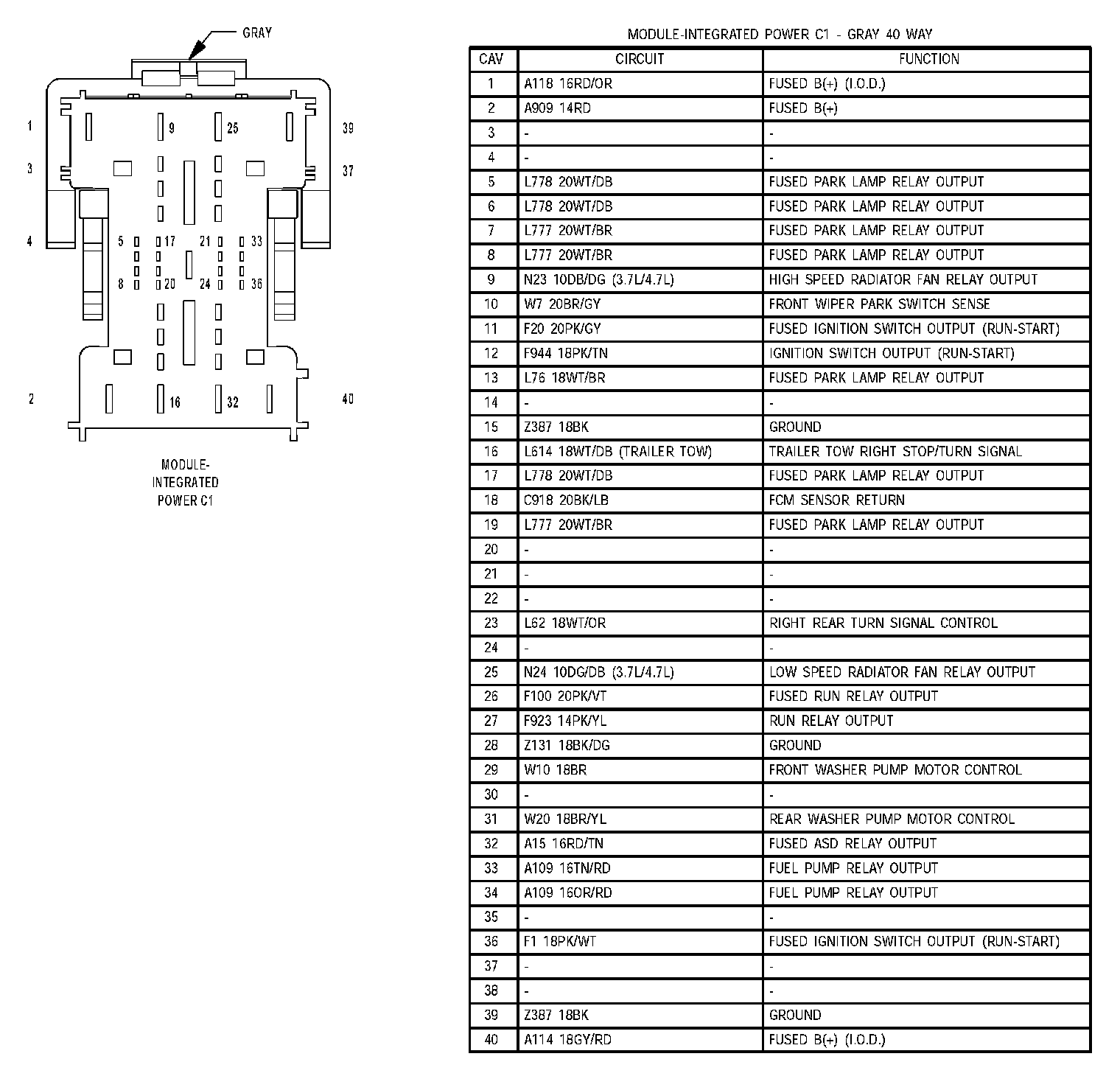

Module Integrated Power C1:

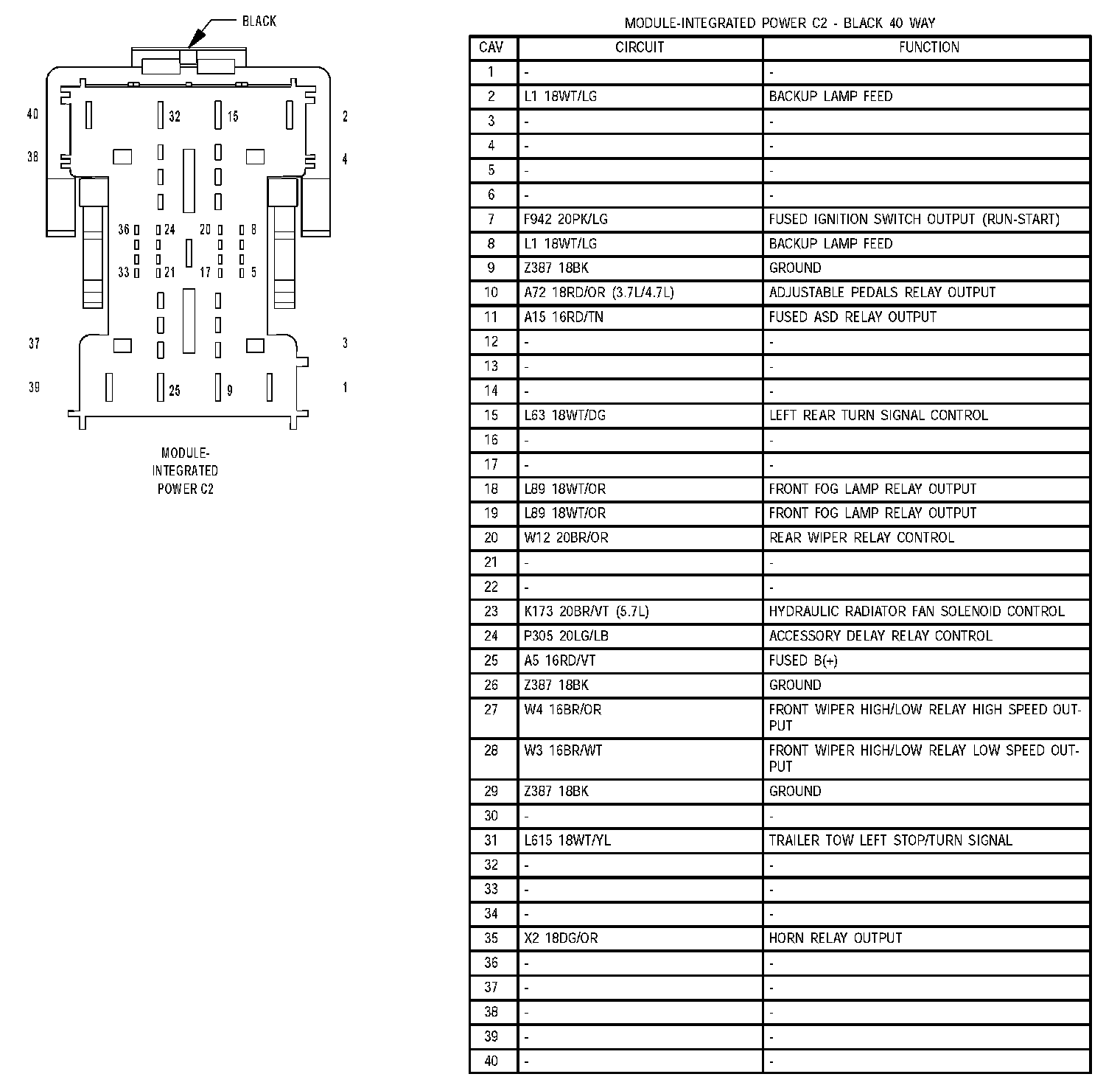

Module Integrated Power C2:

Module Integrated Power Eyelet:

Power Distribution Center Eyelet:
