Body Control Systems

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

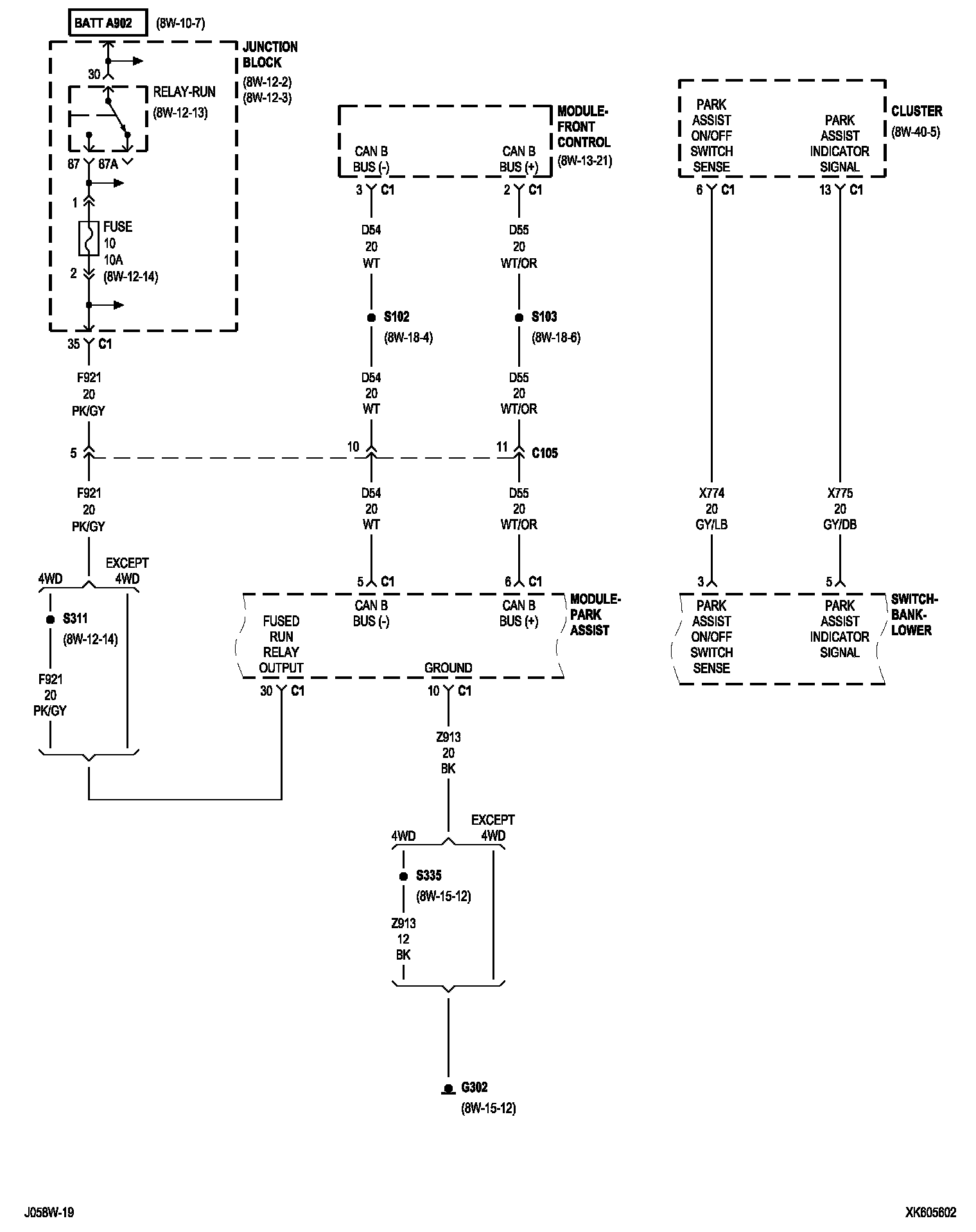

8w-56-2 (Park Assist):

8w-56-3 (Park Assist):

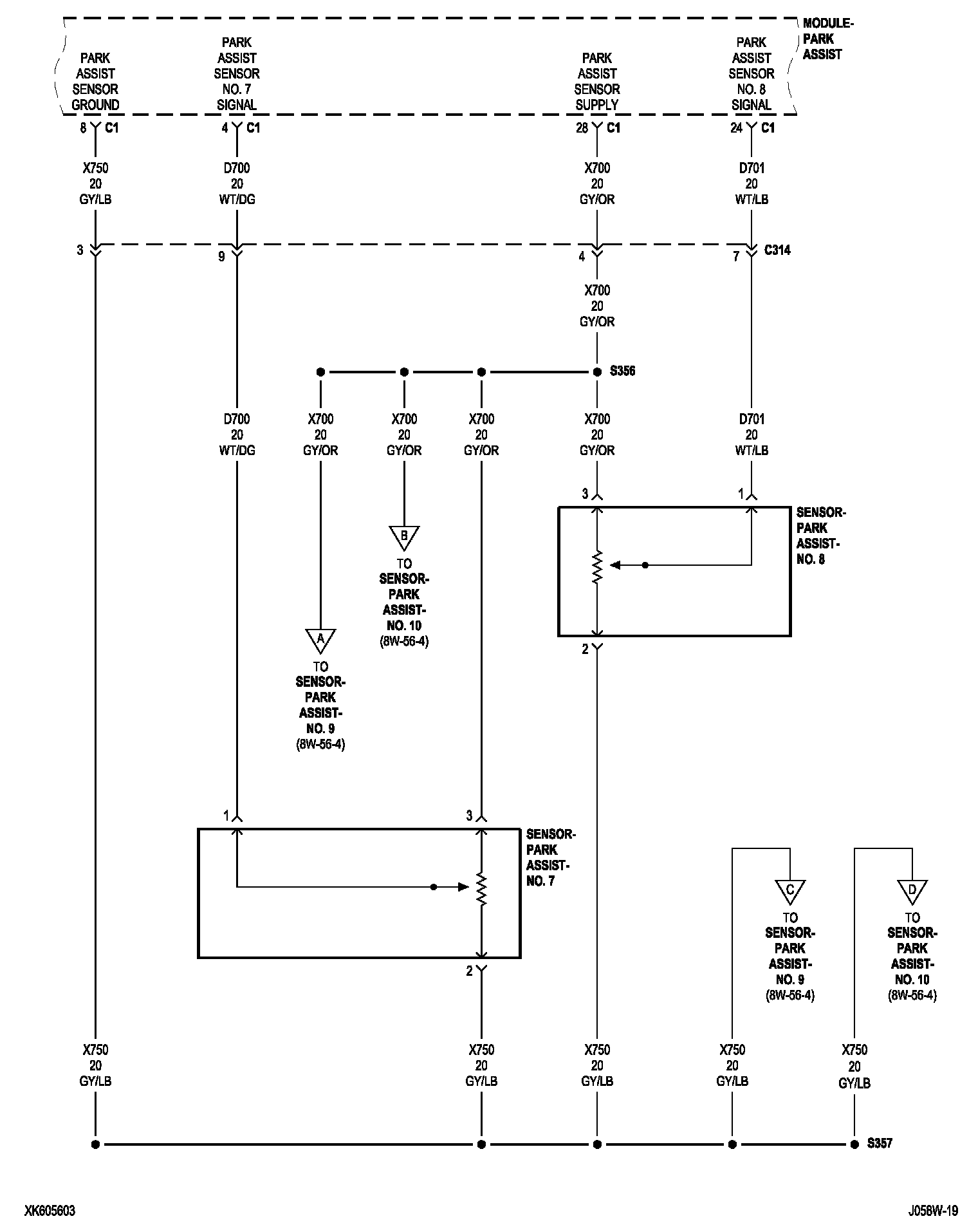

8w-56-4 (Park Assist):

8w-56-5 (Park Assist):

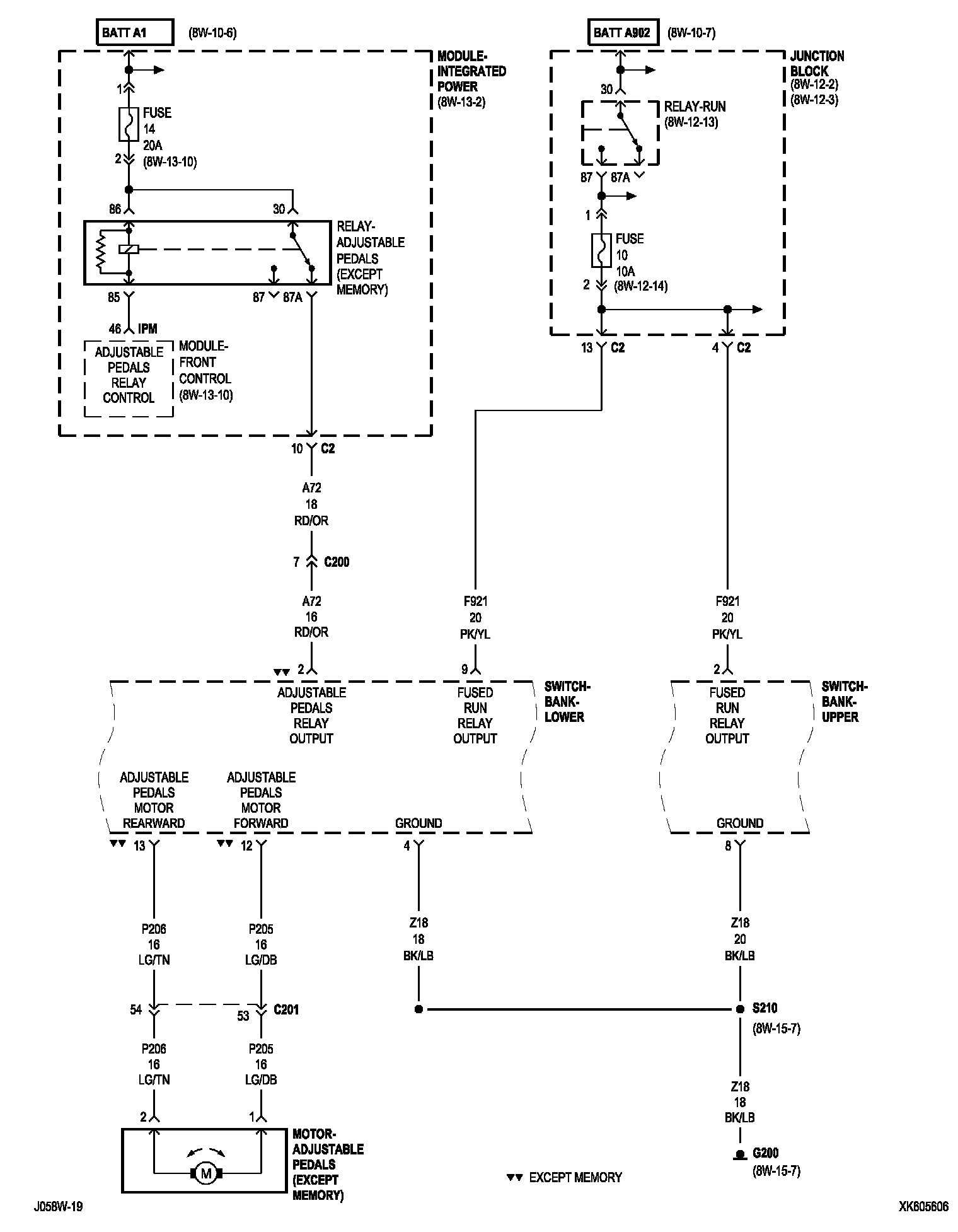

8w-56-6:

8w-56-7 (Front Park Assist):
