Figure 7

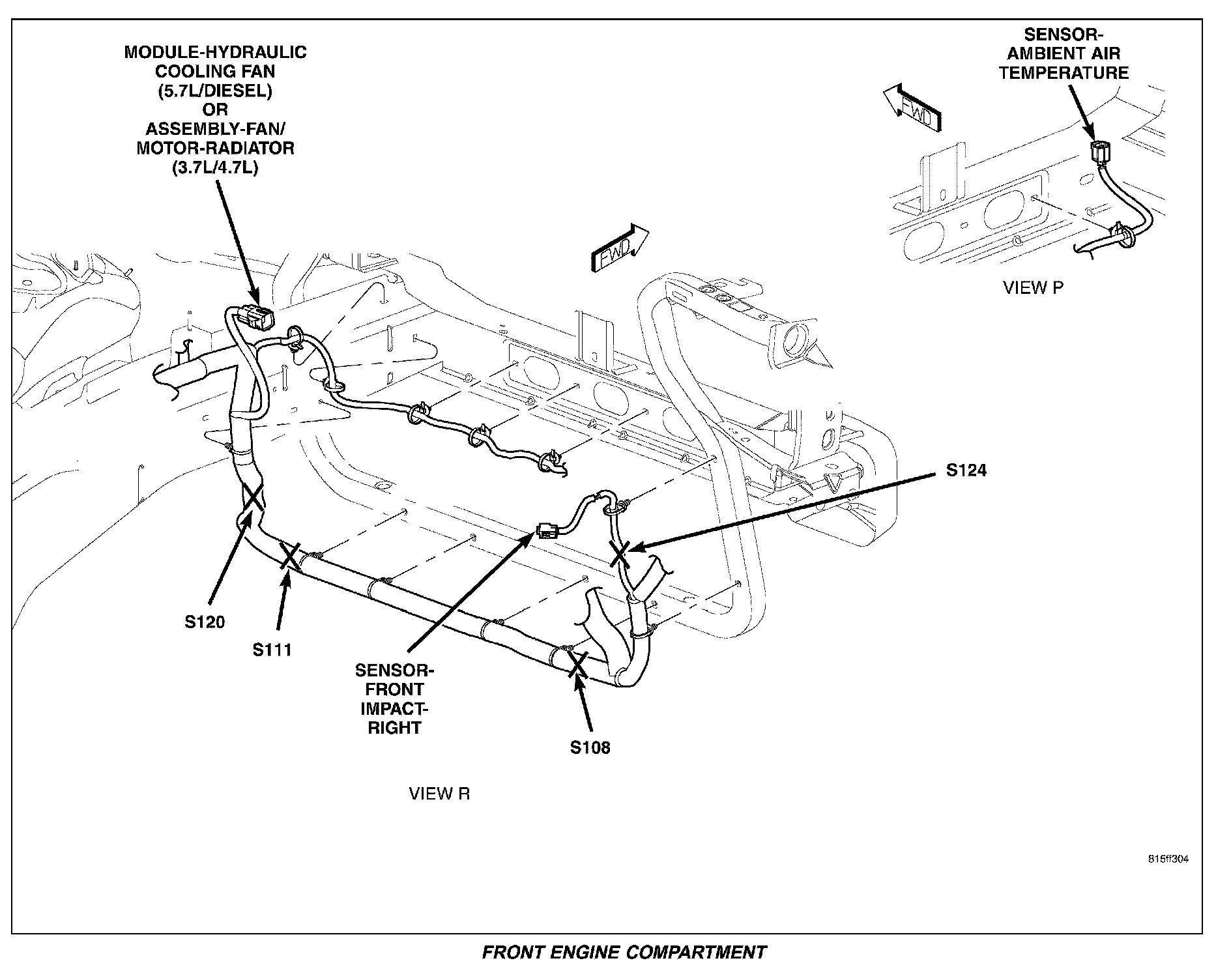

Front Engine Compartment:

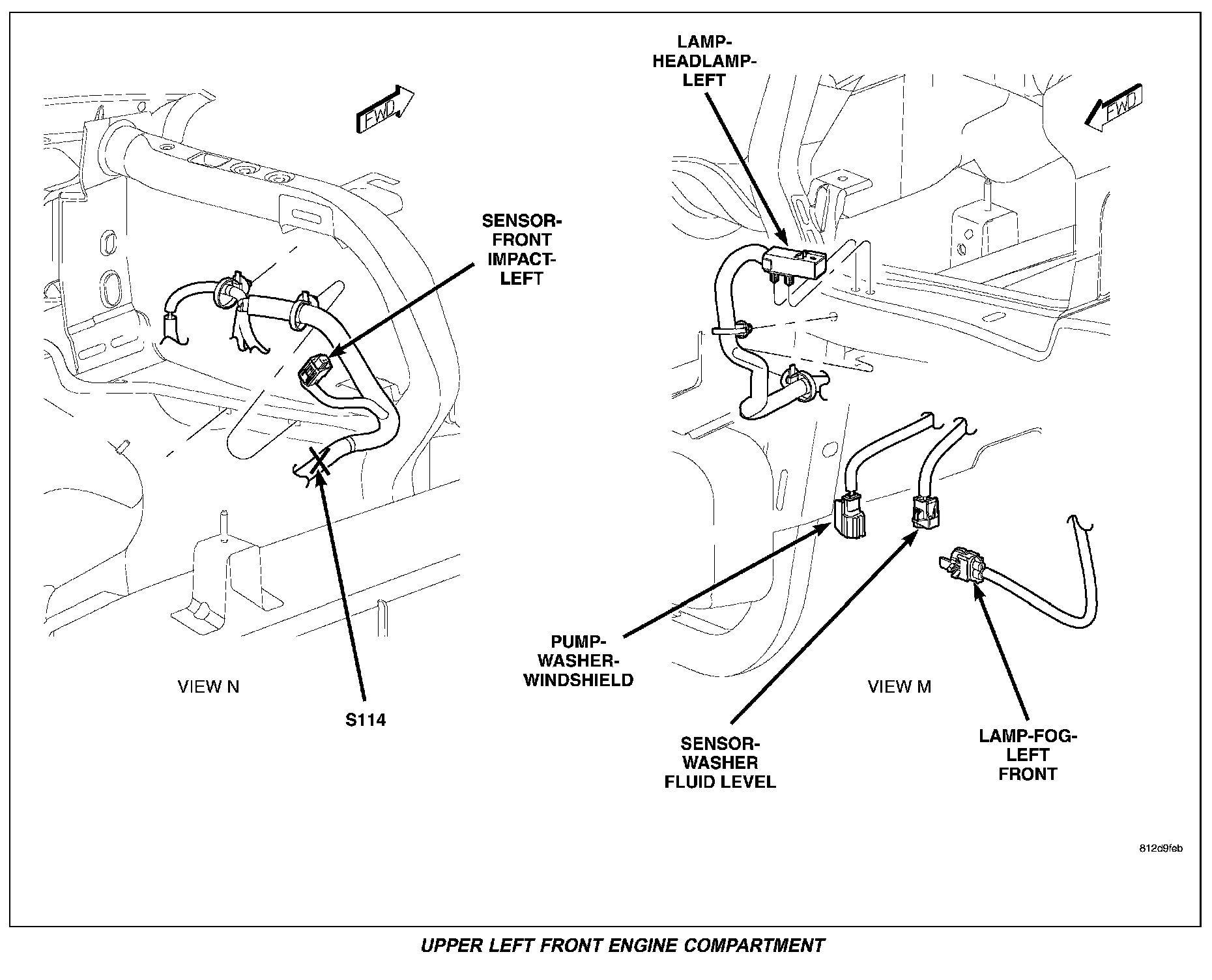

Upper Left Front Engine Compartment:



Left Front Body:

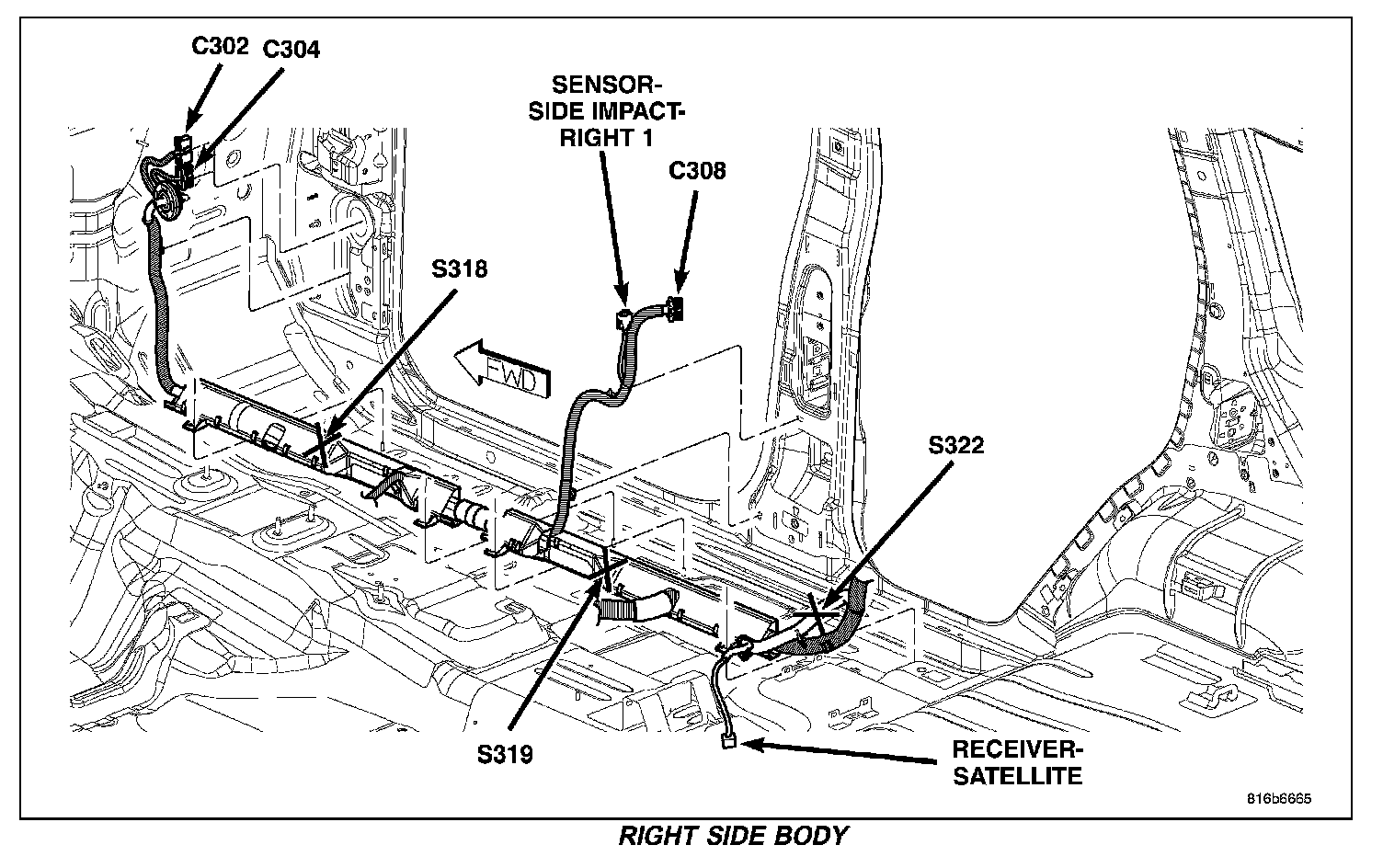

Right Side Body:

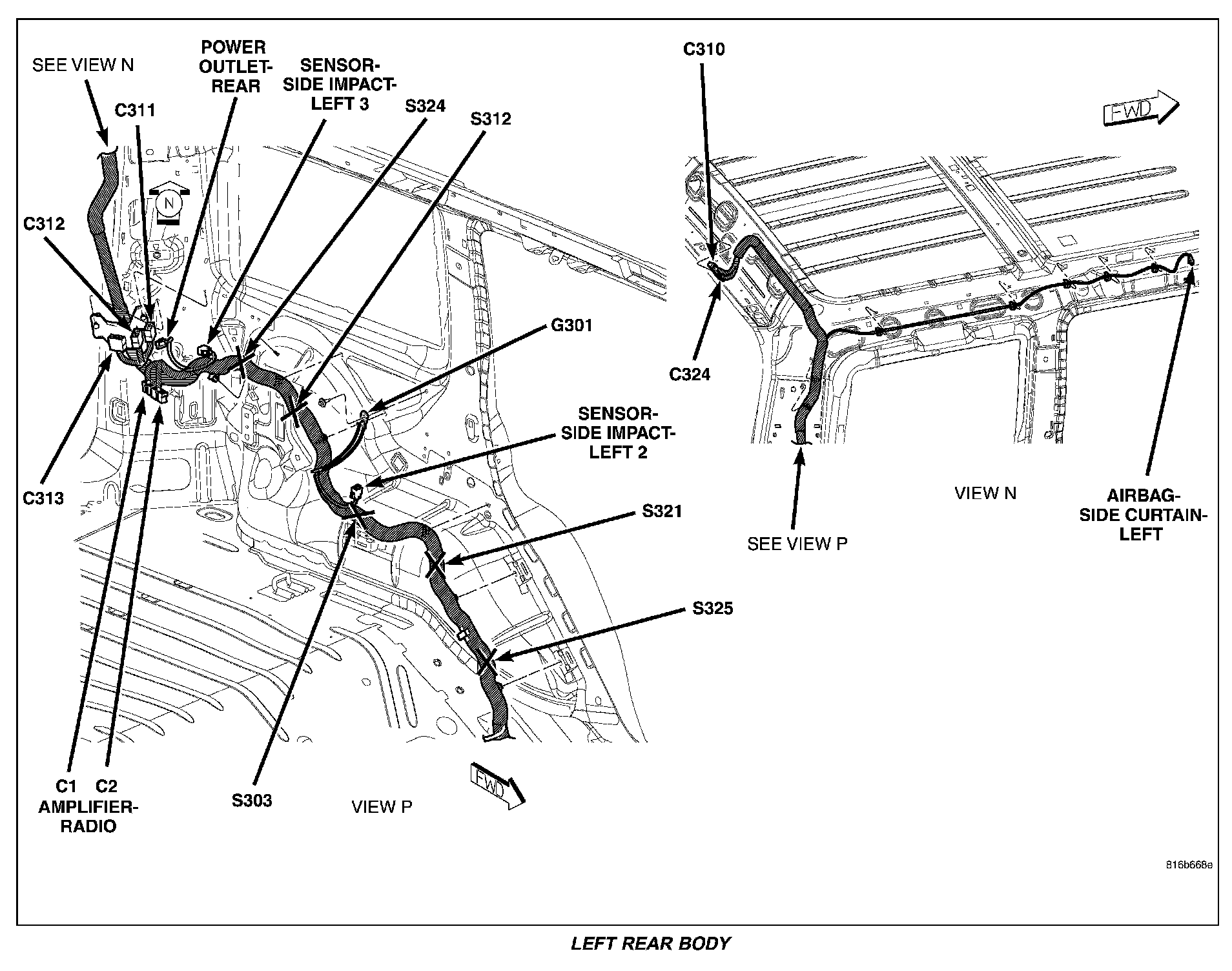

Left Rear Body:

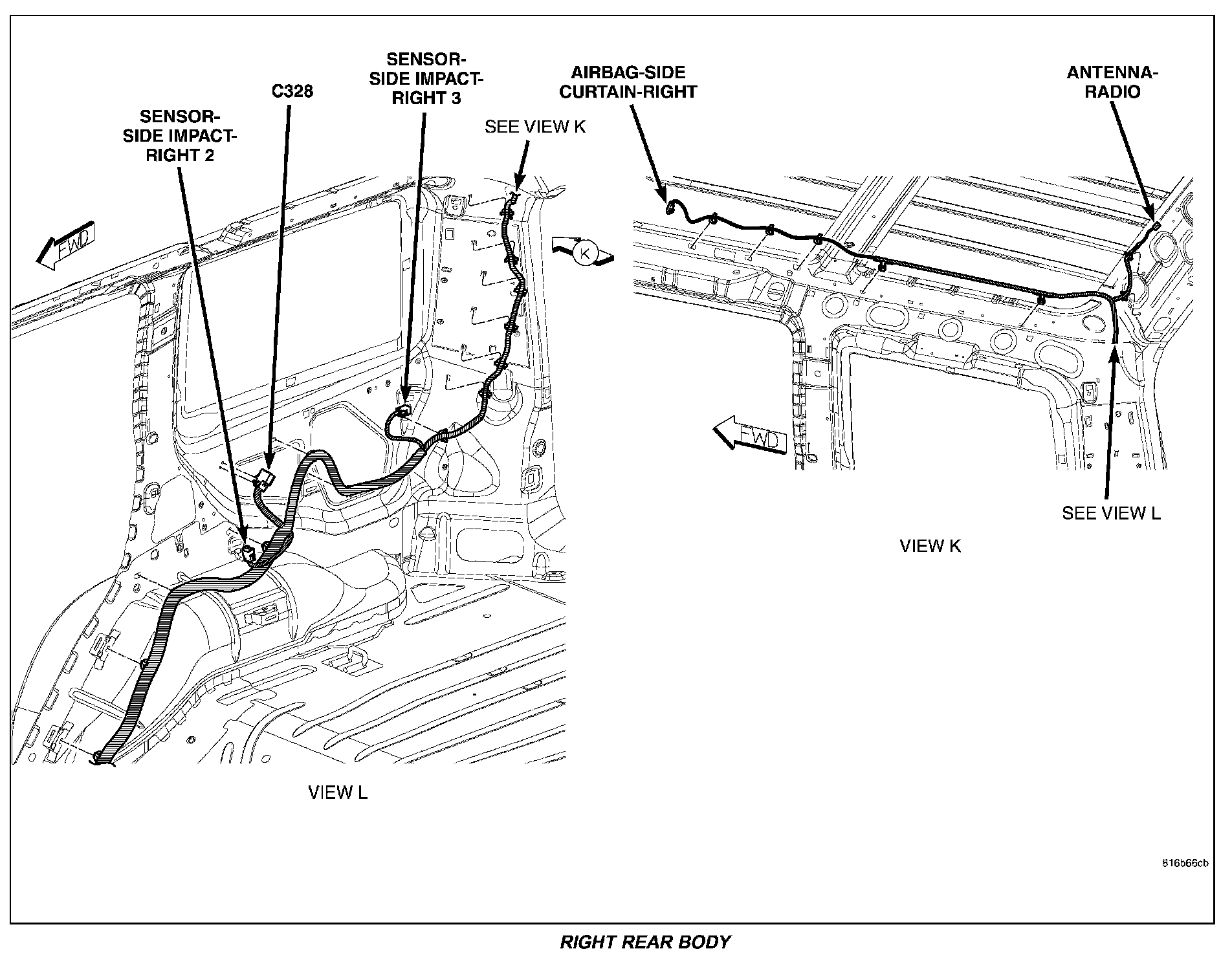

Right Rear Body:
