Splice Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

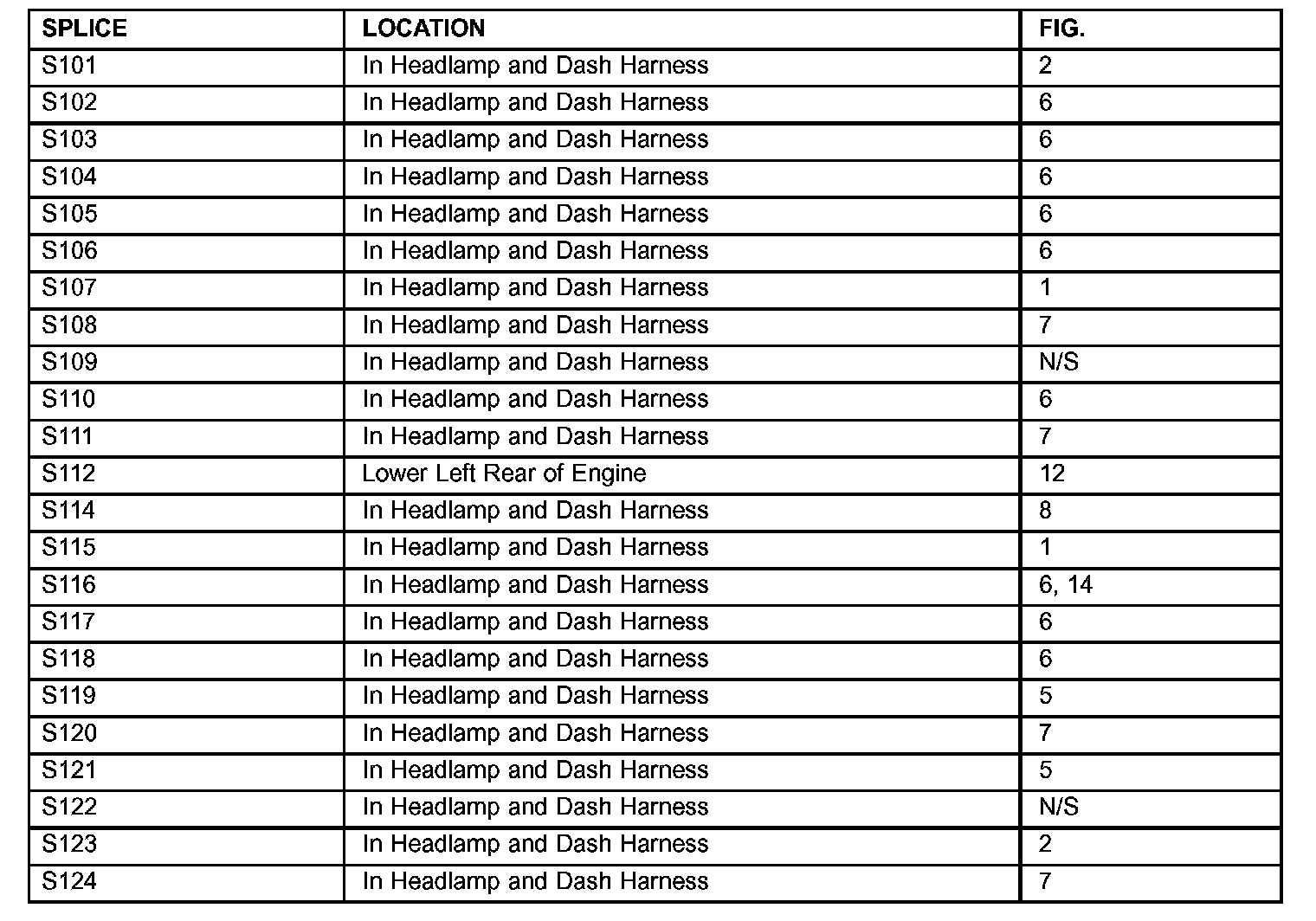

S101 - S124:

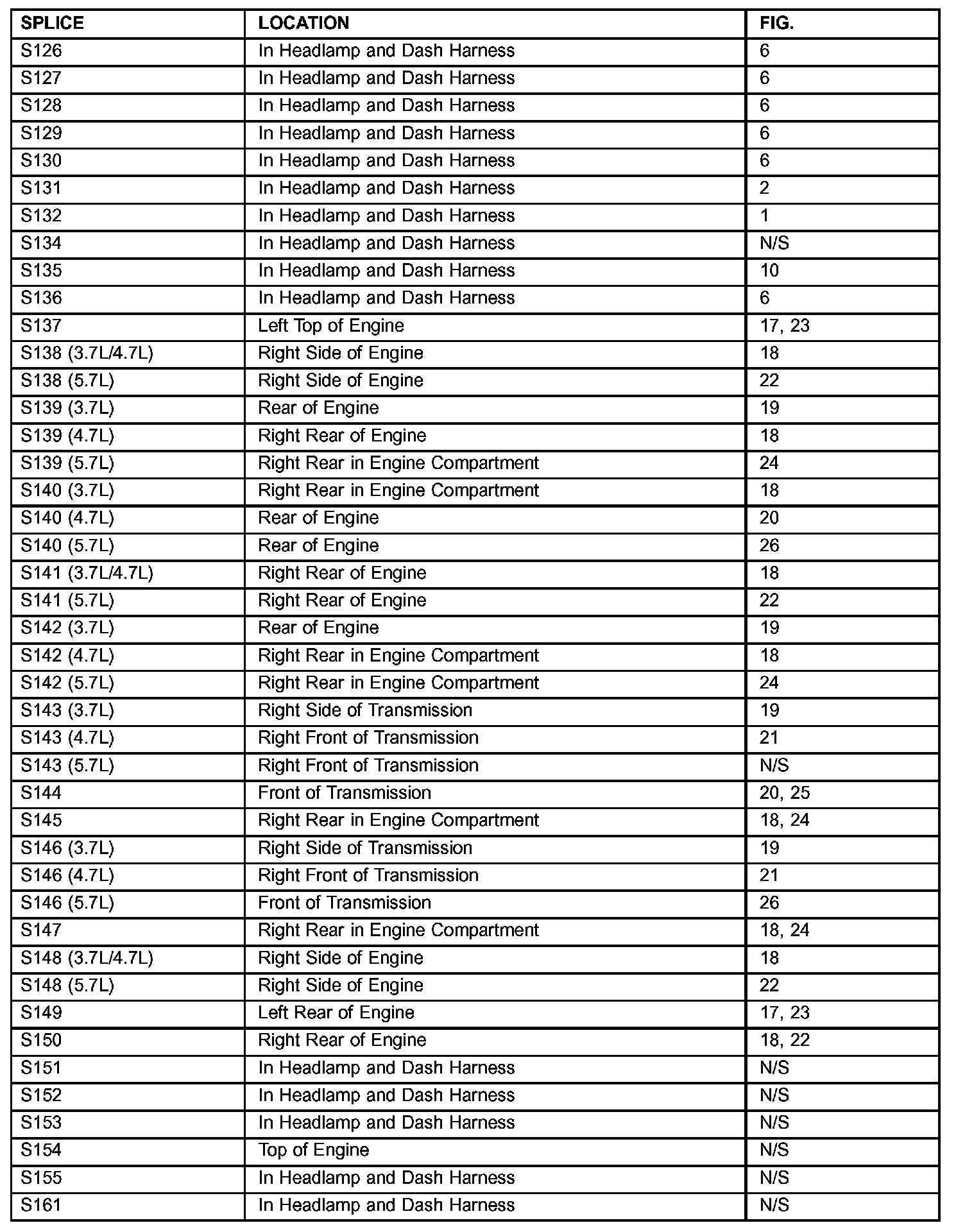

S126 - S161:

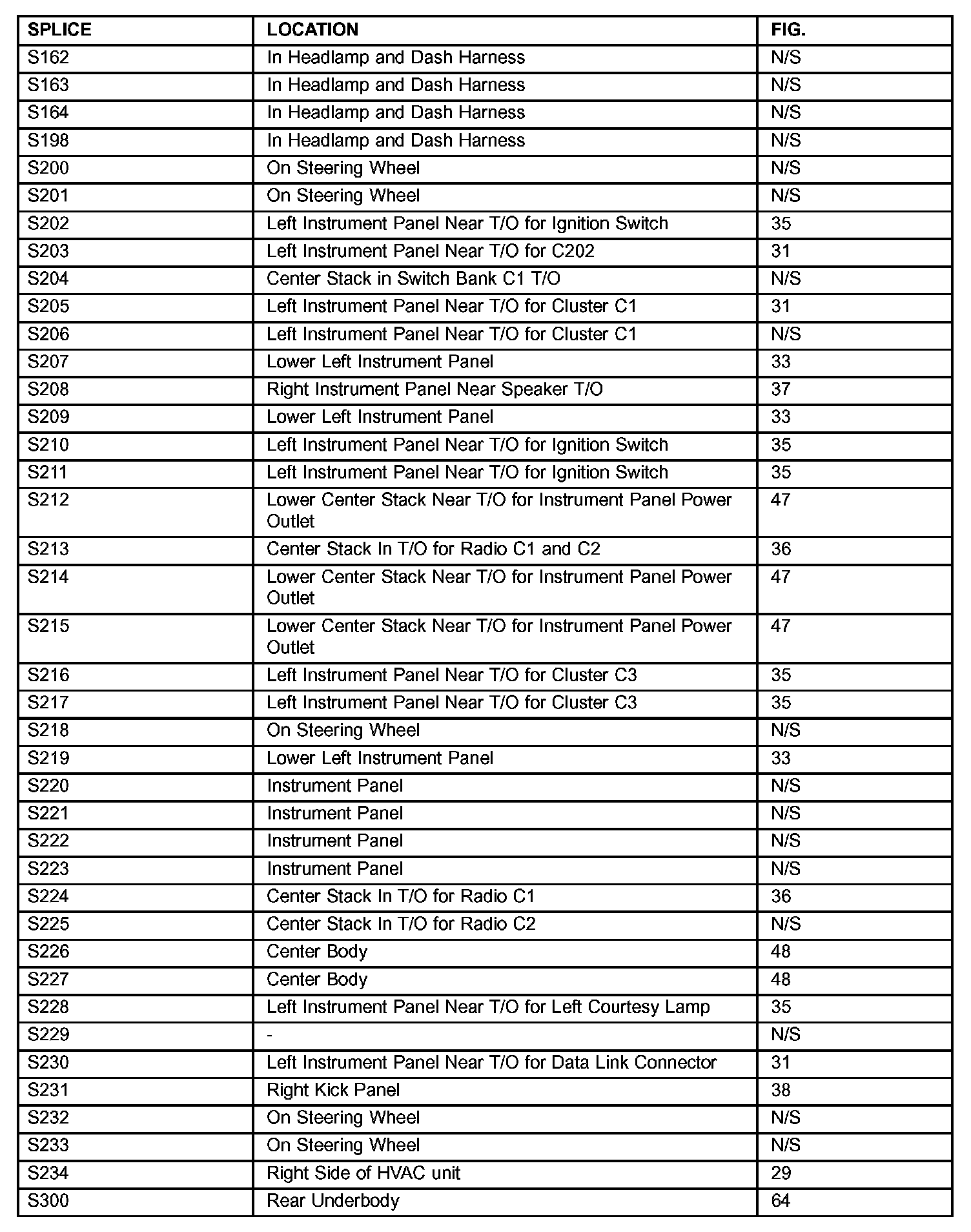

S162 - S300:

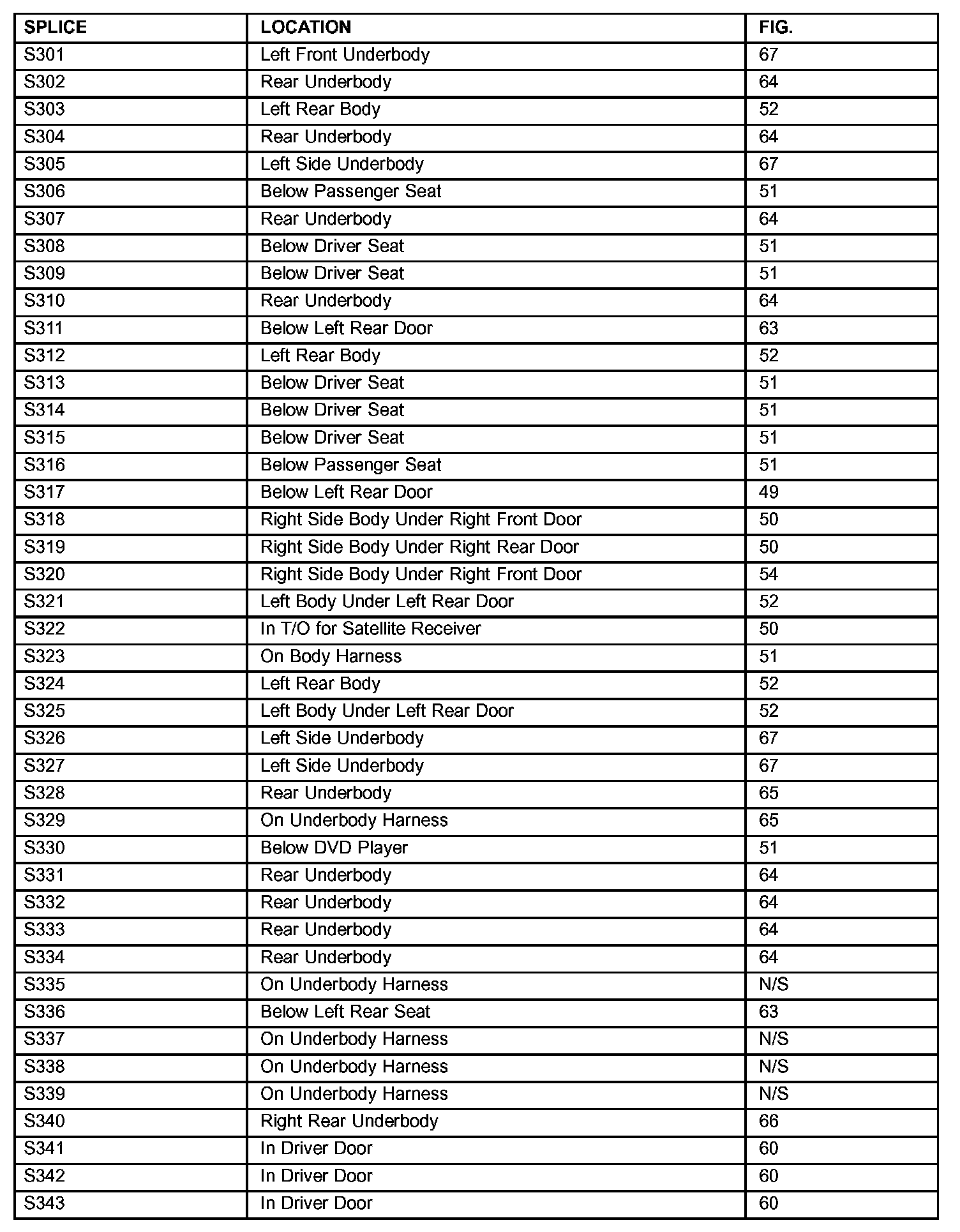

S301 - S343:

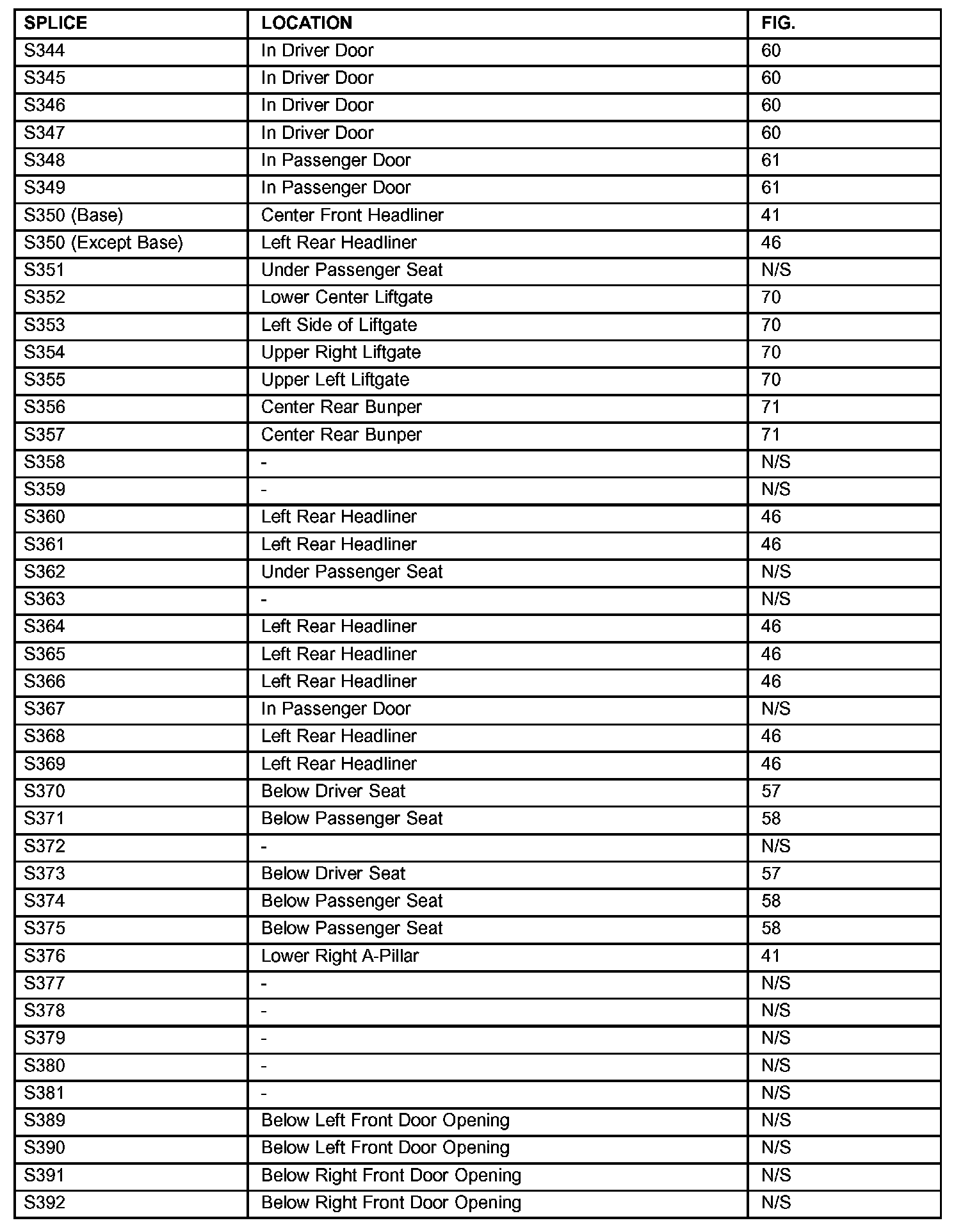

S344 - S392:

S393 - S397:
