Sensor-Rear Wheel Speed: Installation

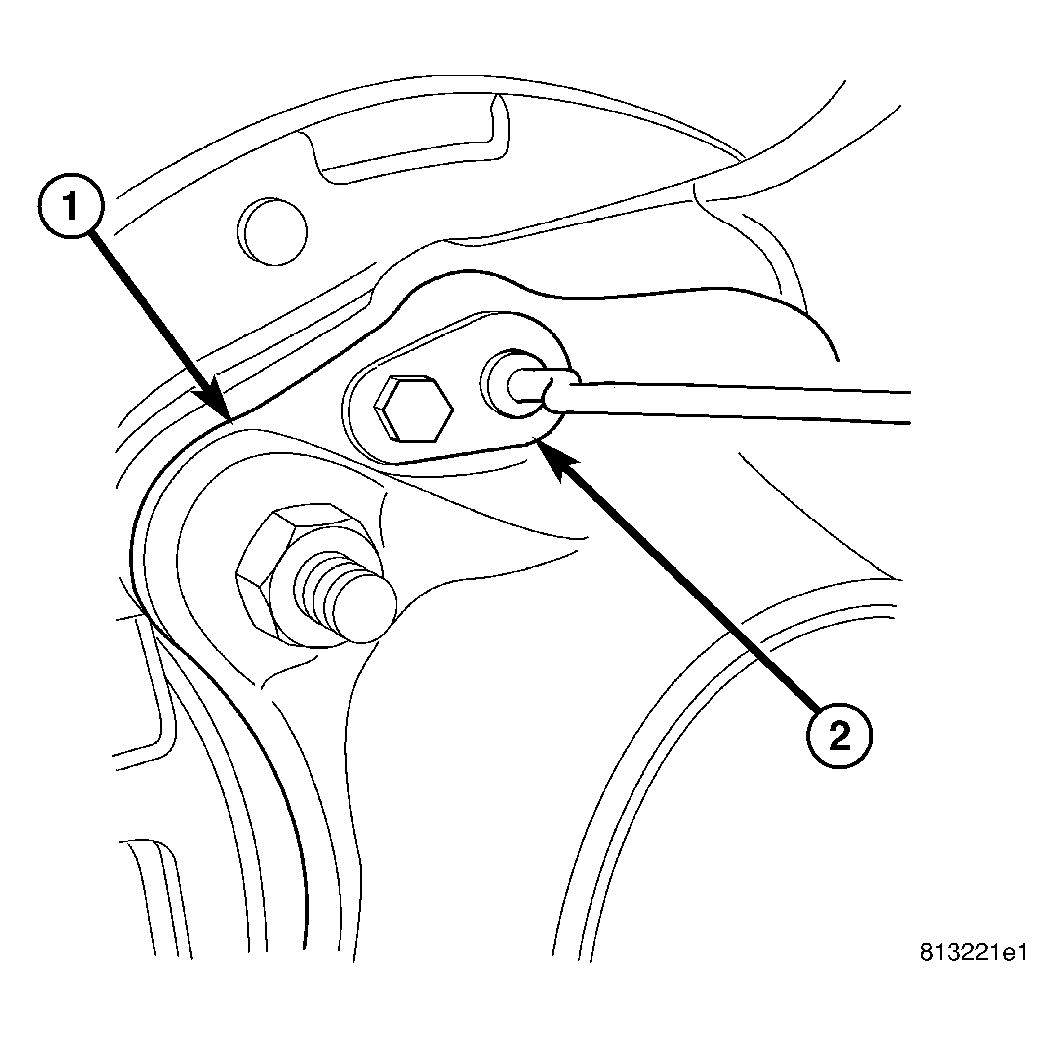

Fig 1: Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

Tighten the wheel speed sensor bolt (2) to 12-14 N.m (106-124 in. lbs.).

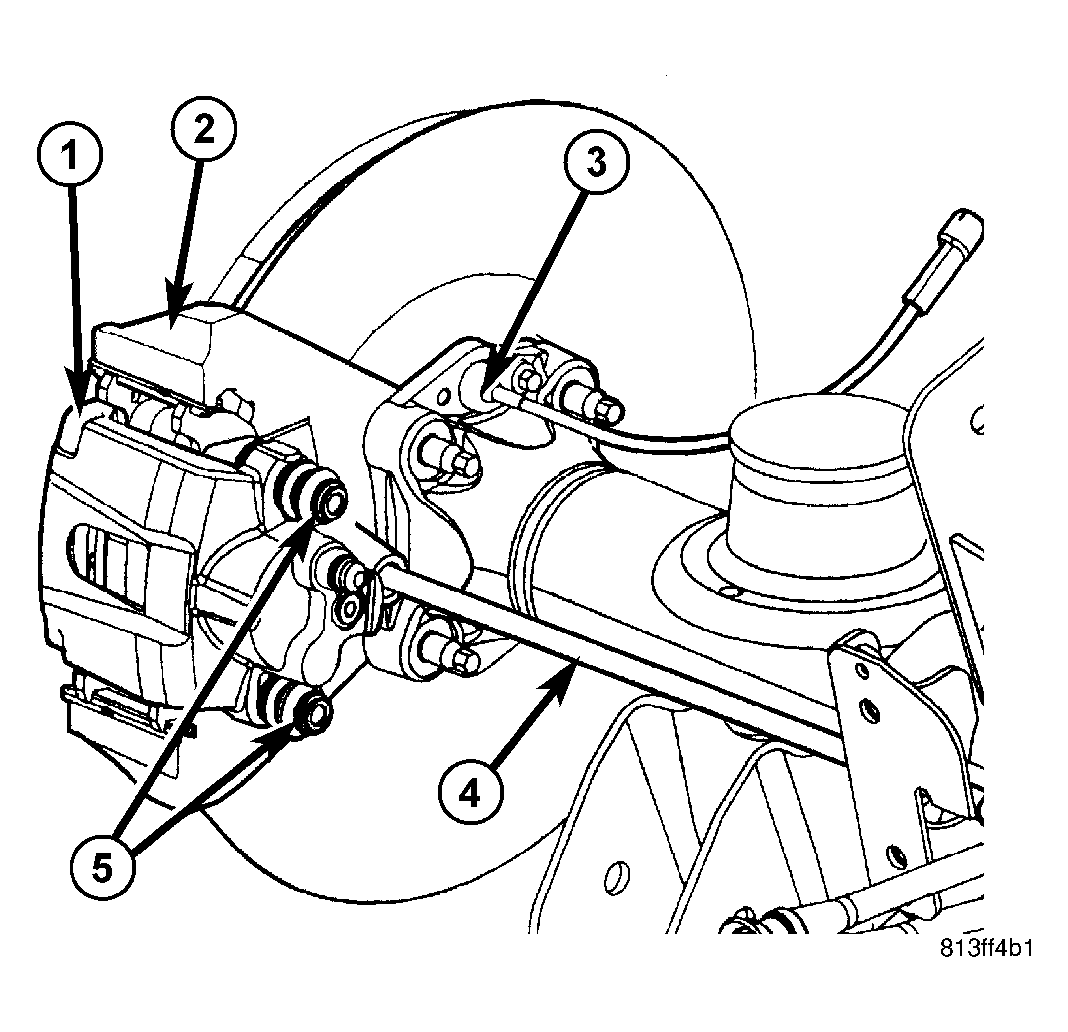

Fig 2: Wheel Speed Sensor, Caliper & Mounting Bolts - Rear

Courtesy of DAIMLERCHRYSLER CORP.

1 - CALIPER

2 - CALIPER ADAPTER

3 - WHEEL SPEED SENSOR

4 - PARK BRAKE CABLE

5 - CALIPER SLIDE BOLTS

Secure the wheel speed sensor wire (3) to the routing clips. Verify that the sensor wire is secure and clear of the rotating components.
Reconnect the wheel speed sensor electrical connector (3).
Lower the vehicle.
