Control Module, Transfer Case

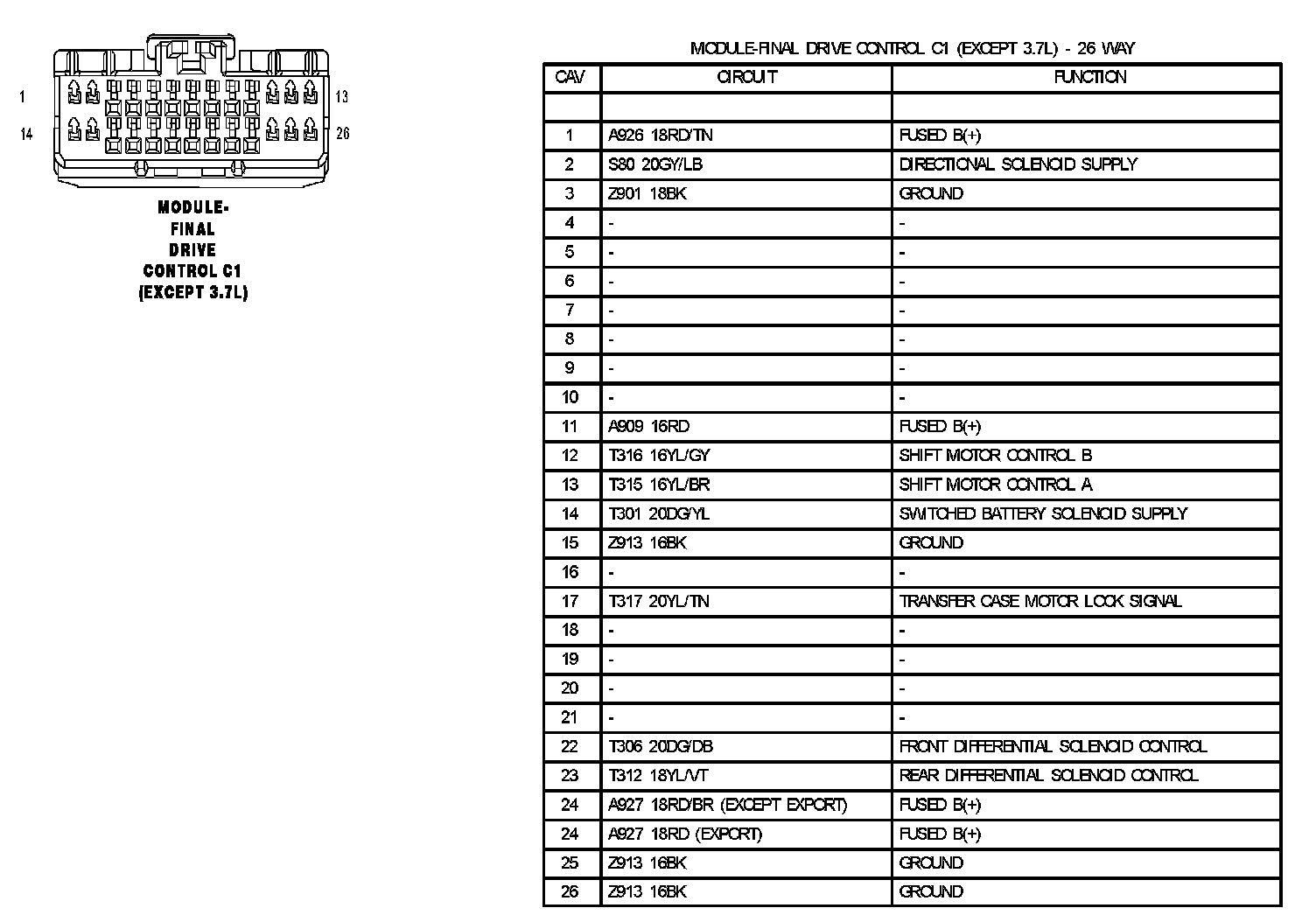

Module Final Drive Control C1 (Except 3.7L):

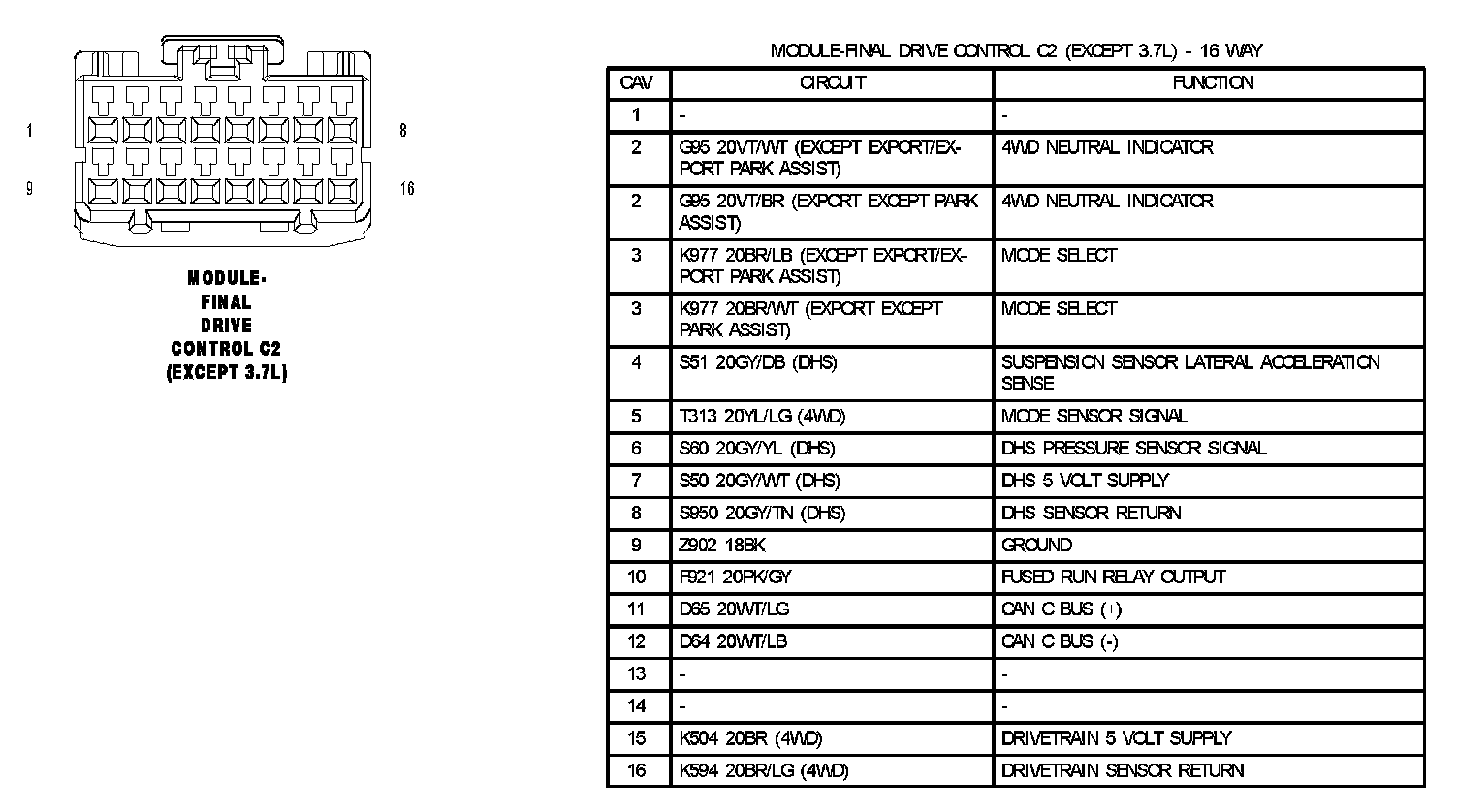

Module Final Drive Control C2 (Except 3.7L):
