Radiator Cooling Fan Control Module: Locations

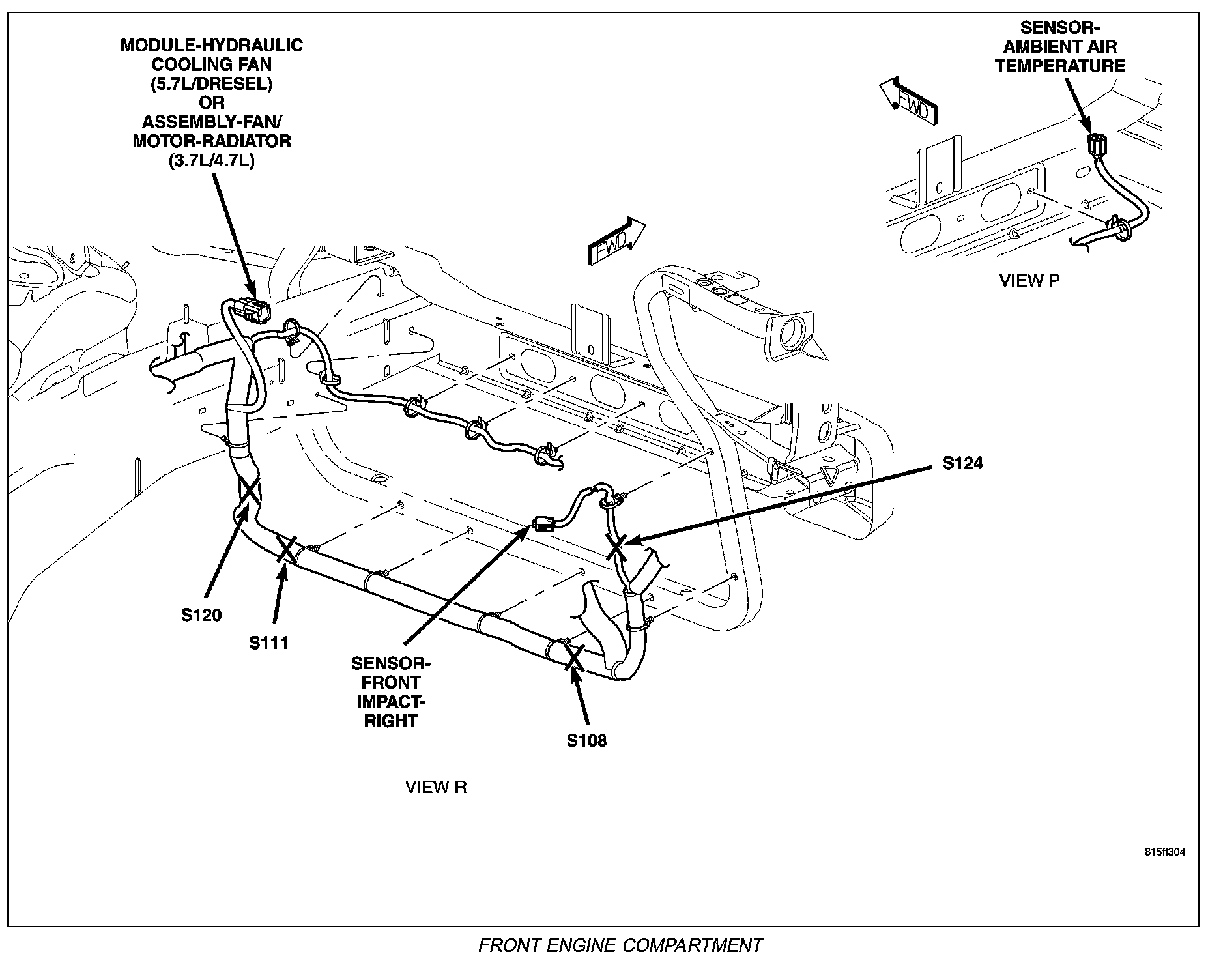

Front Engine Compartment:

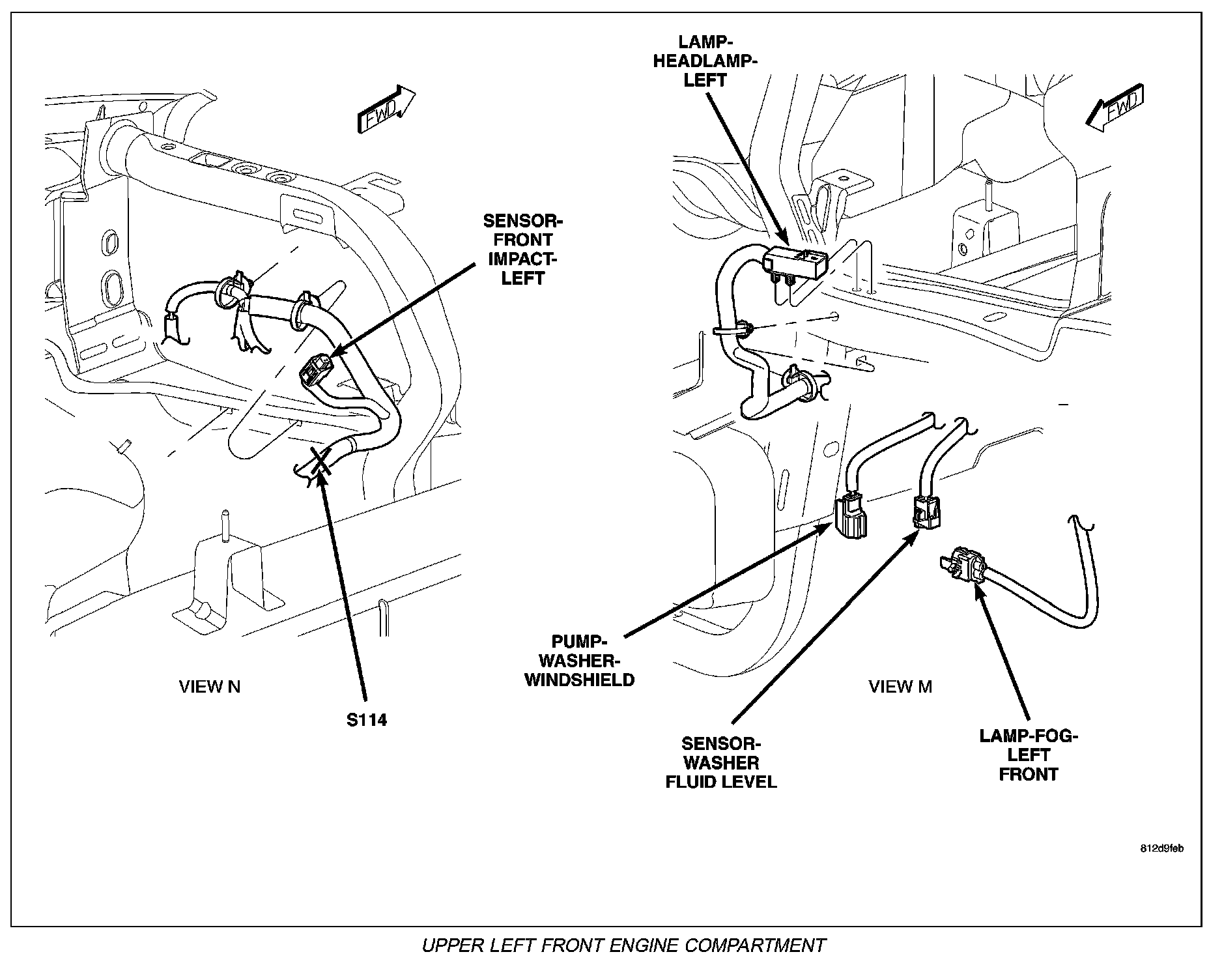

Upper Left Front Engine Compartment:
Right Side Body:

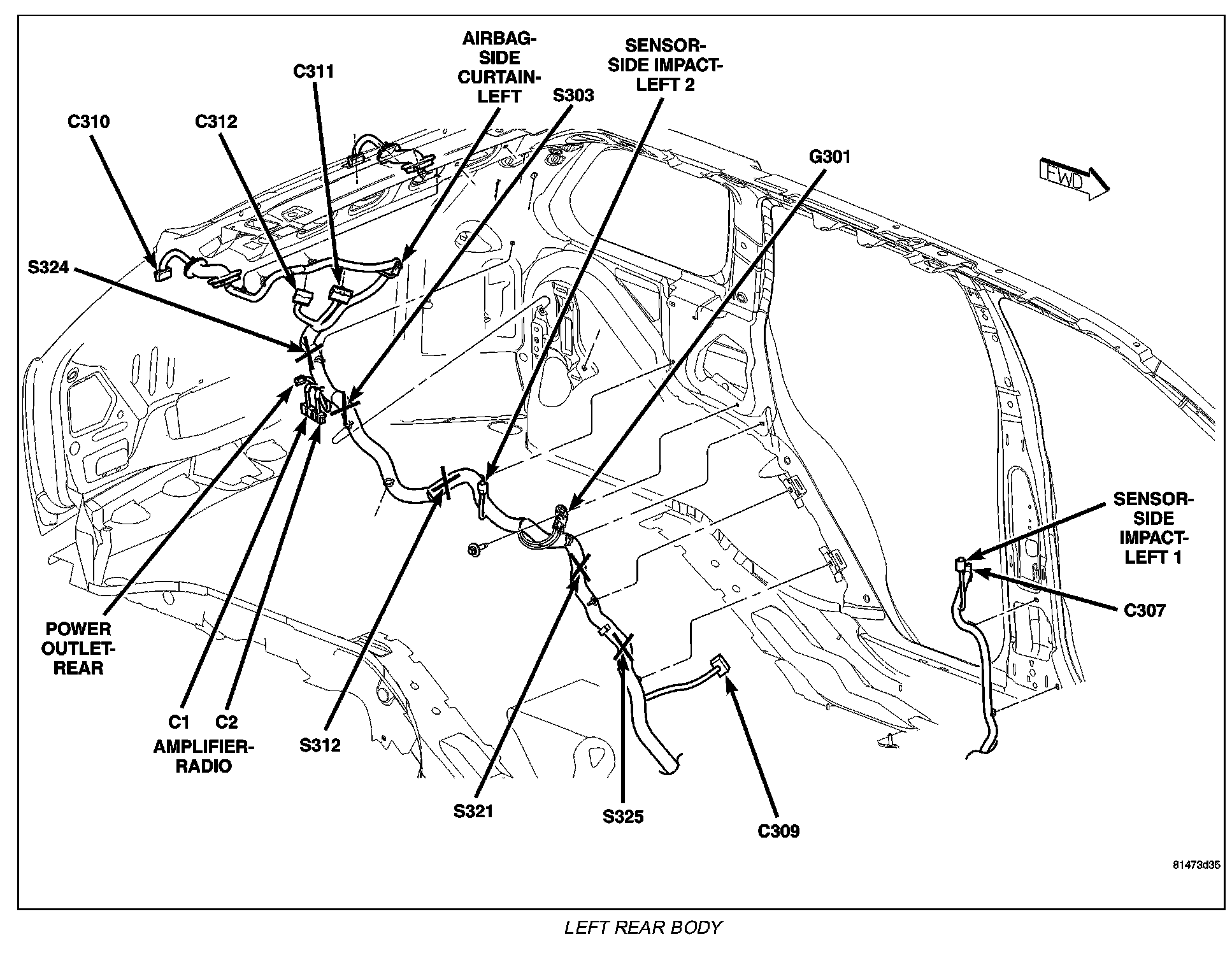

Left Rear Body:

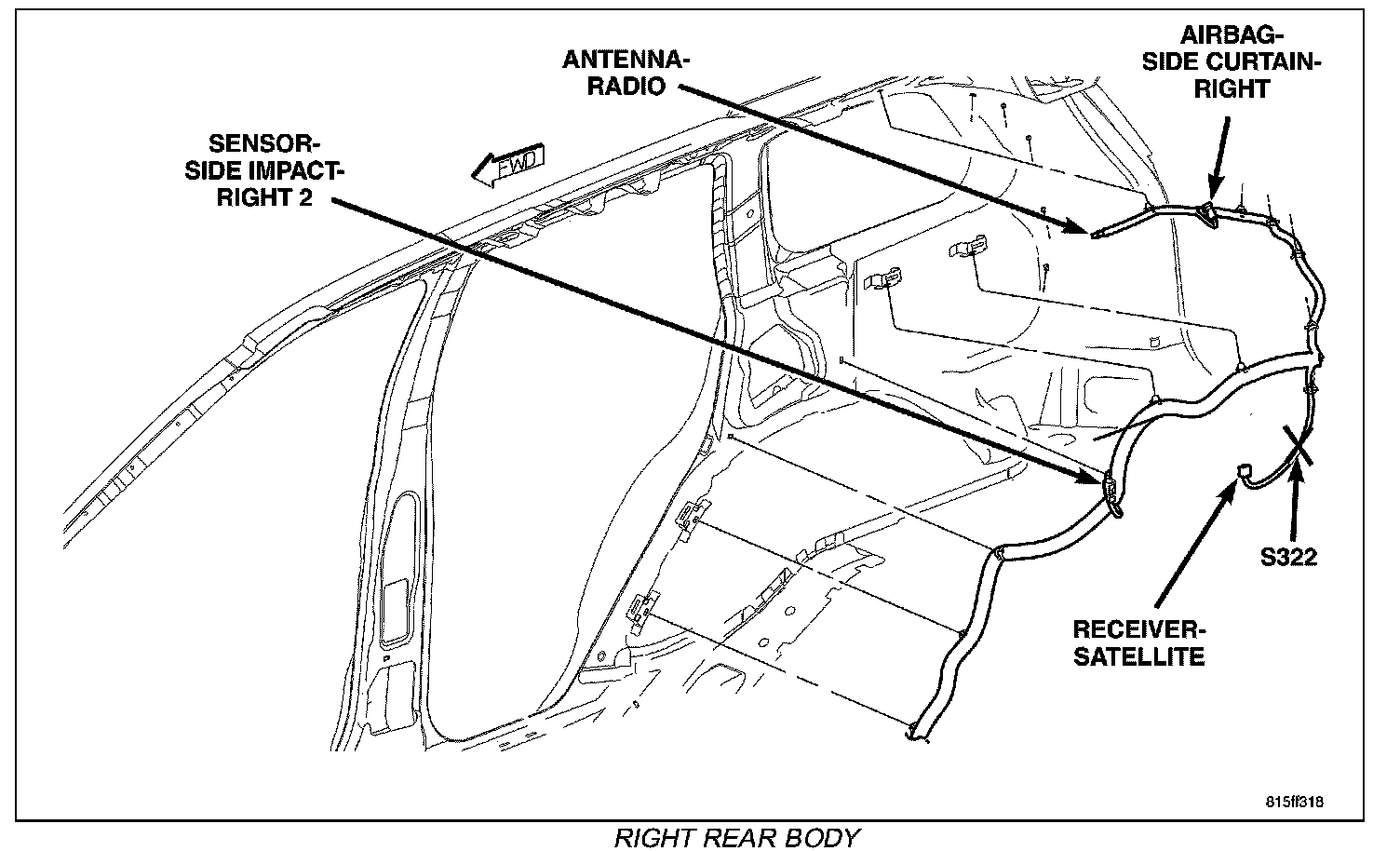

Right Rear Body:
