Window Switch: Installation: Front

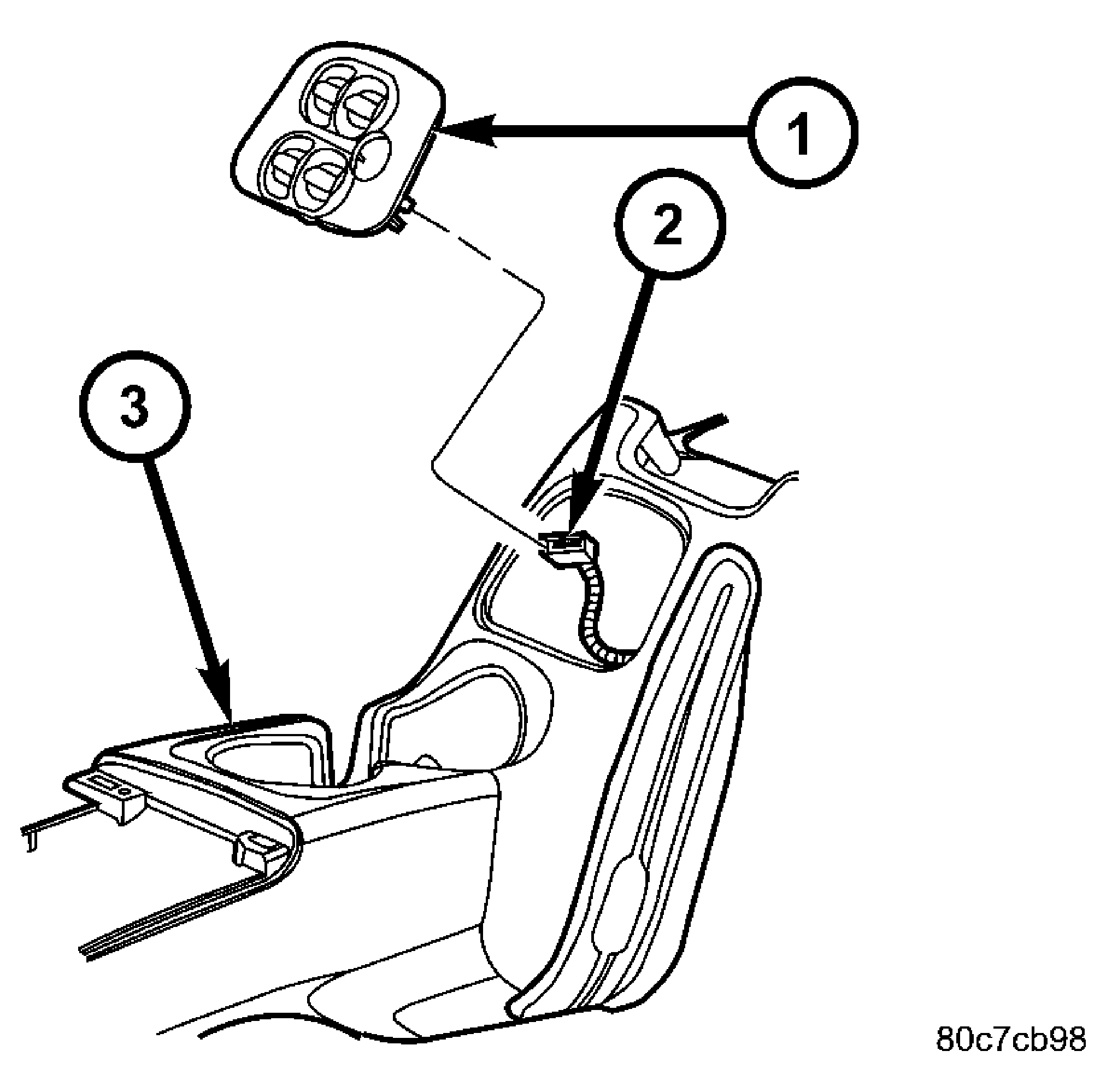

Fig 1: Front Window Switch
GC0026573Courtesy of DAIMLERCHRYSLER CORP.
  1. Connect electrical harness connector (2) to switch (1).
  2. Install switch to shifter bezel. Install and tighten mounting fasteners.
  3. Install shifter bezel.
  4. Connect battery negative cable.
