Relay-Auto Shut Down: Installation

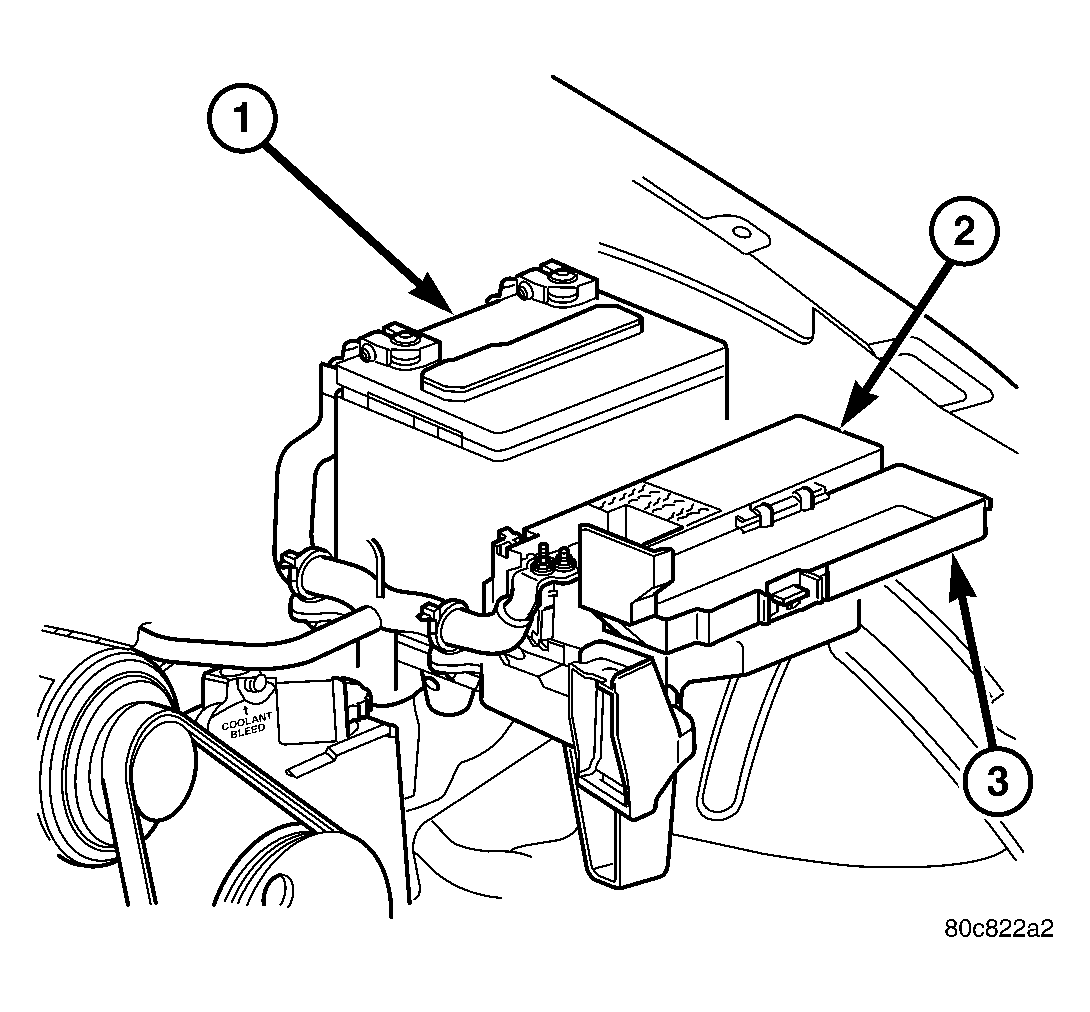

Fig 1: View Of Power Distribution Center (PDC)

Courtesy of DAIMLERCHRYSLER CORP.

The ASD relay is located in the Power Distribution Center (PDC) (2). Refer to label on PDC cover for relay location.

1. Install relay to PDC.
2. Install cover (3) to PDC.
