Ignition System: Sensor-Knock: Description

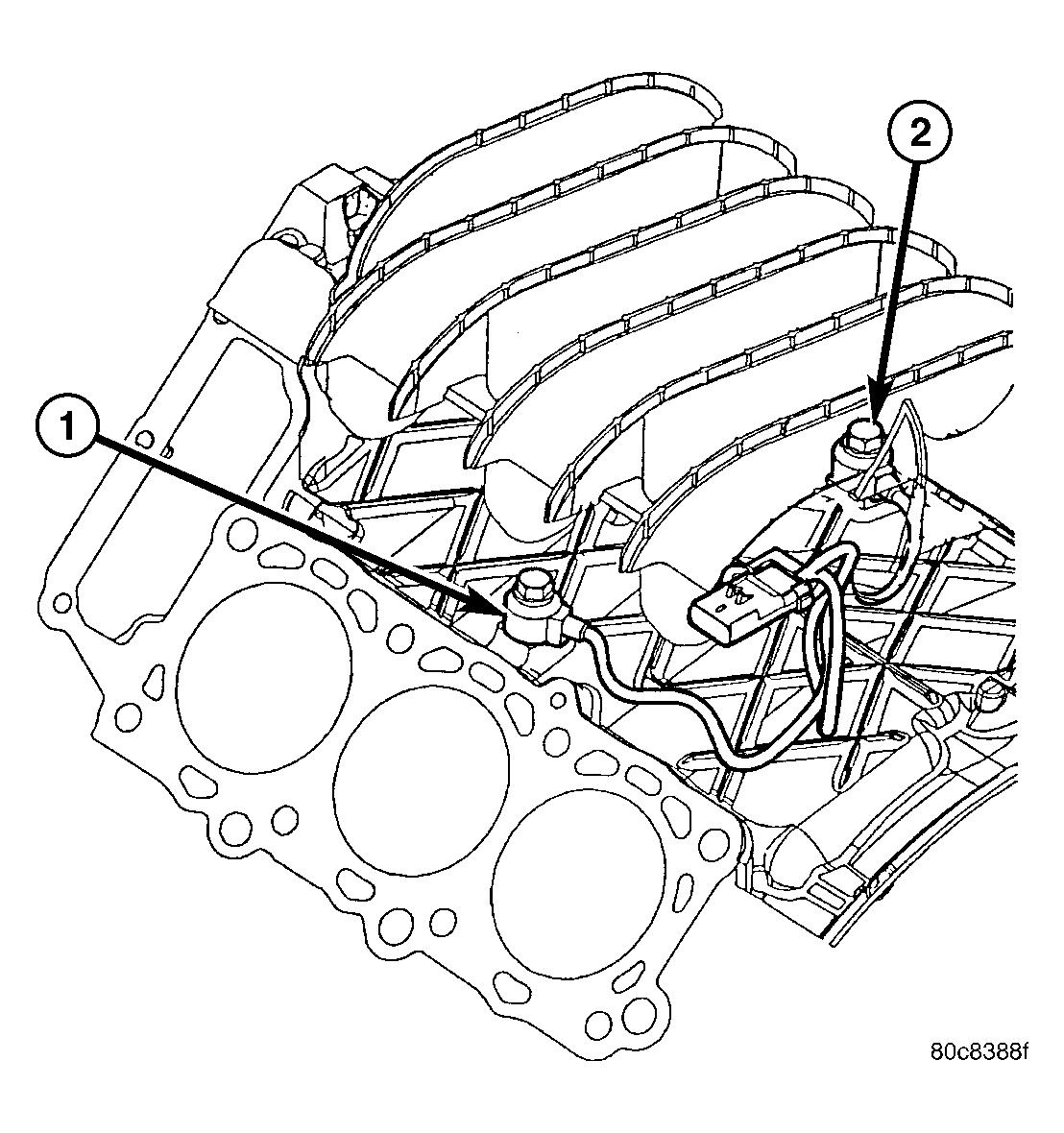

Fig 1: Knock Sensor Location

Courtesy of DAIMLERCHRYSLER CORP.

The two knock sensors (1) and (2) are bolted into the cylinder block under the intake manifold.
