Compressor Clutch Relay: Service and Repair

A/C CLUTCH RELAY

NOTE: Refer to the fuse and relay layout map on the inside of the power distribution center (PDC) cover for A/C clutch relay location.

REMOVAL
1. Disconnect and isolate the battery negative cable.

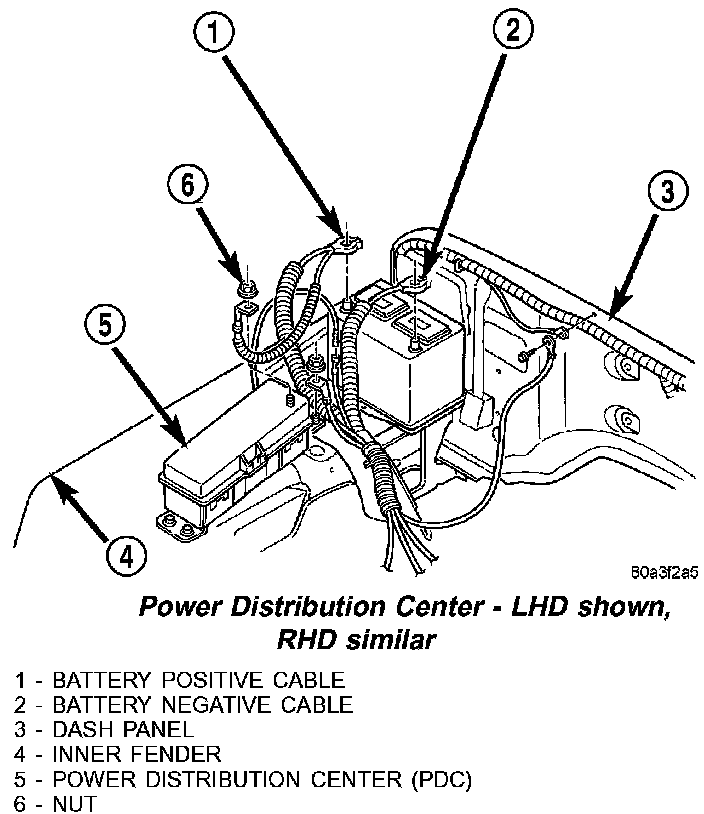

Power Distribution Center - LHD Shown, RHD Similar:

2. Remove the cover from the power distribution center (PDC) located in the engine compartment.
3. Remove the A/C clutch relay from the PDC.

INSTALLATION
1. Position the A/C clutch relay into the receptacle of the PDC.
2. Align the A/C clutch relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.
3. Close the cover of the PDC.
4. Reconnect the negative battery cable.
