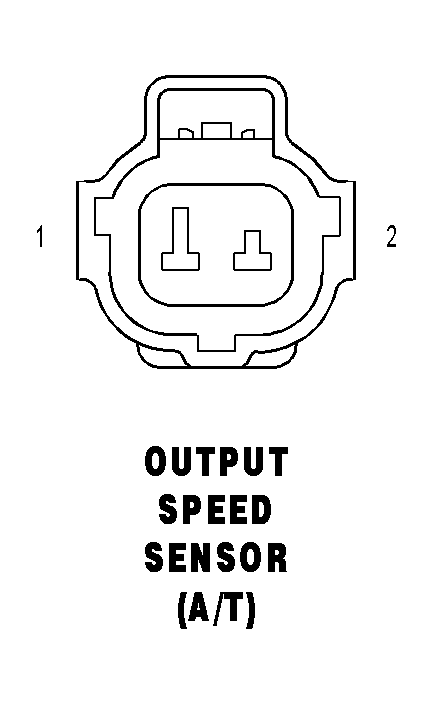

Output Speed Sensor (A/T) Connector End View
OUTPUT SPEED SENSOR (A/T) - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T14 18DG/BR |
OUTPUT SPEED SENSOR SIGNAL |
| 2 |
T13 18DG/VT |
SPEED SENSOR GROUND |
