Base Audio System

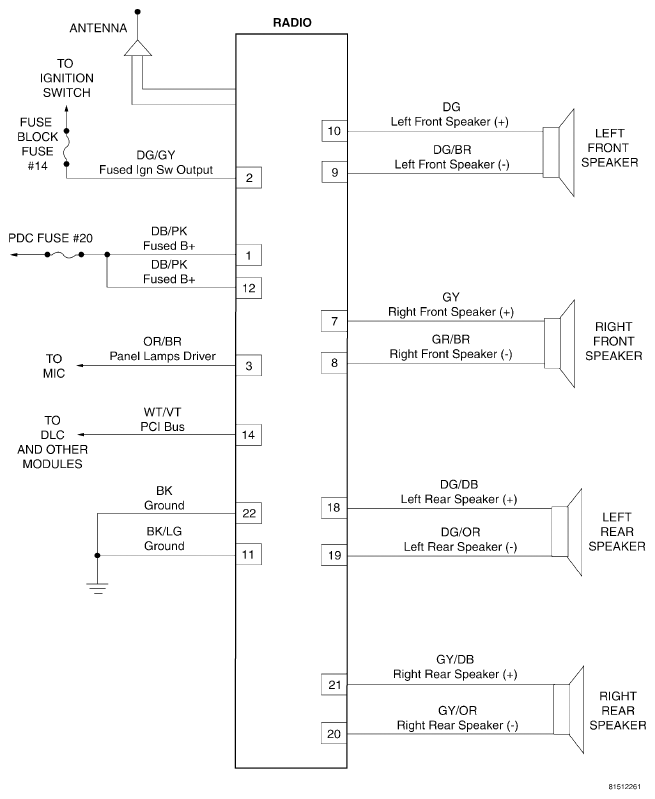

Fig 1: Base Audio System - Schematic Diagrams
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
