PDC B(+) Terminal Module Removal

Remove the PDC housing lower cover.

From the top of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches that secure the B(+) terminal module in the PDC. See Fig 1.

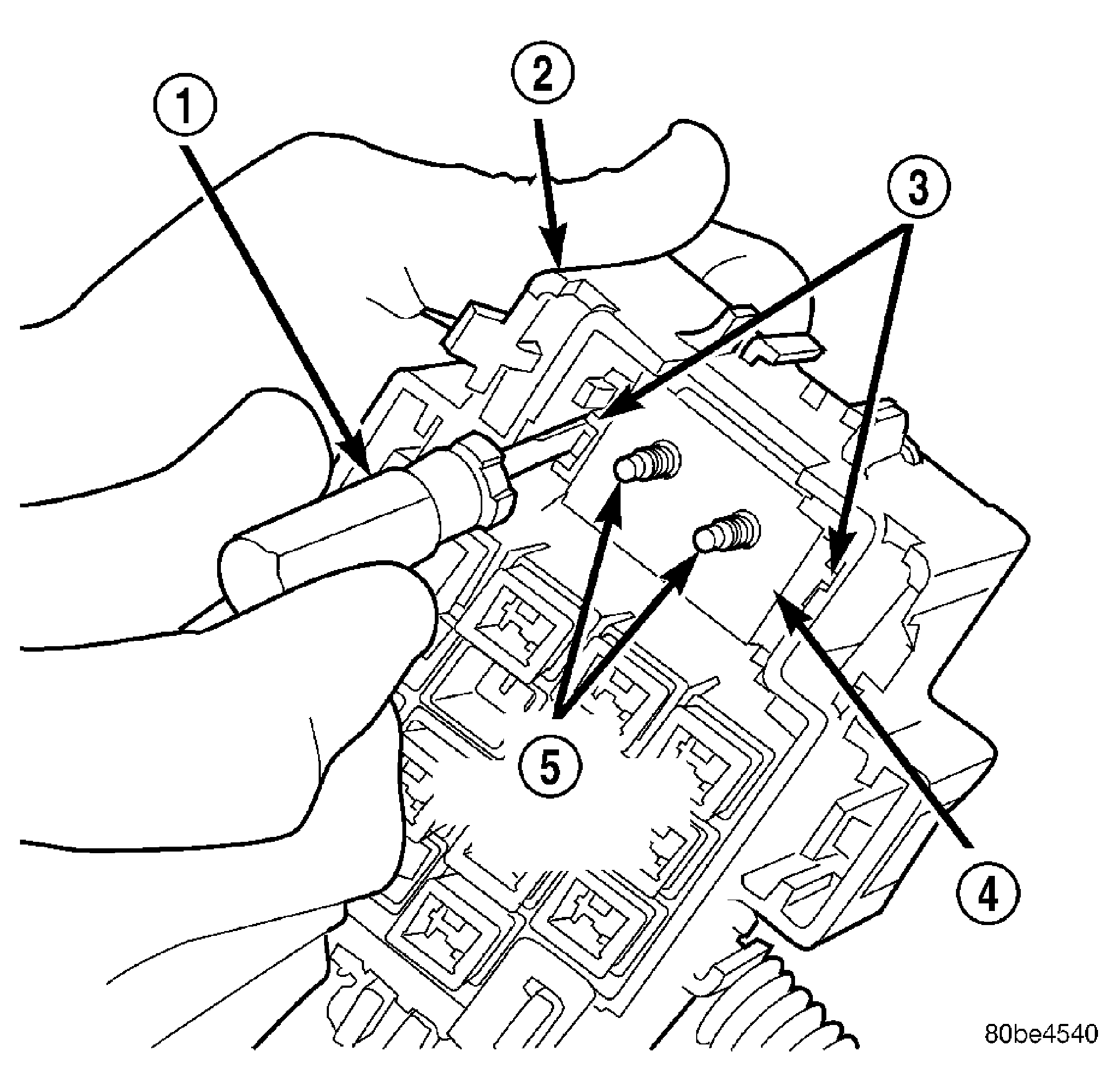

Fig 1: PDC B(+) Terminal Module Latches

Courtesy of DAIMLERCHRYSLER CORP.

1 - FROM SPECIAL TOOL KIT 6680

2 - PDC HOUSING

3 - LATCHES

4 - BUS BAR

5 - B+ TERMINAL STUDS

Gently and evenly press the two B(+) terminal studs down through the bus bar in the PDC.
From the bottom of the PDC housing, remove the B(+) terminal module from the PDC. See Fig 2.

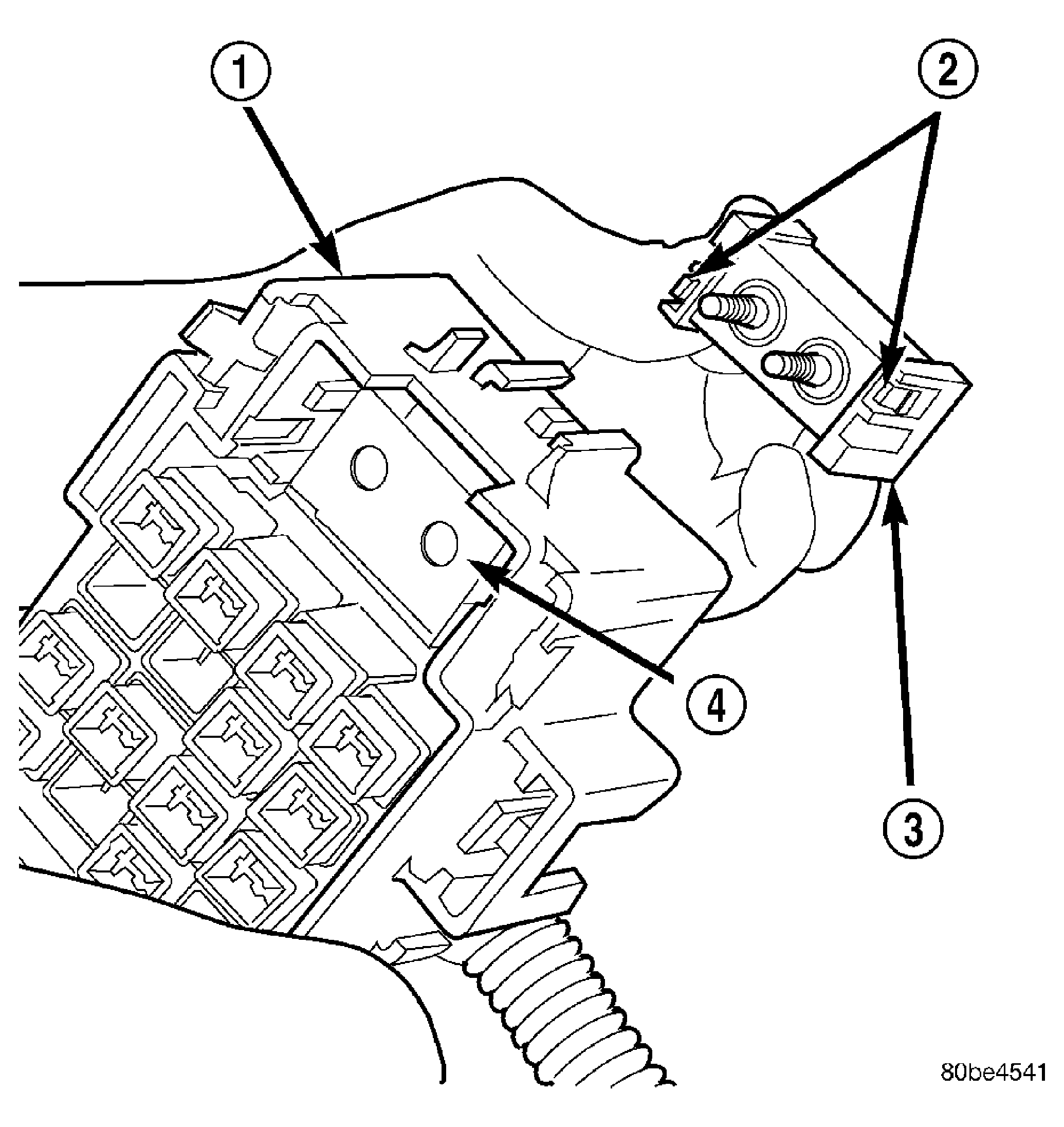

Fig 2: PDC B(+) Terminal Module Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - PDC HOUSING

2 - LATCHES

3 - B(+) TERMINAL MODULE

4 - BUS BAR
