Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

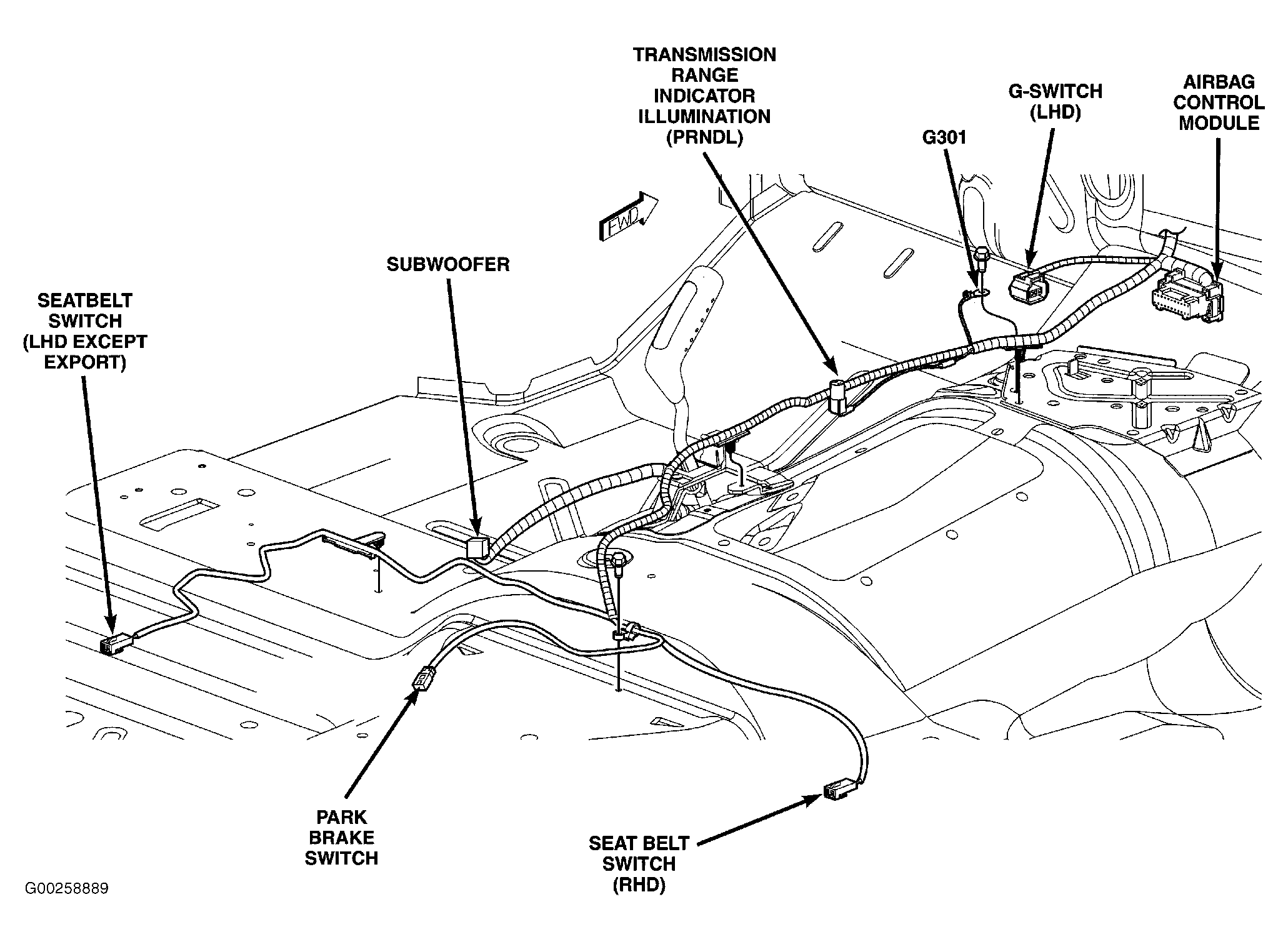

| Airbag Control Module | Front of floorpan tunnel. See Figure . |

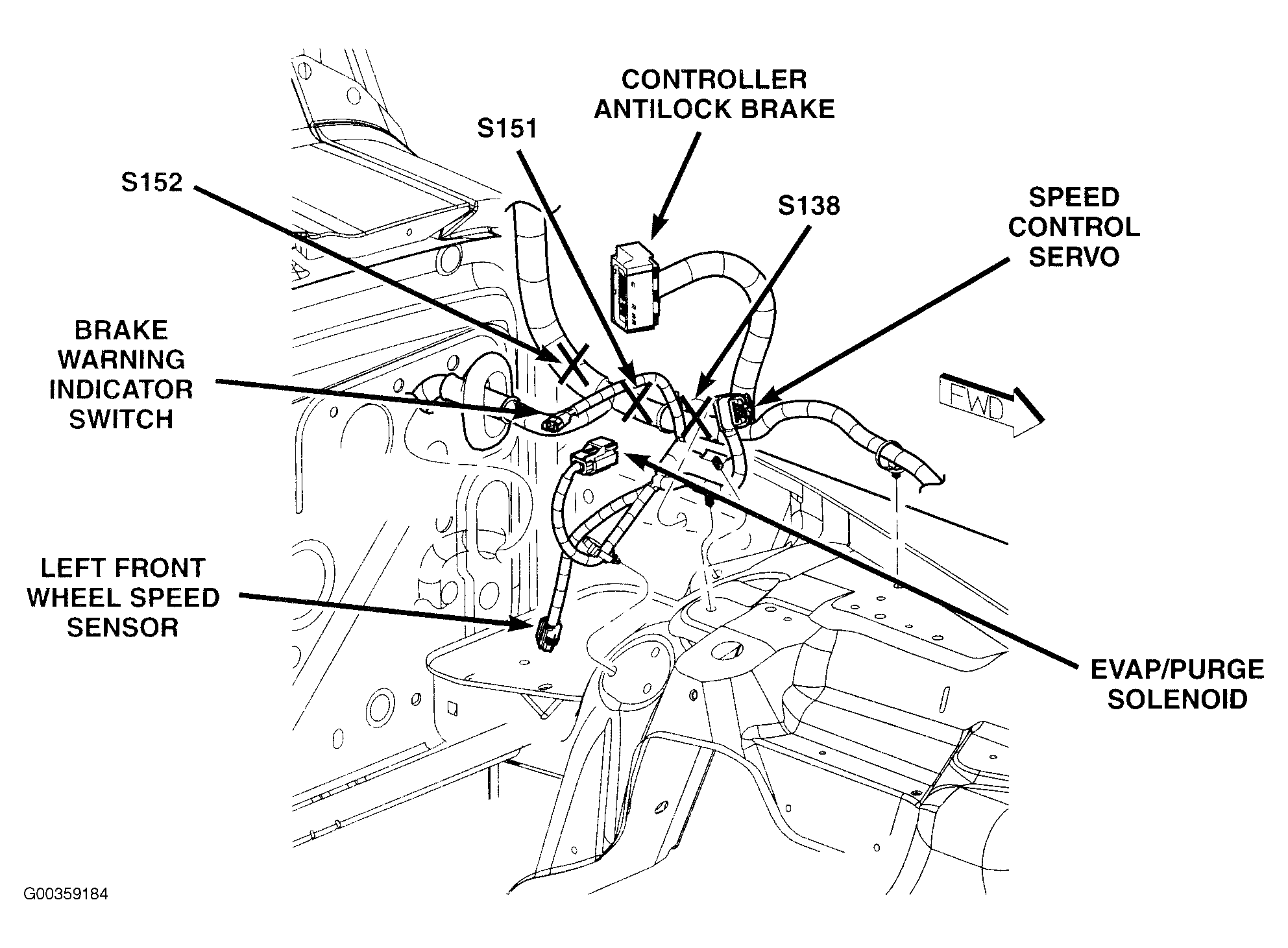

| Controller Anti-Lock Brake | At left rear corner of engine compartment. See Figure . |

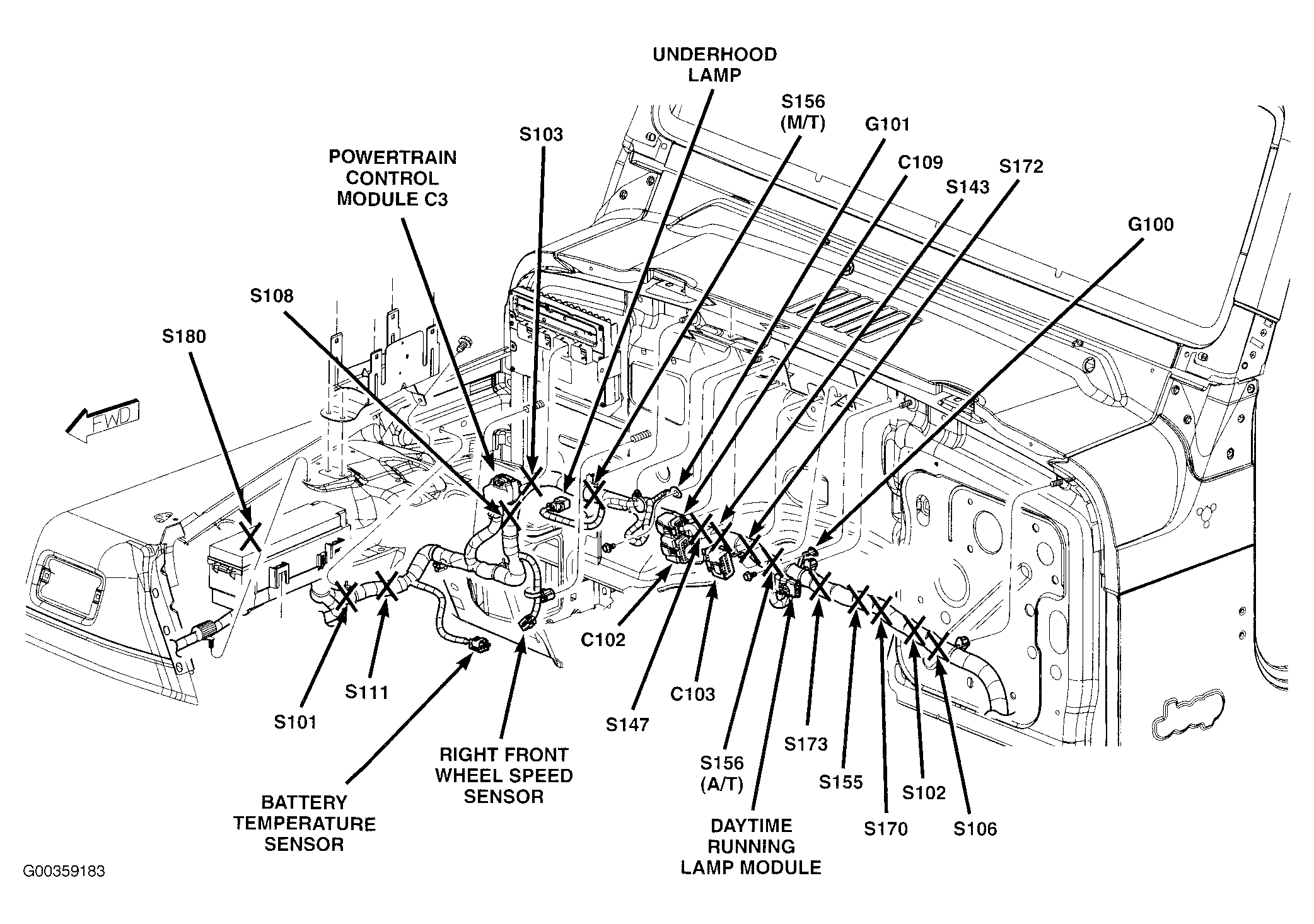

| Daytime Running Lamp Module | Left side of engine compartment. See Figure . |
| Powertrain Control Module | Right rear of engine compartment. See Figure . |

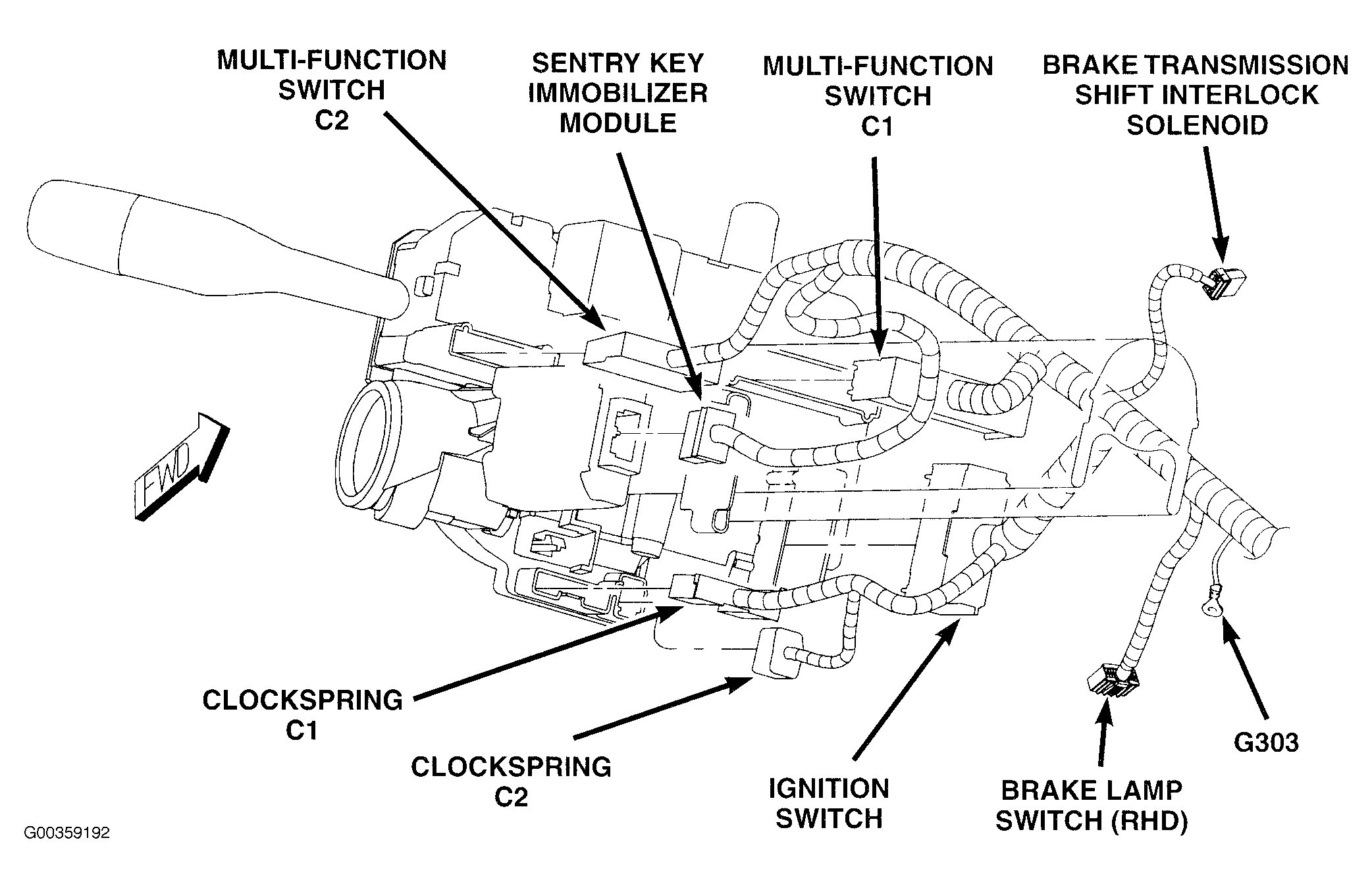

| Sentry Key Immobilizer Module | On steering column, near ignition lock cylinder. See Figure . |
