Lower Control Arm: Removal

Raise and support the vehicle.
If equipped with ABS brakes remove sensor wire from the inboard side of the arm.

If the vehicle is equipped with a cam bolt service package paint or scribe alignment marks on the cam adjusters and suspension arm for installation reference. See Fig 1 .

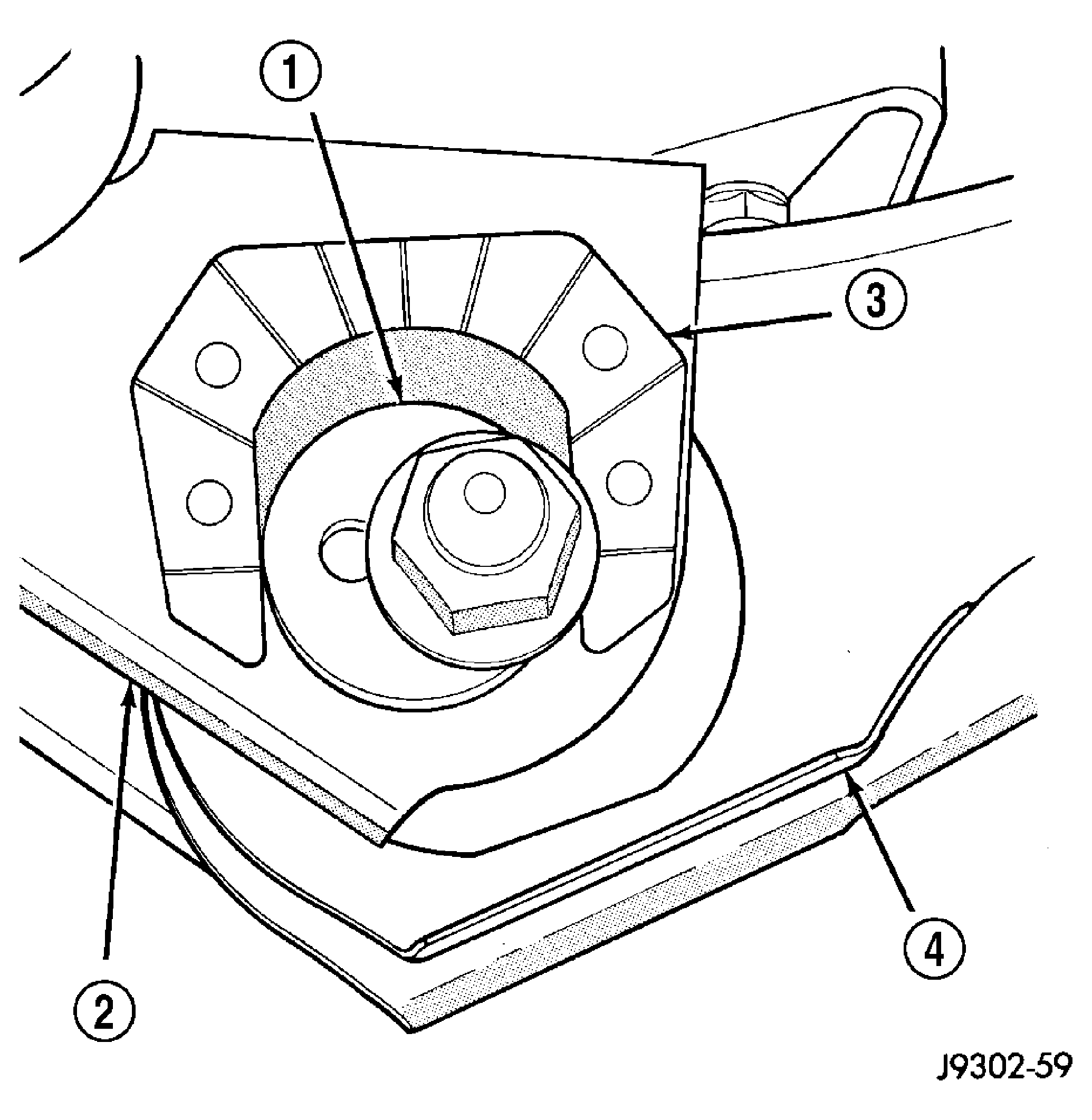

Fig 1: Cam Bolt Service Package

Courtesy of DAIMLERCHRYSLER CORP.

1 - ADJUSTMENT CAM

2 - AXLE BRACKET

3 - BRACKET REINFORCEMENT

4 - LOWER SUSPENSION ARM

Remove the lower suspension arm nut and bolt from the axle. See Fig 2.
Remove the nut and bolt/cam bolt from the frame rail bracket and remove the lower suspension arm. See Fig 2.

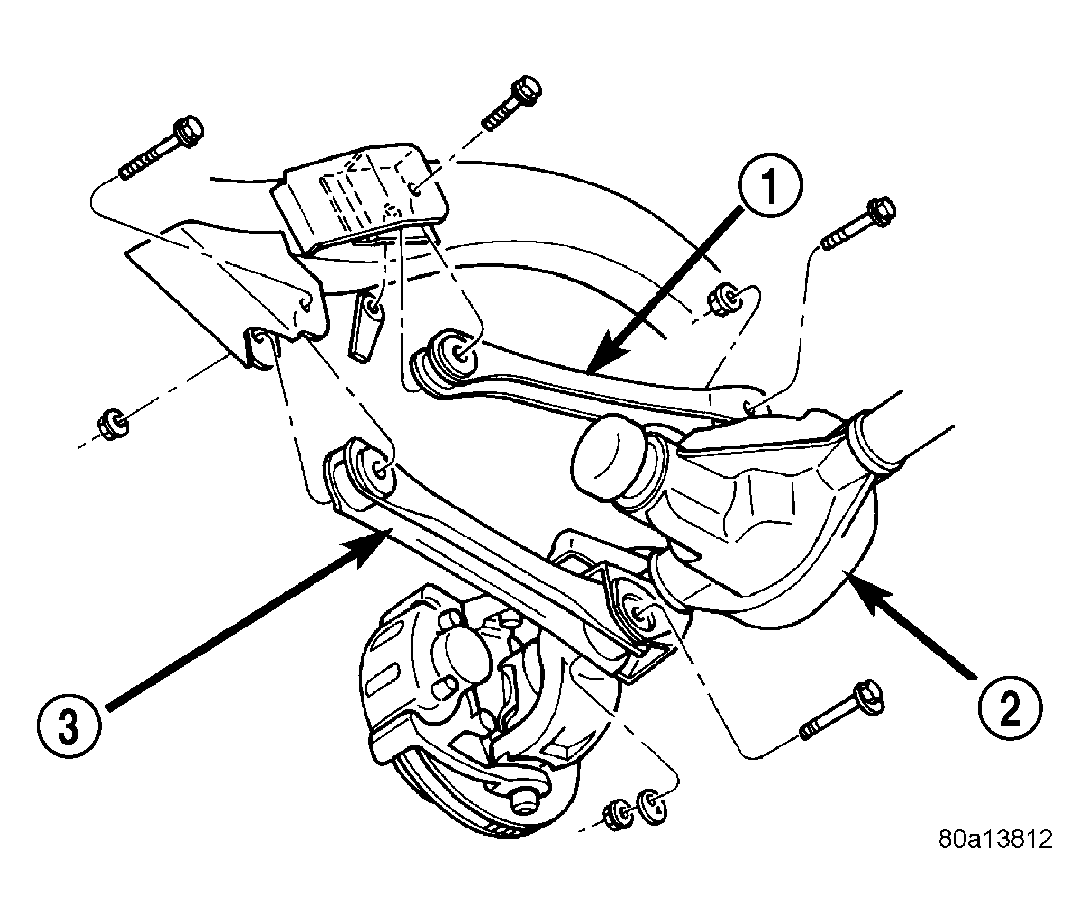

Fig 2: Upper & Lower Suspension Arms

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER SUSPENSION ARM

2 - FRONT AXLE

3 - LOWER SUSPENSION ARM
