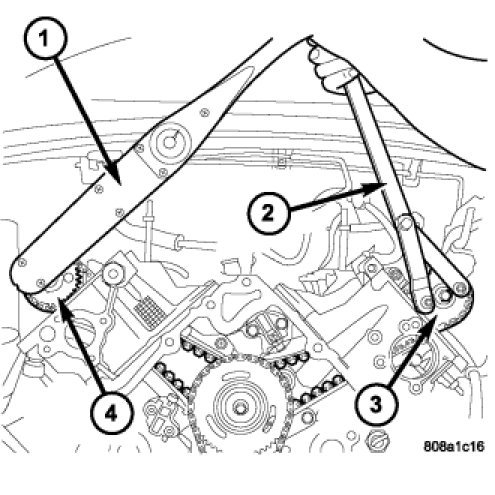

Timing Component Alignment Marks: Locations

primary chain idler sprocket dot is at 12 o'clock.
primary chain crankshaft sprocket dot is at 6 o'clock.
secondary chain camshaft sprockets "V8" marks are at 12 o'clock.
