Removal






REMOVAL





1. Disconnect and isolate the negative battery cable.

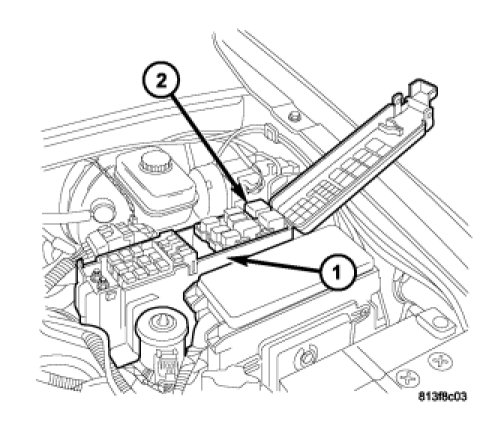

2. Open the cover of the power distribution center (PDC) (1) located in the engine compartment.

NOTE: Refer to the fuse and relay layout map on the inside of the PDC cover for front blower motor relay location.

3. Remove the front blower motor relay (2) from the PDC.
