Installation

INSTALLATION





NOTE: LHD gasoline model shown. Diesel and RHD models similar.

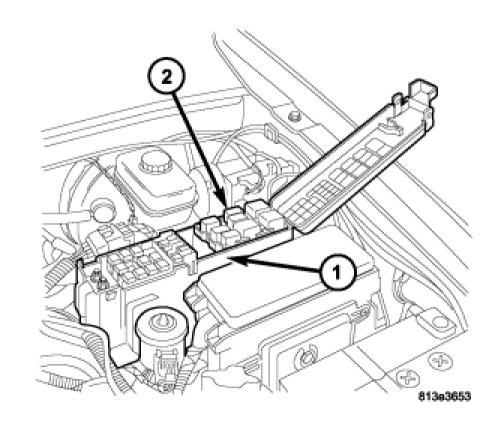

1. Position the A/C clutch relay (2) into the receptacle of the power distribution center (PDC) (1).

NOTE: Refer to the fuse and relay layout map on the inside of the PDC cover for A/C clutch relay location.

2. Align the A/C clutch relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.

3. Close the cover of the PDC.

4. Reconnect the negative battery cable.
