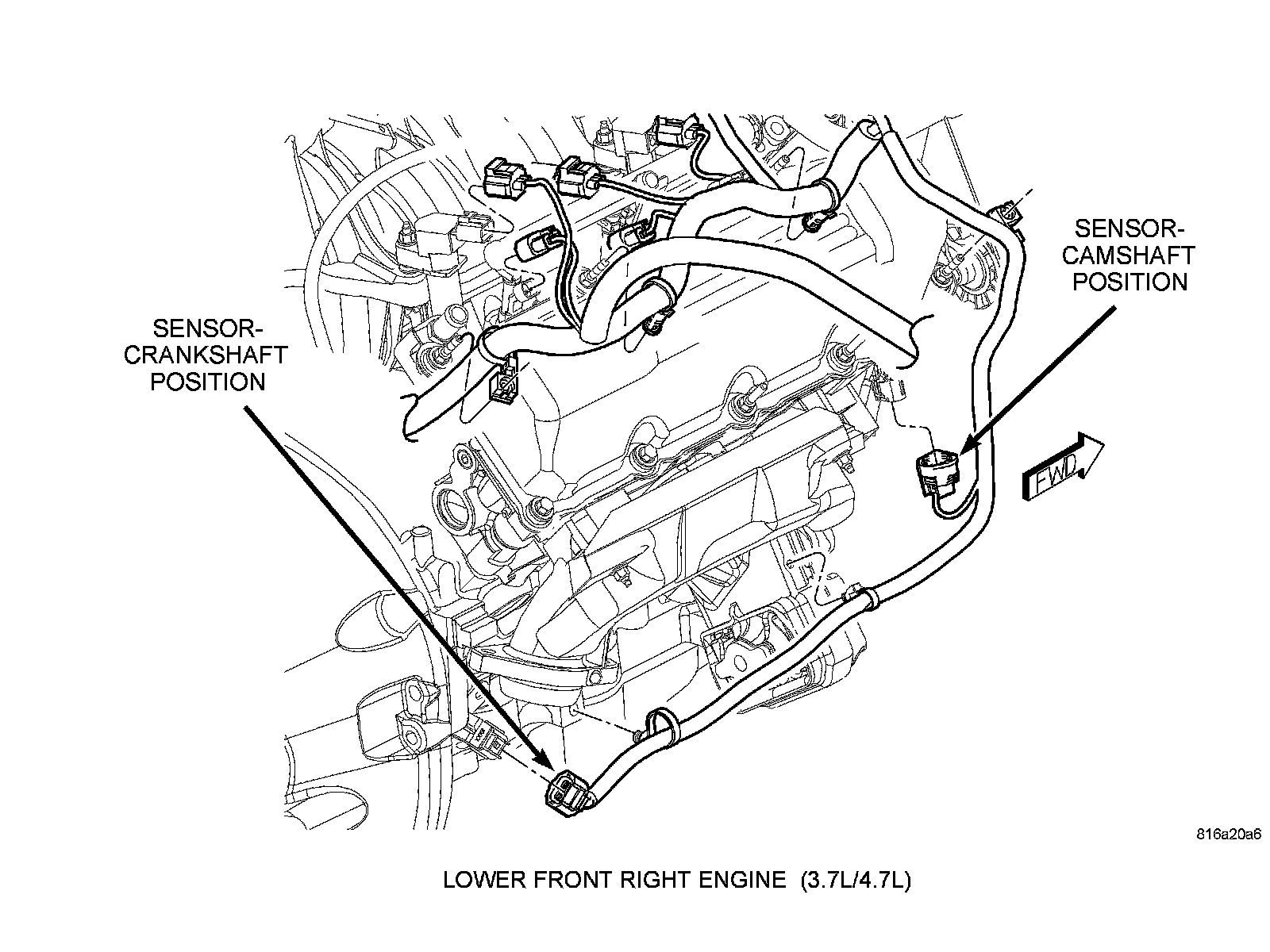

Camshaft Position Sensor: Locations

Component ID: 460
Component : SENSOR-CAMSHAFT POSITION

Connector:
Name : SENSOR-CAMSHAFT POSITION
Color :
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CAMSHAFT POSITION SENSOR GROUND K944 20BR/DG
2 CAMSHAFT POSITION SENSOR SIGNAL K44 20YL/GY
3 CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY K844 20RD/VT

Component Location - 30




Component Location - 16




Component Location - 19




Component Location - 24






Connector:
Name : SENSOR-CAMSHAFT POSITION
Color : GRAY
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 CMP SIGNAL K44 20GY/DB
2 SENSOR GROUND K900 20DB/DG
3 5 VOLT SUPPLY F856 20YL/PK

Component Location - 30




Component Location - 16




Component Location - 19




Component Location - 24
