NAG1 Automatic Transmission






SPECIFICATIONS

Gear Ratios:

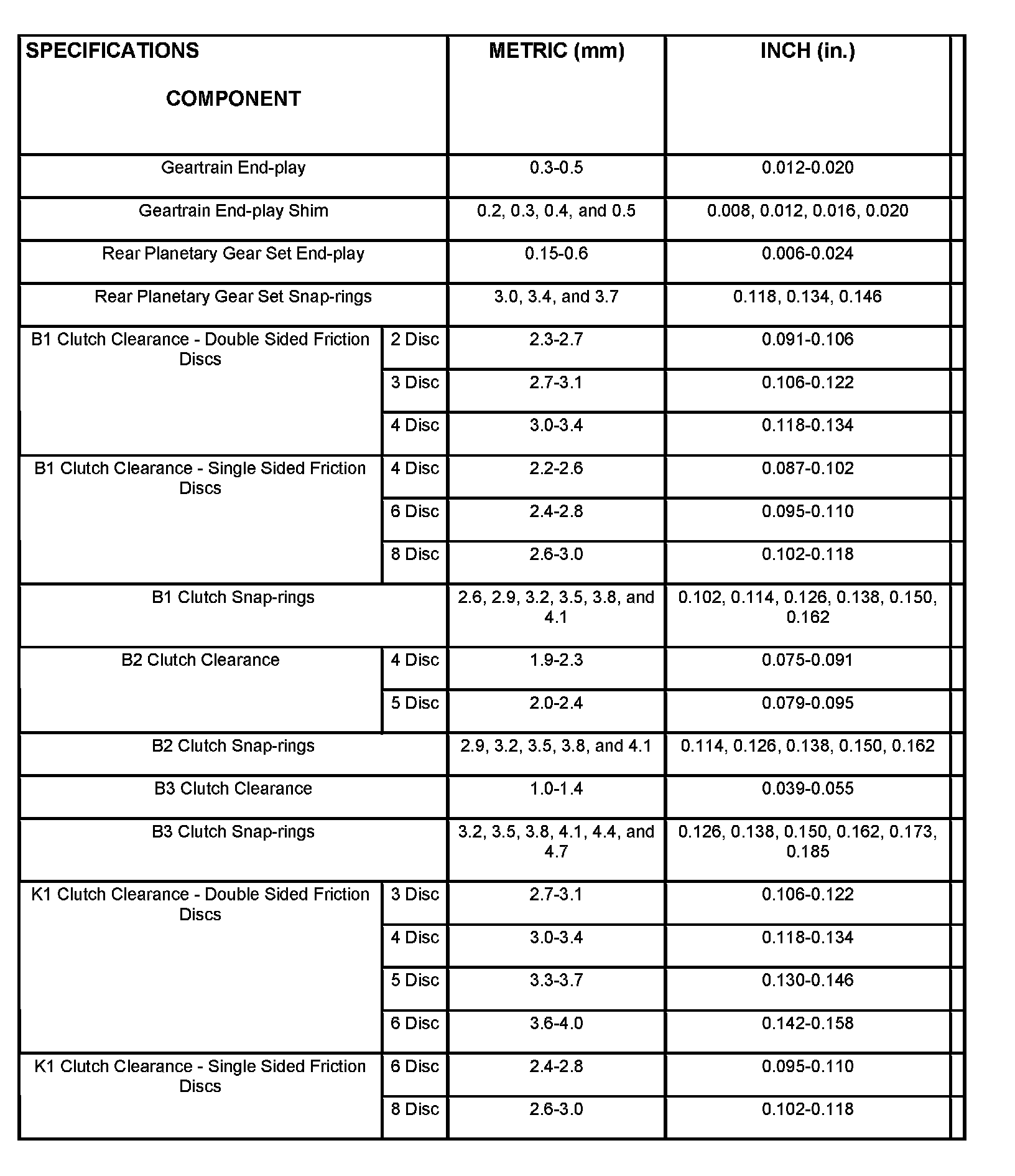

Specifications (Part 1):

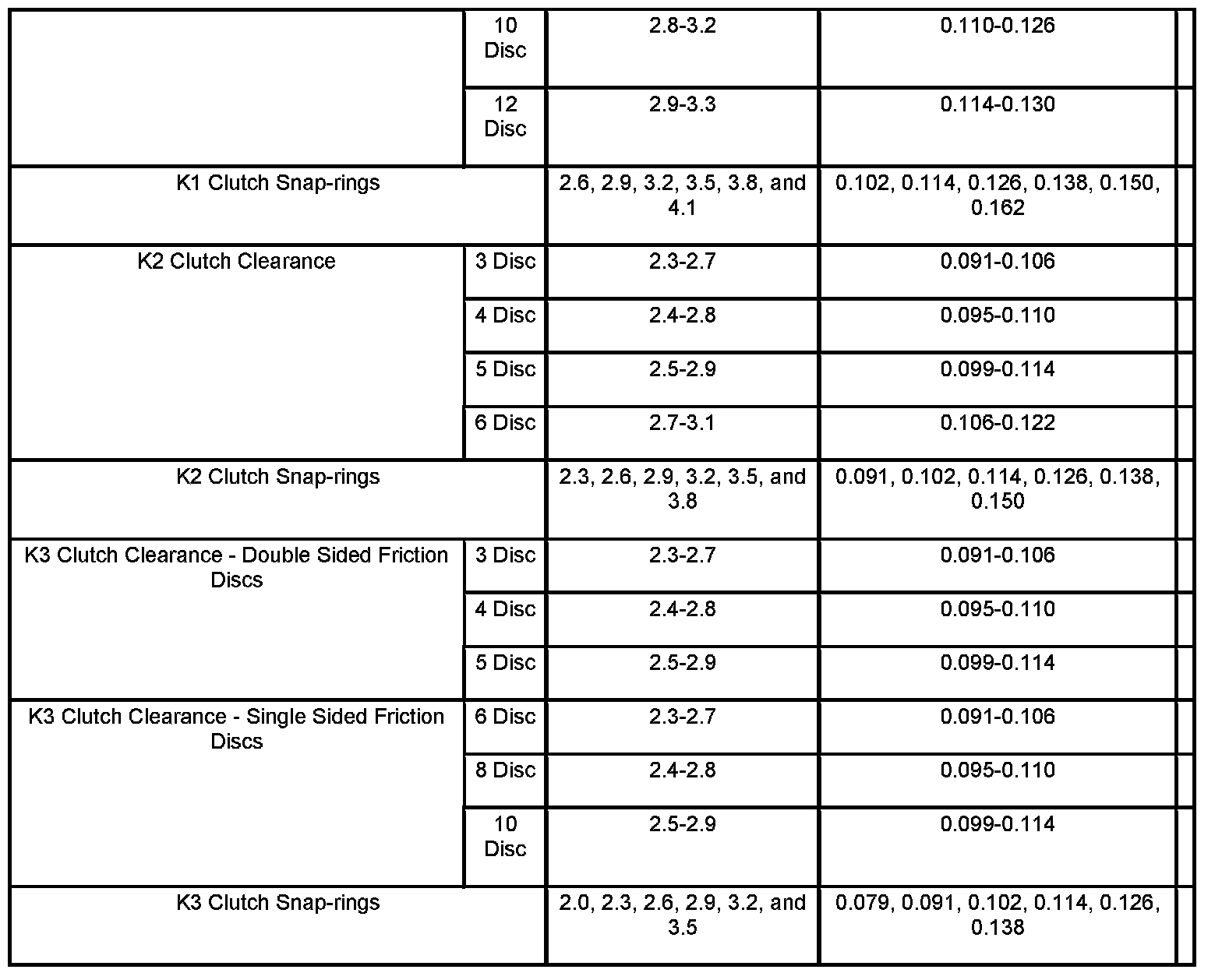

Specifications (Part 2):

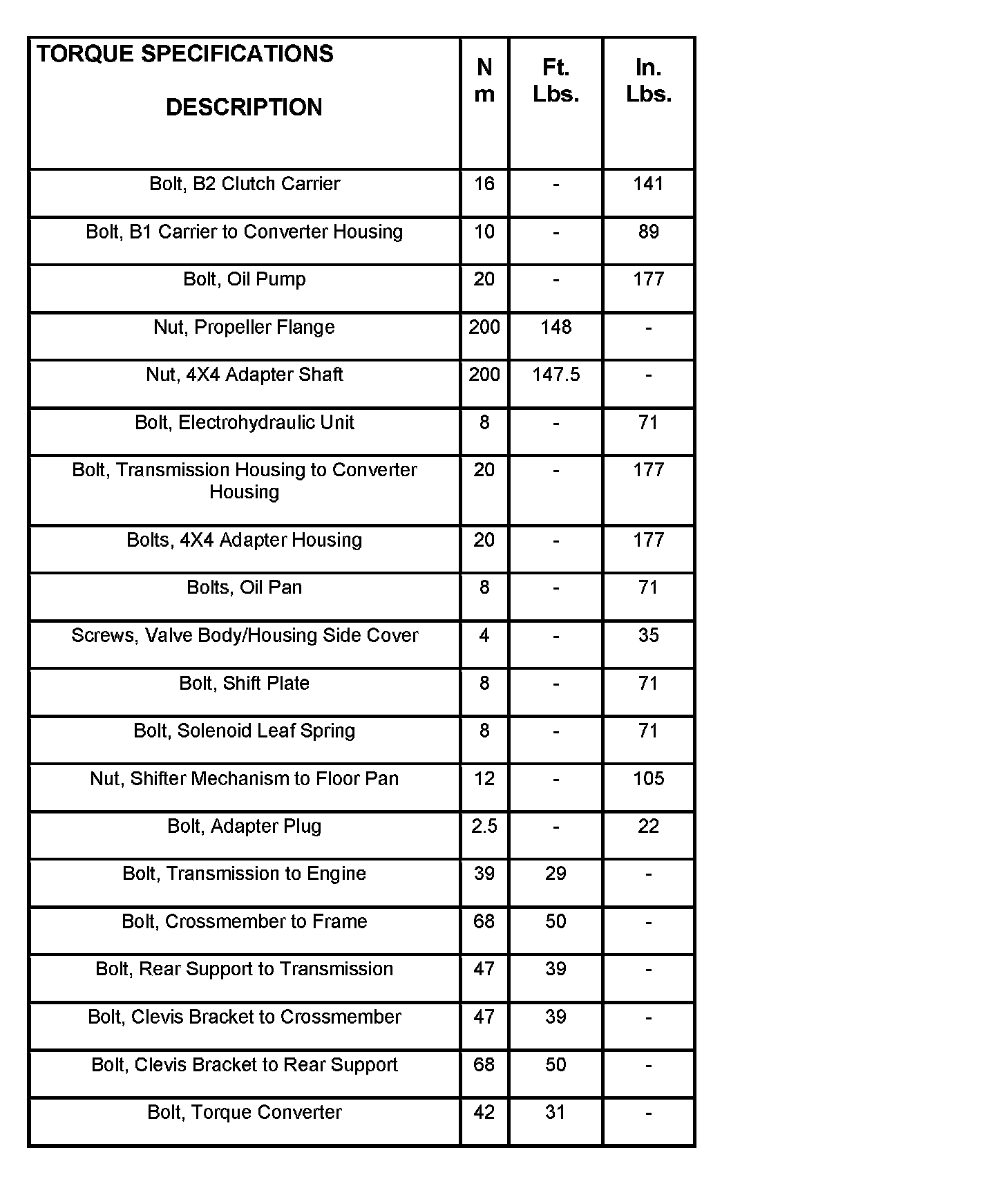

Torque Specifications:
