Cylinder Head Assembly

Cylinder Head:

Cylinder Head

Cylinder Head - Surface Variation
Inspect the cylinder head for out-of-flatness, using a straightedge and a feeler gauge. If tolerances exceed 0.0508 mm (0.002 in.) replace the cylinder head.

Camshaft Sprocket-Bolt 122 Nm (90 ft. lbs.)

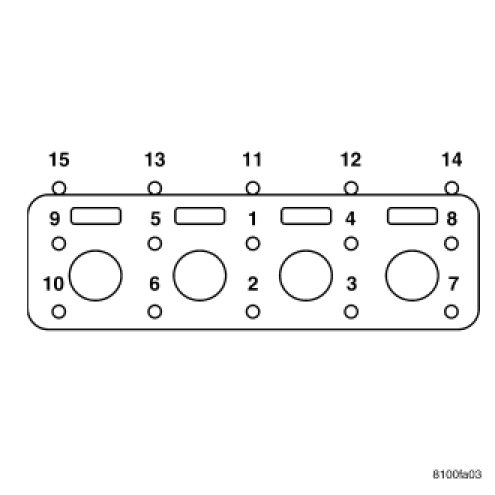

Cylinder Head-Bolts
M-12 Bolts
Step 1 34 Nm (25 ft. lbs.)
Step 2 54 Nm (40 ft. lbs.)
Step 3 Turn 90�
M-8 Bolts
Step 1 20 Nm (15 ft. lbs.)
Step 2 34 Nm (25 Ft. lbs.)

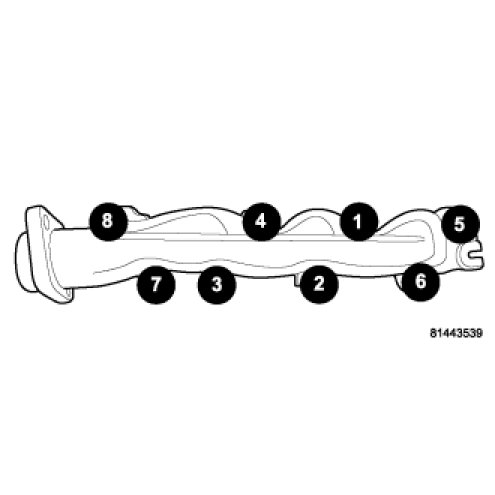

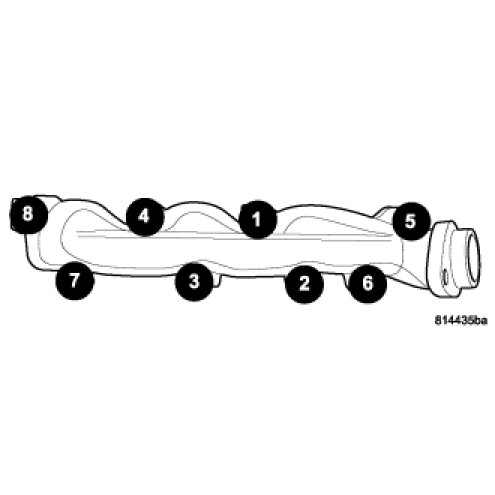

Exhaust Manifold to Cylinder Head 25 Nm 220 (in. lbs.)

Intake Manifold
Install intake manifold retaining bolts, and tighten in sequence from the middle bolts towards the outside in a crisscross pattern.
Torque fasteners to 12 Nm (105 in. lbs.).
