Installation

INSTALLATION

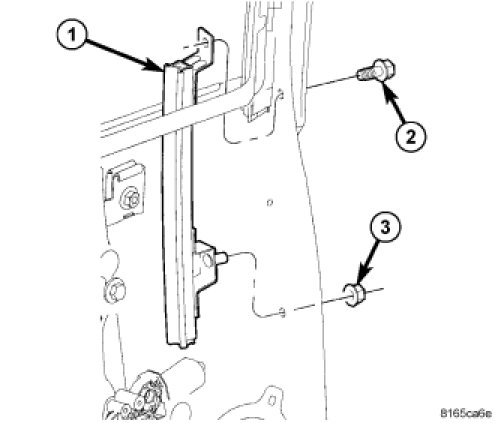

1. Position the front glass run channel (1) onto the rear door.

2. Install the nut (3) that secures the bottom of the rear glass run channel to the inside door panel. Tighten the bolt to 12 Nm (105 in. lbs.).

3. Tighten the bolt that secures the top of the rear glass run channel to the inside door panel to 7 Nm (60 in. lbs.).

4. Install the weatherstrip into the rear glass run channel.

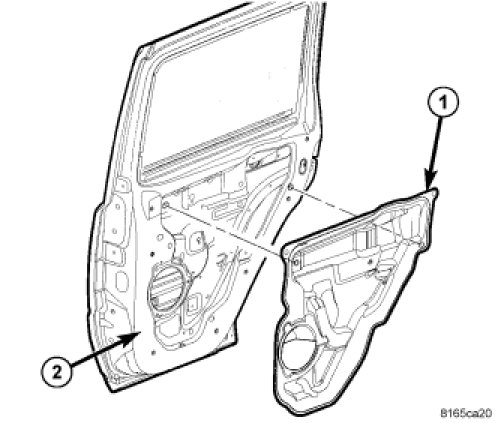

5. Install the watershield.
