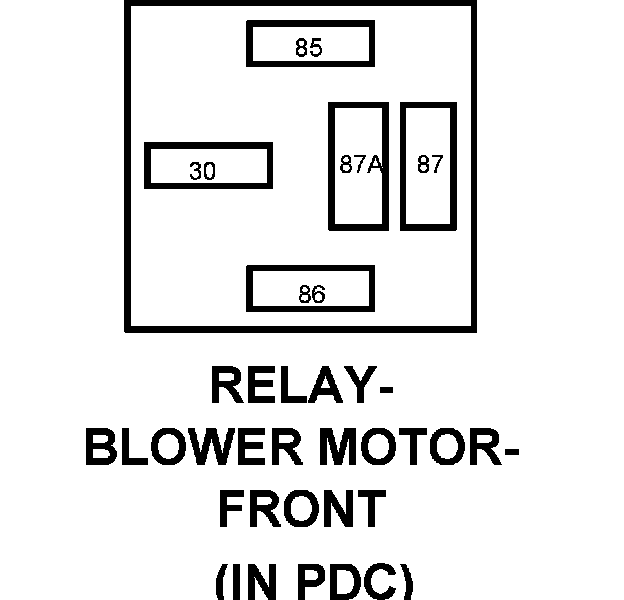

Relay-Blower Motor-Front

Component ID: 244
Component : RELAY-BLOWER MOTOR-FRONT

Connector:
Name : RELAY-BLOWER MOTOR-FRONT
Color :
# of pins : 0




30 FUSED B(+) A502 12RD/LG
85 GROUND Z387 20BK
86 FUSED RUN RELAY OUTPUT F921 20PK/GY
87 FRONT BLOWER MOTOR RELAY OUTPUT C7 12DB
87A - -
