Inline Connector End View (C205 )

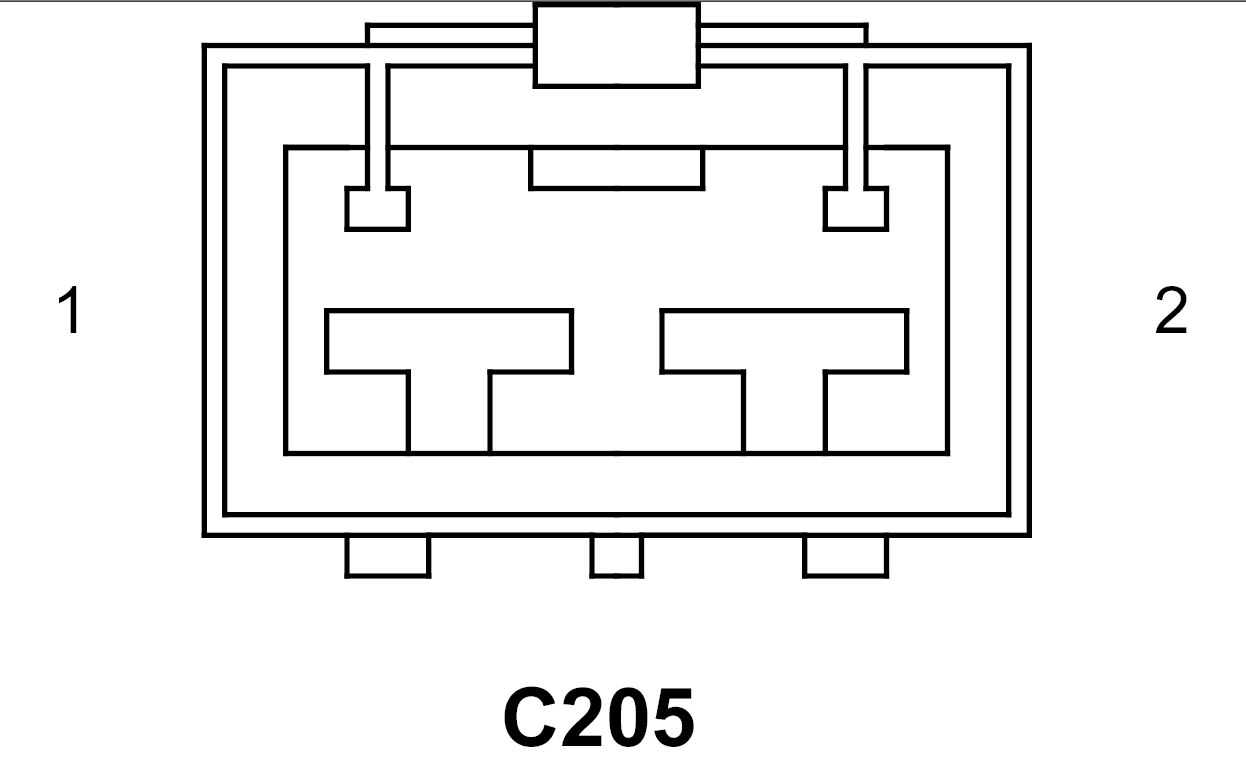

C205 - 2-WAYFEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C7 12DB |
FRONT BLOWER MOTOR RELAY OUTPUT |
| 2 |
Z134 12BK/LG |
GROUND |

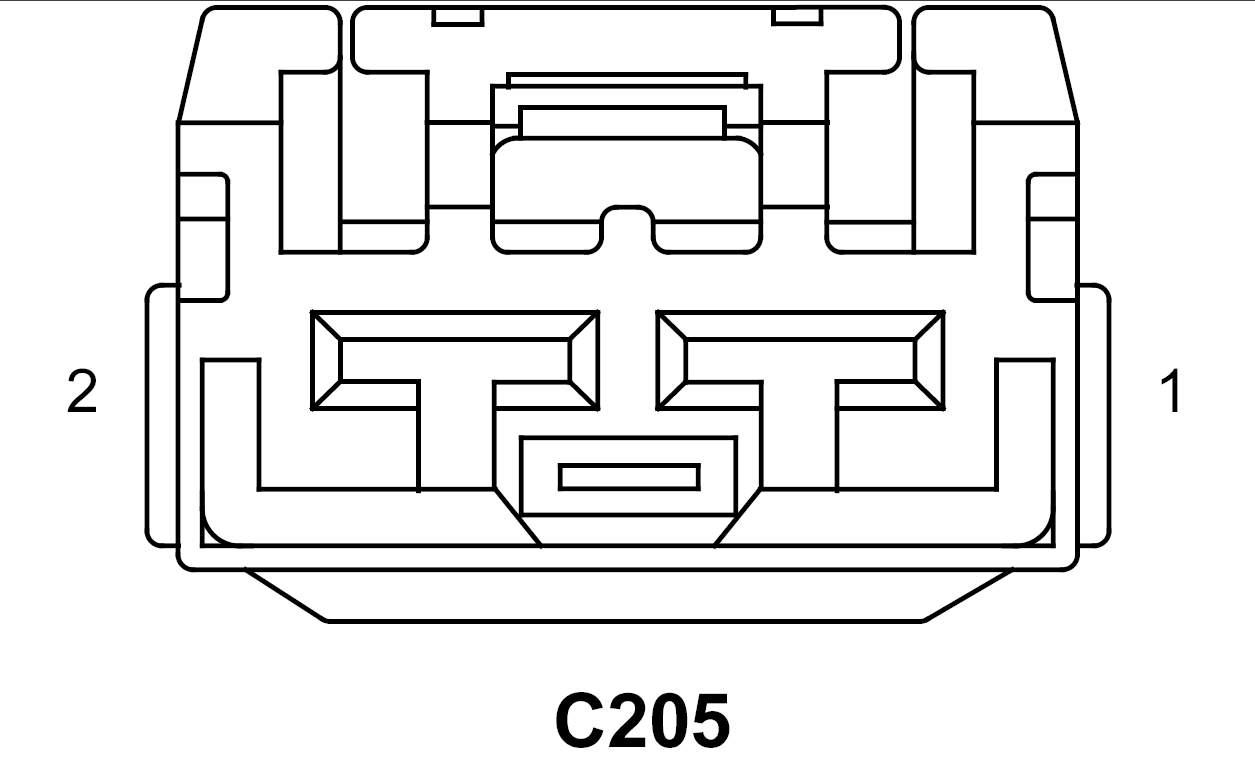

C205 - 2-WAYMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C7 12DB |
FRONT BLOWER MOTOR RELAY OUTPUT |
| 2 |
Z134 12BK/LG |
GROUND |
