Rear Tow Eye

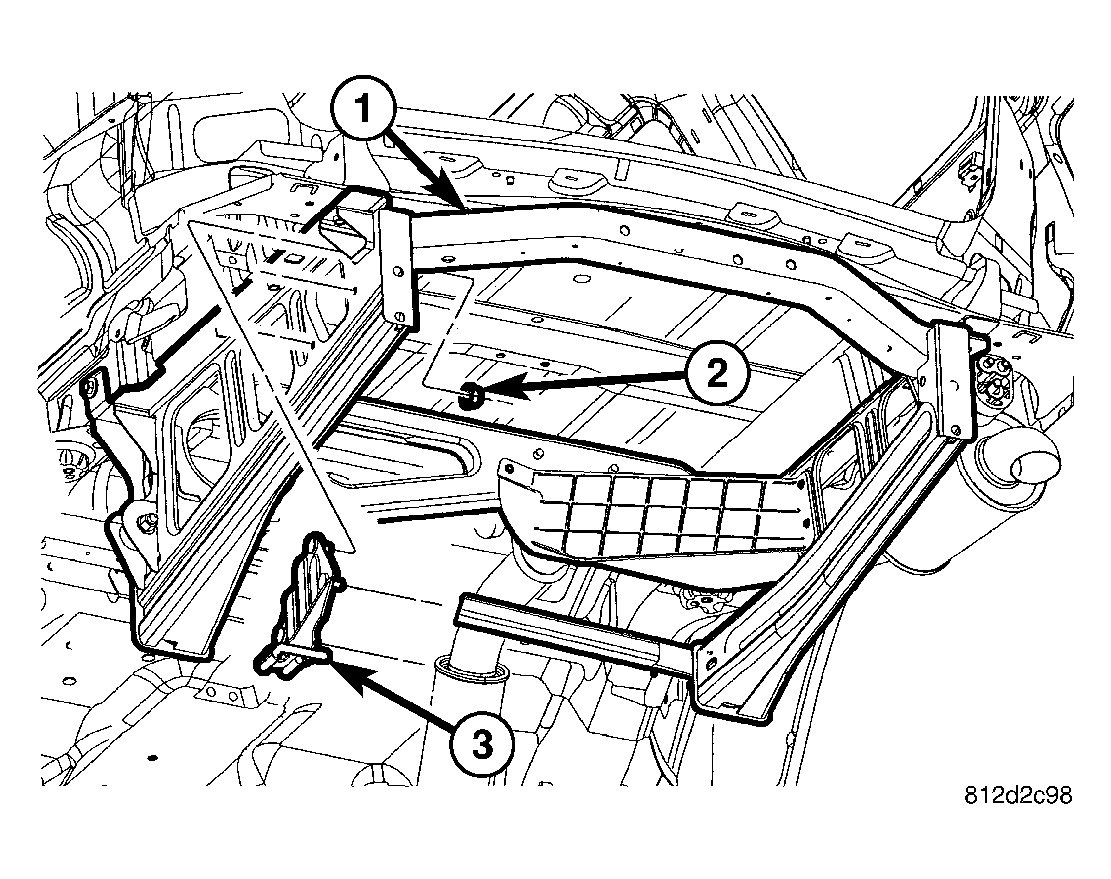

Fig 1: Rear Tow Eye
GC0027818Courtesy of CHRYSLER LLC
  1. Install the tow eye (3) and install the mounting nuts (2).
  2. Tighten the nuts to 88 N.m (65 ft. lbs.).
