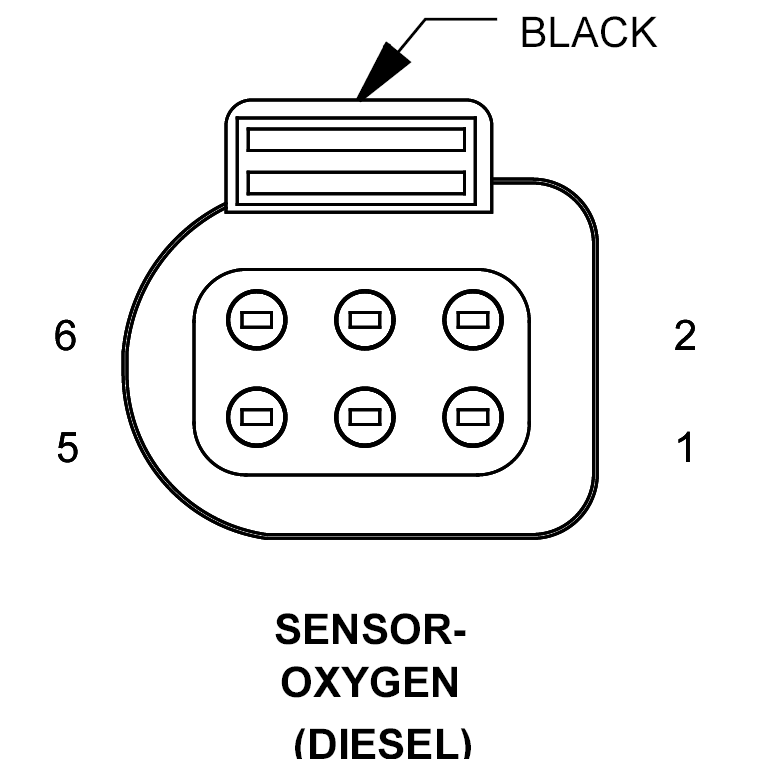

Oxygen Sensor (Diesel) Connector End View

SENSOR-OXYGEN - BLACK 6-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K43 20GY/RD	O2 1/1 POSITIVE CURRENT CONTROL
2	Z43 20DG/BL	O2 1/1 NEGATIVE CURRENT CONTROL
3	K99 16GY/BR	O2 1/1 HEATER CONTROL
4	A15 16RD/DG	FUSED ASD RELAY OUTPUT
5	K902 20GY/WT	O2 1/1 PUMP CELL CURRENT TRIM
6	K41 20DG/BK	O2 1/1 REFERENCE SIGNAL
