EGR Valve (Diesel) Connector End View

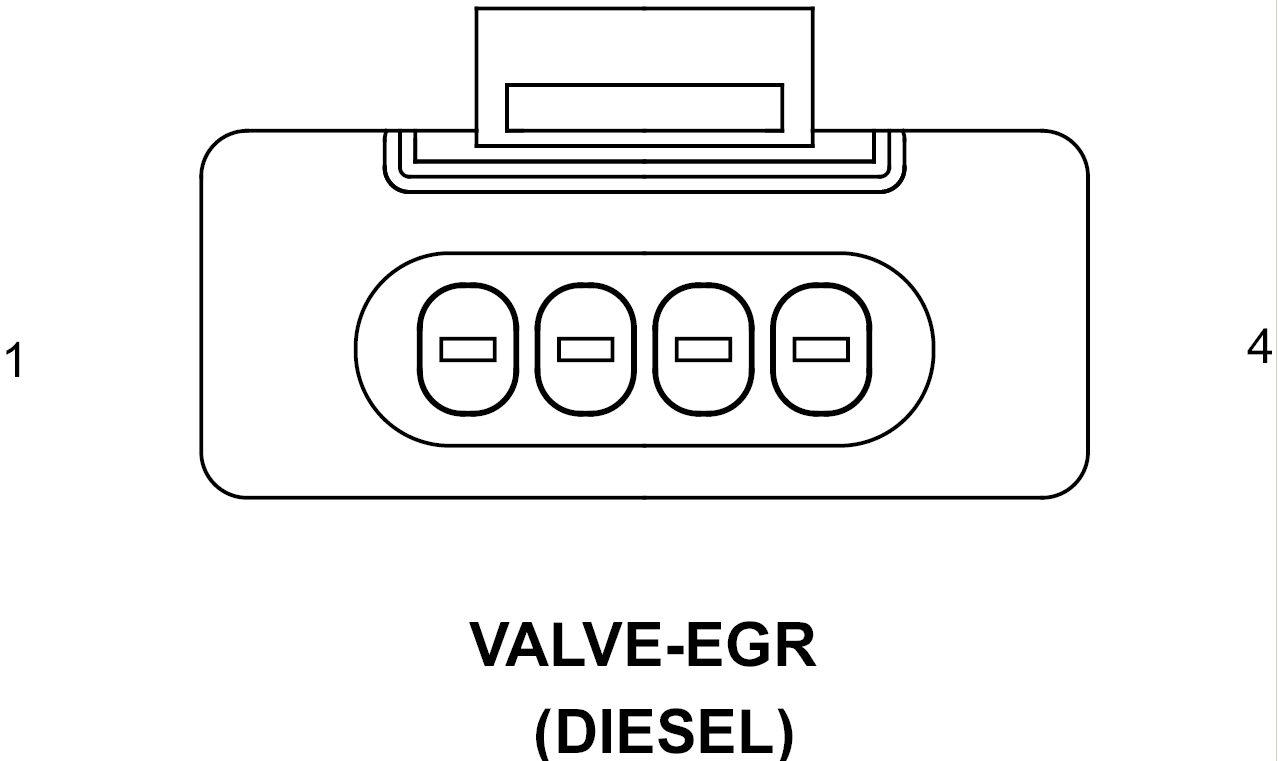

VALVE-EGR - 4-WAY(DIESEL)

GXK780449Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K34 20GY/YL EGR SOLENOID CONTROL
2 A15 18RD/DG FUSED ASD RELAY OUTPUT
3 Z42 18BR GROUND
4 - -
