Circuit Schematic

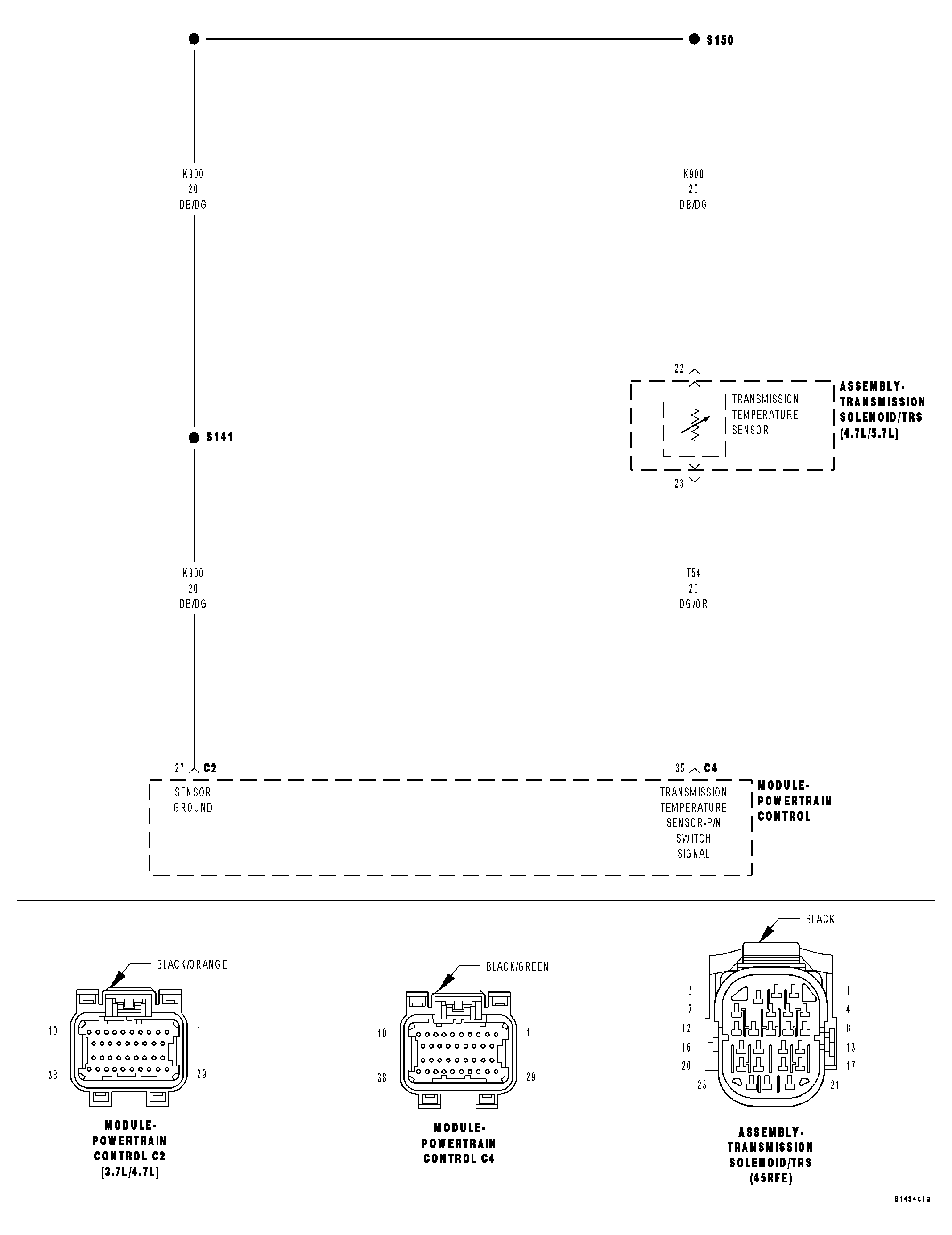

Fig 1: Transmission Temperature Sensor Circuit Schematic

GC0027336

Courtesy of CHRYSLER LLC
