Rear Wiper Arm

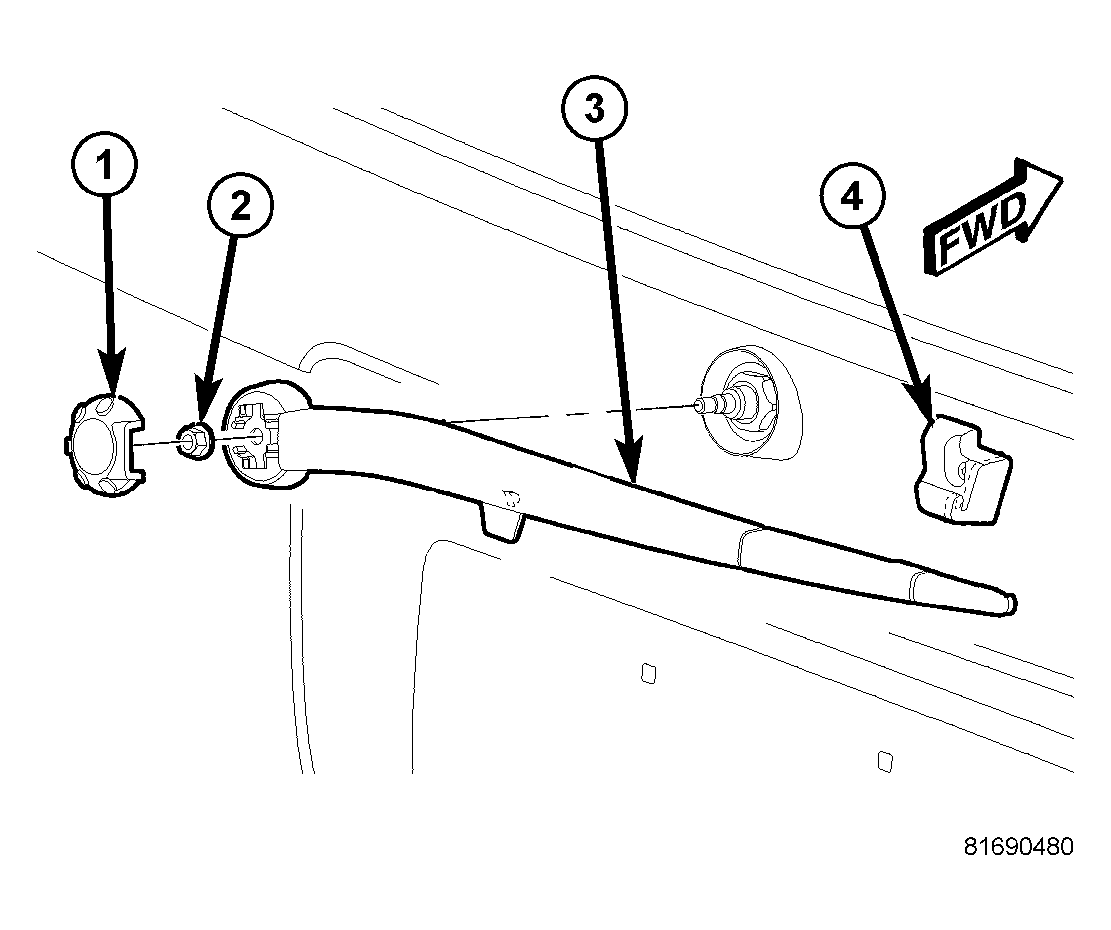

- Insert the tip of a small screwdriver into the notch on the lower edge of the large end of the rear wiper arm (3) and carefully pry the plastic cap (1) until it unsnaps from over the mounting hole on the pivot end of the arm.
- Remove the nut (2) that secures the arm to the rear wiper motor output shaft.CAUTION: The use of a battery terminal puller when removing the rear wiper arm is NOT recommended as this may damage the rear wiper arm.
- Lift the arm to disengage the support from the park ramp (4) and use a slight rocking action to remove the rear wiper arm from the output shaft.
