Structural Cover
WARNING: This page is about a different variant/trim than selected.
- Raise vehicle on hoist.
- Remove the left hand exhaust pipe from exhaust manifold.
- Loosen the right hand exhaust manifold-to-exhaust pipe retaining bolts.

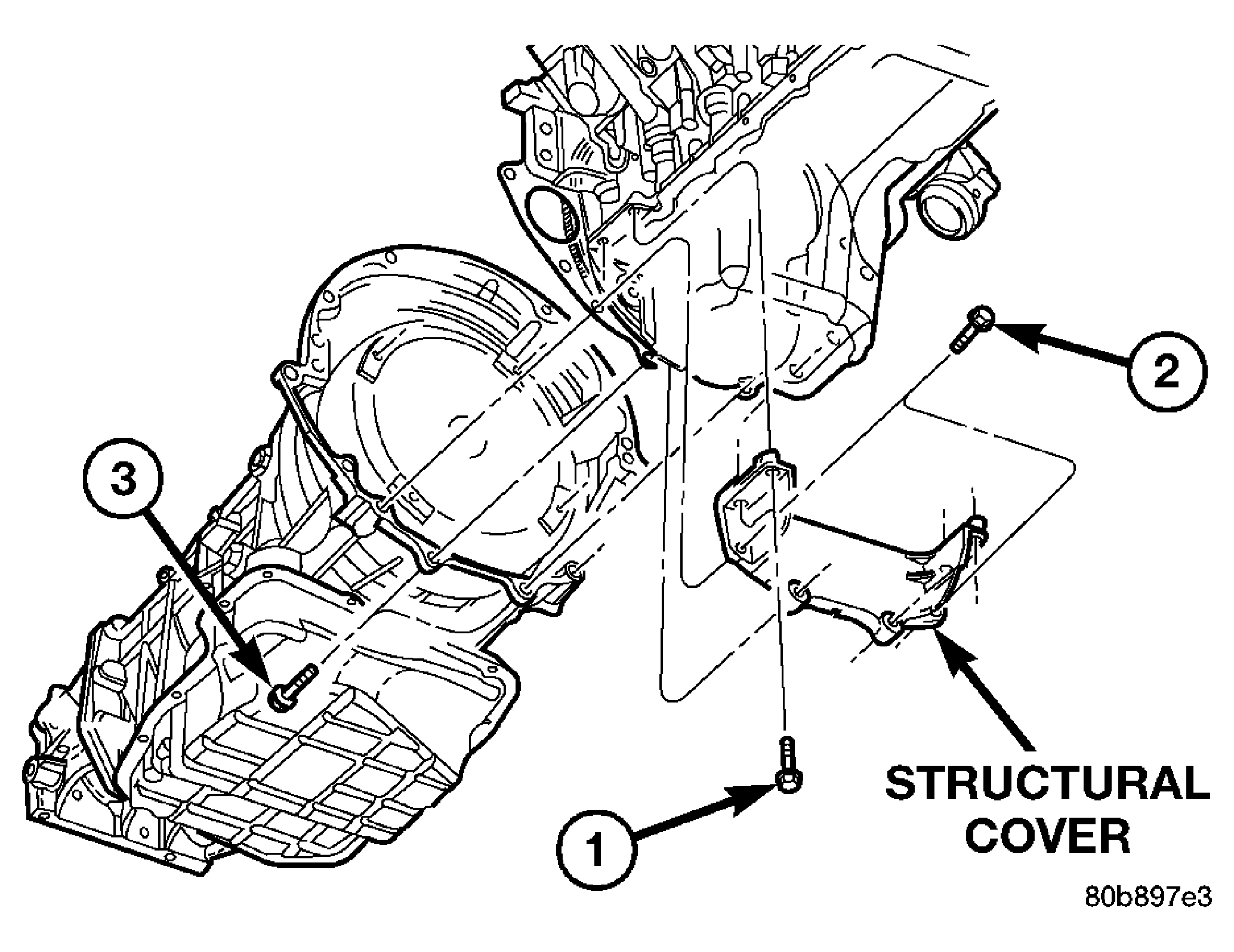

- Remove the eight bolts (1, 2, and 3) retaining structural cover in the sequence shown in illustration.
- Pivot the exhaust pipe downward and remove the structural cover.
