Housing, Transmission, Rear Extension: Installation

G00673087Courtesy of CHRYSLER LLC

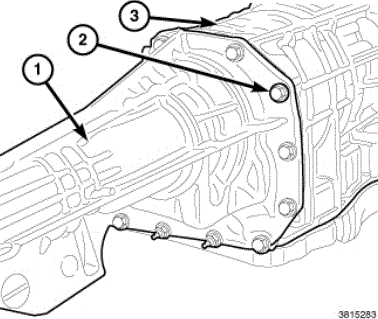

  1. Apply a bead of RTV silicone to the extension housing.
  2. Install the extension housing (1) on the transmission (3).
  3. Install the extension housing bolts (2) and tighten to 54 N.m (40 ft lbs).
    G00673083Courtesy of CHRYSLER LLC
  4. Align marks and install rear drive shaft. Refer to INSTALLATION .
