Glove Box Lamp Connector End View

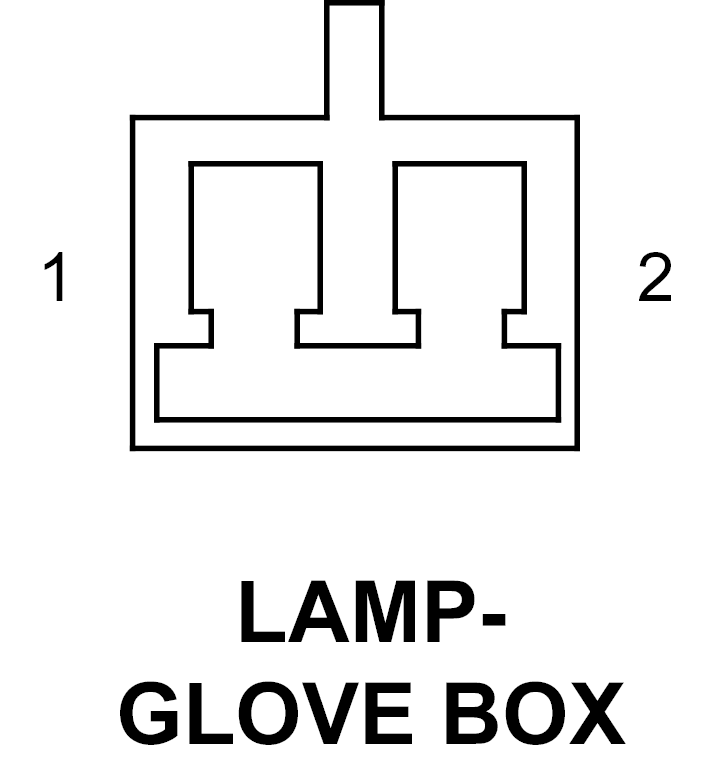

LAMP-GLOVE BOX - 2-WAY

GXK780182Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A931 20RD FUSED B(+)
2 M28 20YL/TN GLOVE BOX/MAP LAMP DRIVER
