Ignition Coil 1 Connector End View

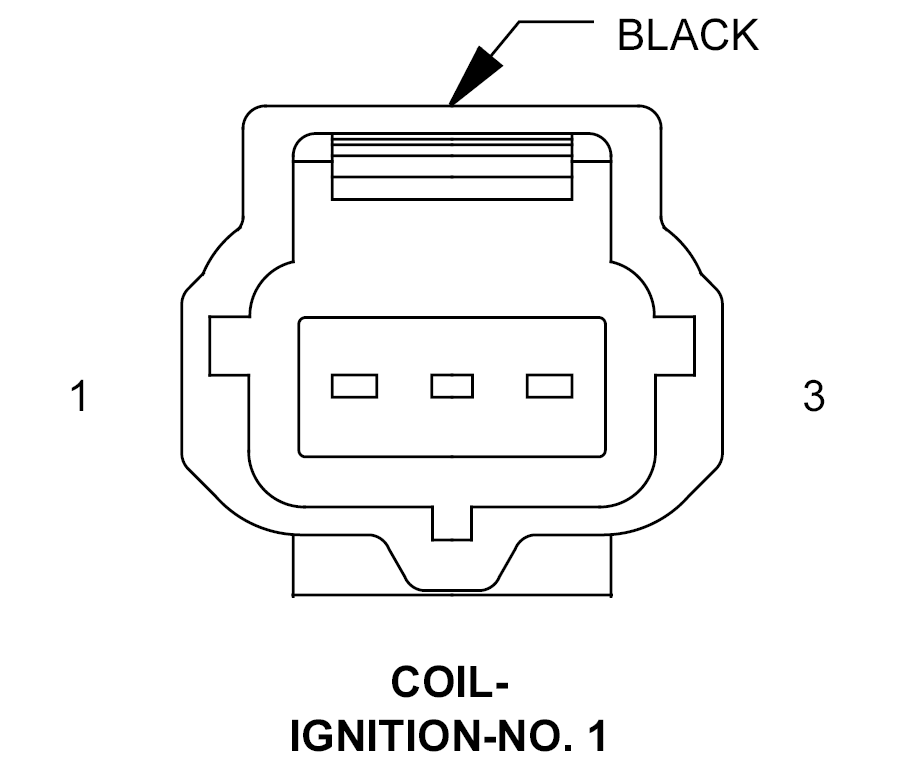

COIL-IGNITION-NO. 1 - BLACK 3-WAY

GXK780113Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 K86 16YL/DB COIL CONTROL NO. 1
2 A15 16RD/TN FUSED ASD RELAY OUTPUT
3 - -
