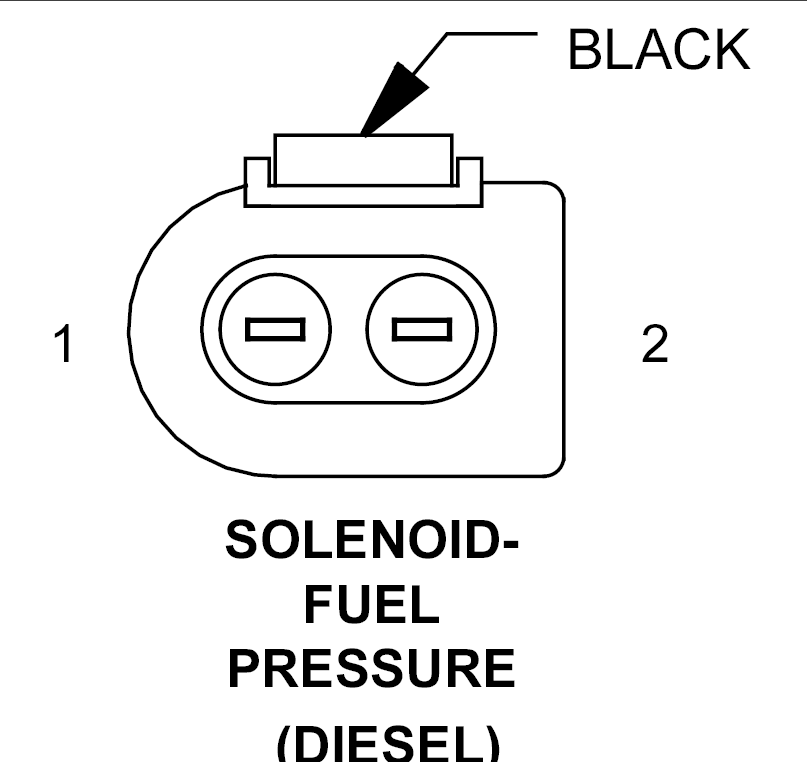

Fuel Pressure Solenoid (Diesel) Connector End View
SOLENOID-FUEL PRESSURE - BLACK 2-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K370 18BK/WT |
FUEL PRESSURE SOLENOID CONTROL |
| 2 |
K369 18RD/GY |
FUEL PRESSURE SOLENOID 12 VOLT SUPPLY |
