Trailer Tow Electrical Connector End View

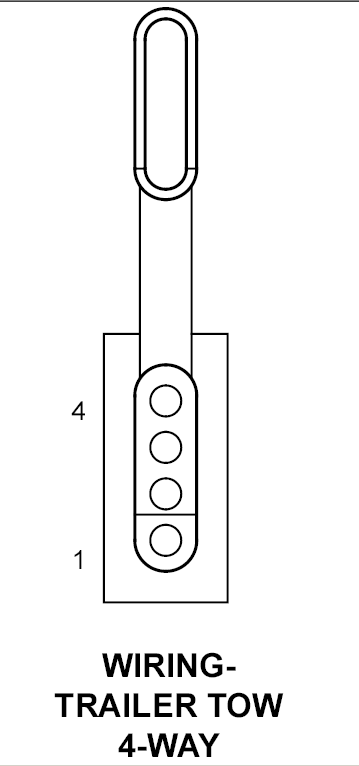

WIRING-TRAILER TOW 4-WAY - 4-WAY

GXK780452Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z912 14BK GROUND
2 L76 18WT/BR FUSED PARK LAMP RELAY OUTPUT
3 L615 18WT/YL TRAILER TOW LEFT STOP/TURN SIGNAL
4 L614 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL

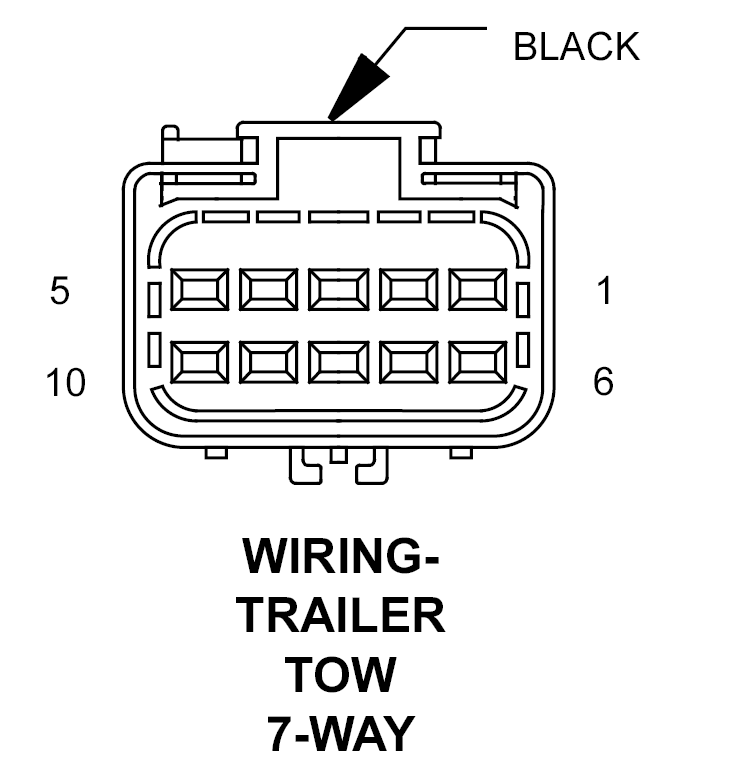

WIRING-TRAILER TOW 7-WAY - BLACK 10-WAY

GXK780453Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 L614 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL
3 L1 18WT/LG BACKUP LAMP FEED
4 A930 14RD/WT POWER OUTLET RELAY OUTPUT
5 L76 18WT/BR FUSED PARK LAMP RELAY OUTPUT
6 - -
7 B400 14DG TRAILER TOW ELECTRIC BRAKE OUTPUT
8 Z912 14BK GROUND
9 Z912 14BK GROUND
10 L615 18WT/YL TRAILER TOW LEFT STOP/TURN SIGNAL
