System Specifications

General Specifications

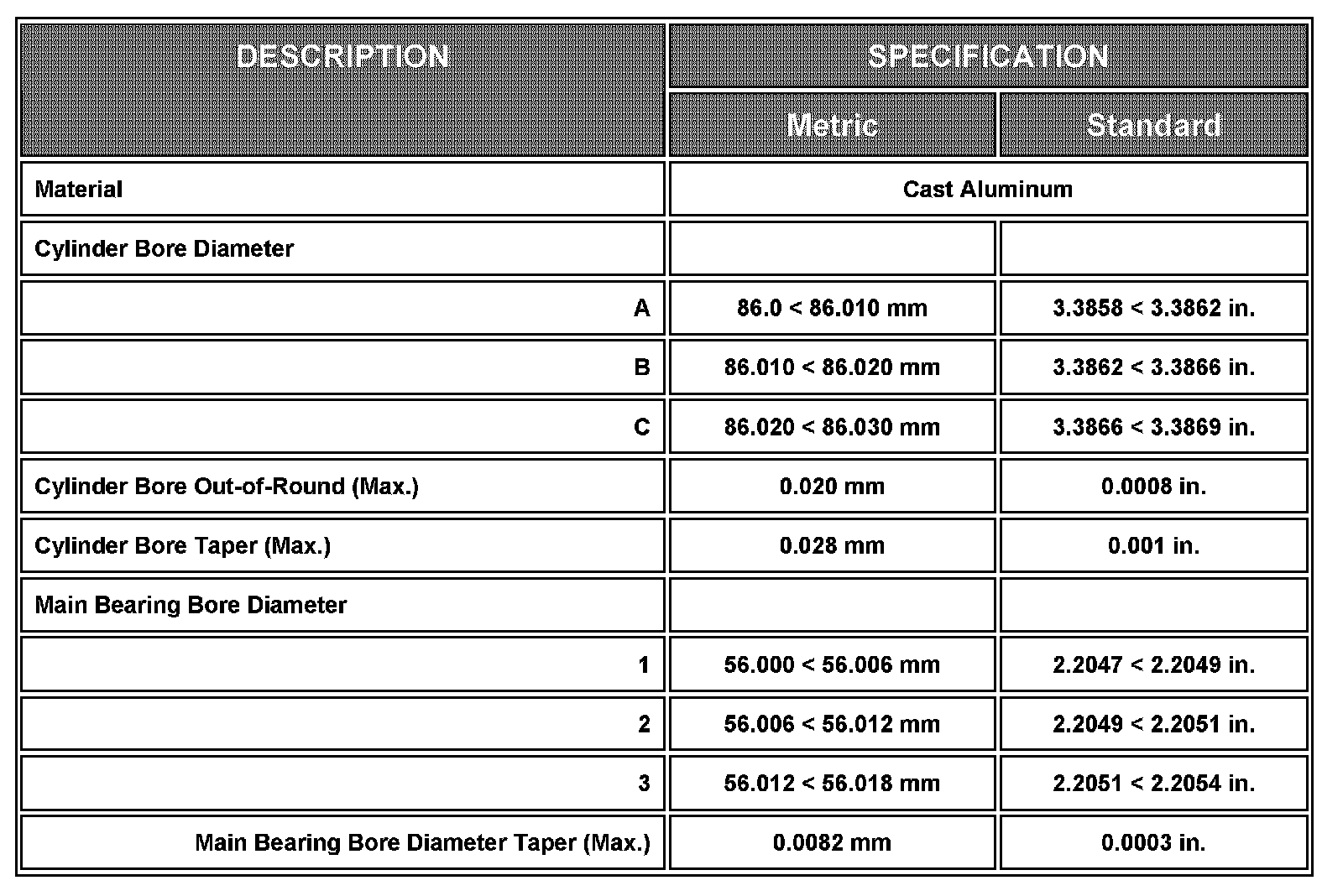

Cylinder Block

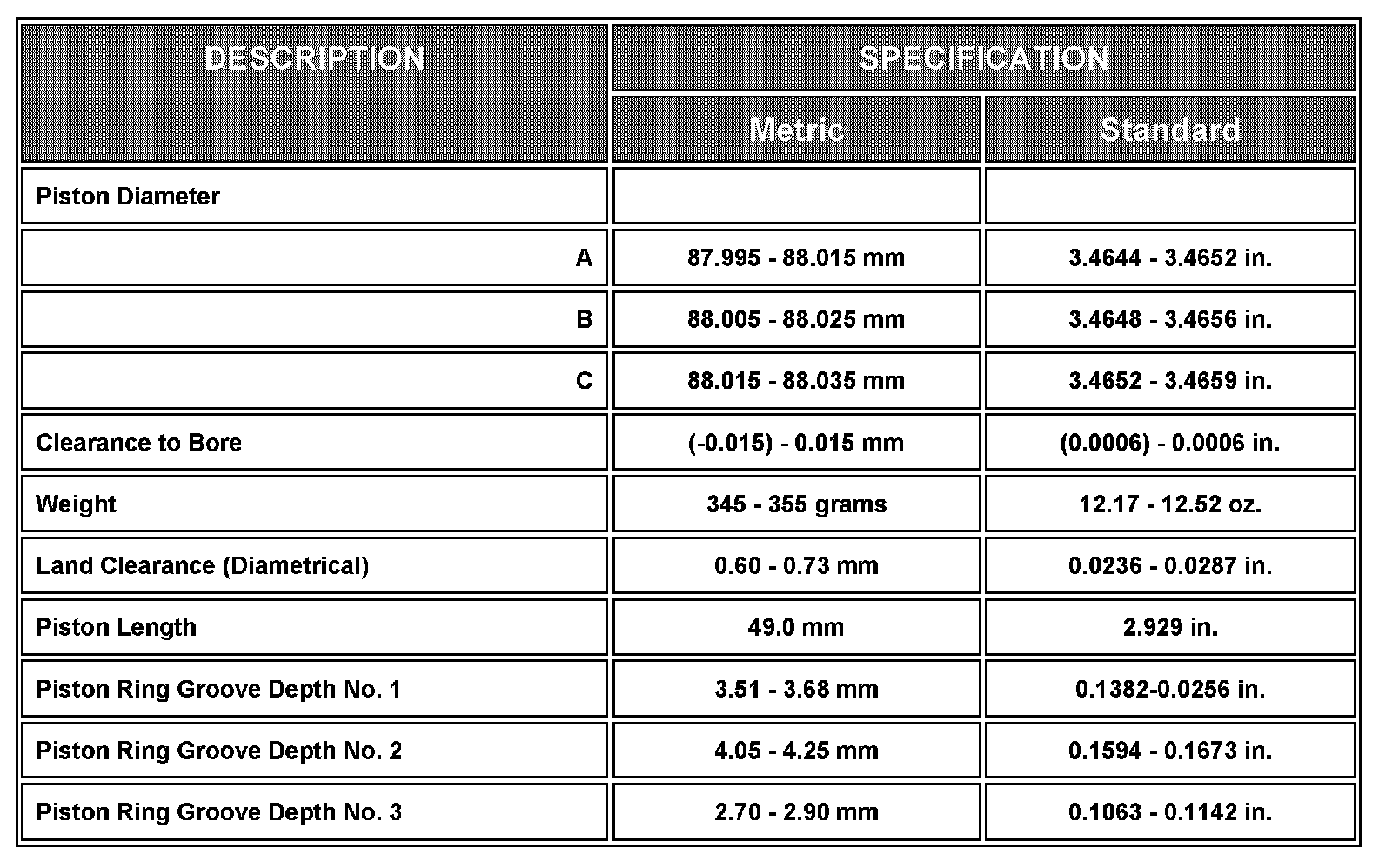

Pistons

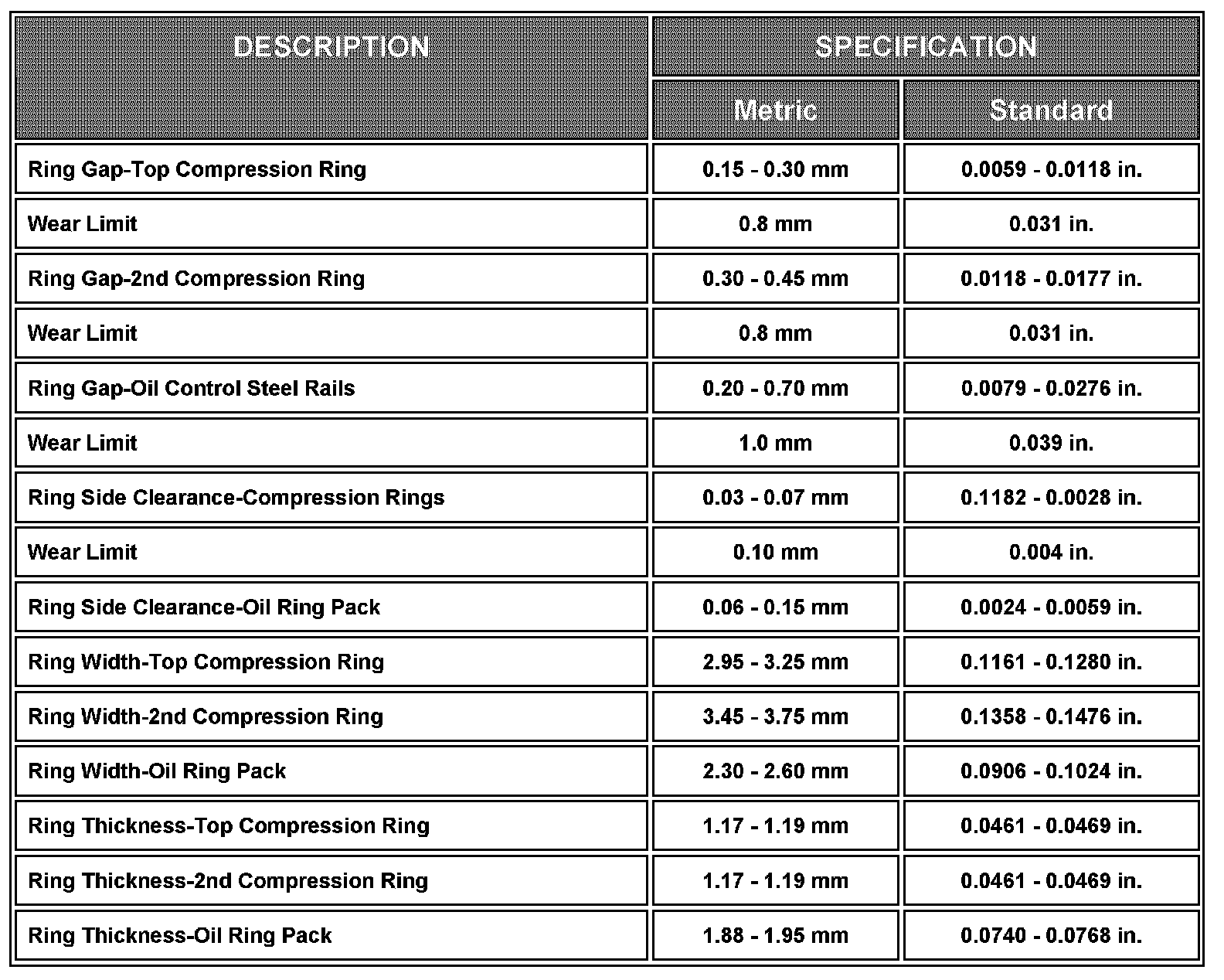

Piston Rings

Connecting Rod

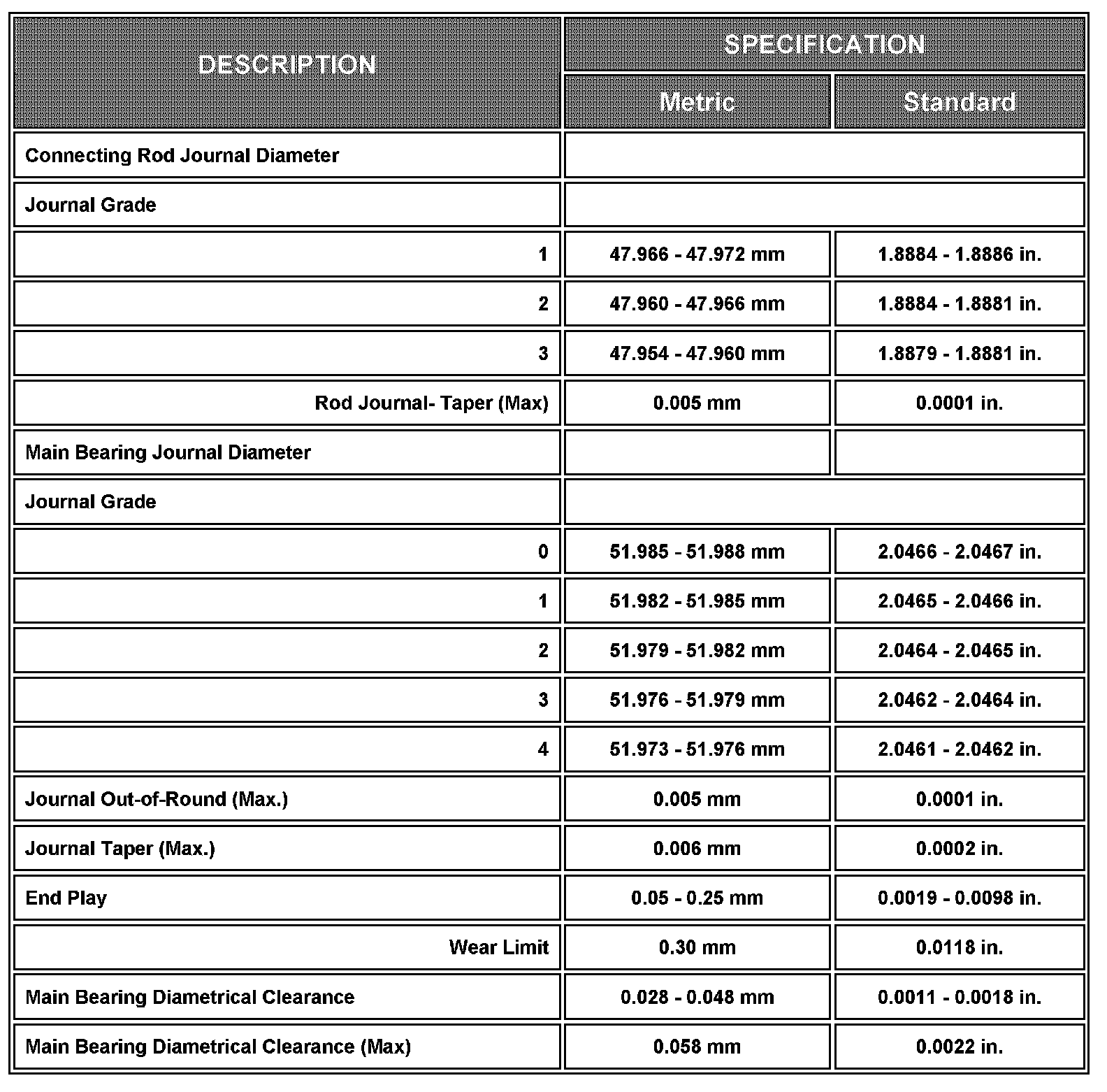

Crankshaft

Connecting Rod Cap-Bolts 20 Nm + 90� (15 ft. lbs. + 90�)

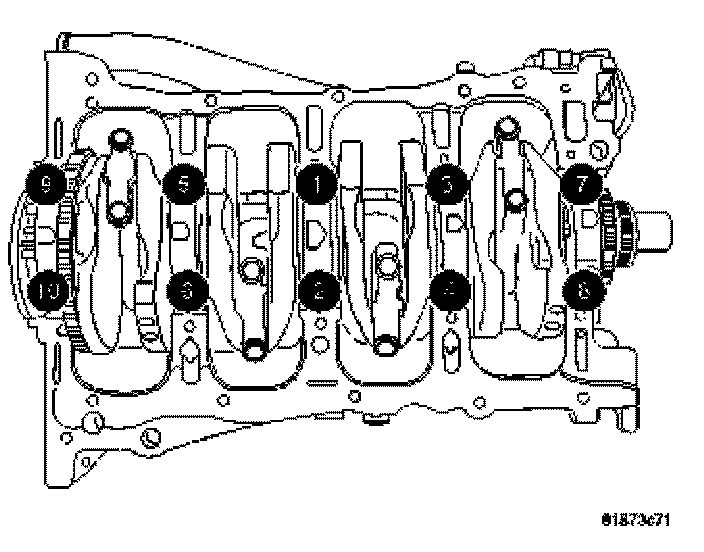

Crankshaft Main Bearing Cap-Bolts 27 Nm + 45� (20 ft. lbs. + 45�)
Crankshaft Damper-Bolt 210 Nm (155 ft. lbs.)

Cylinder Block Surface Variation
Deck surface must be within service limit of 0.050 mm (0.002 in.).
