A/C Compressor

A/C COMPRESSOR

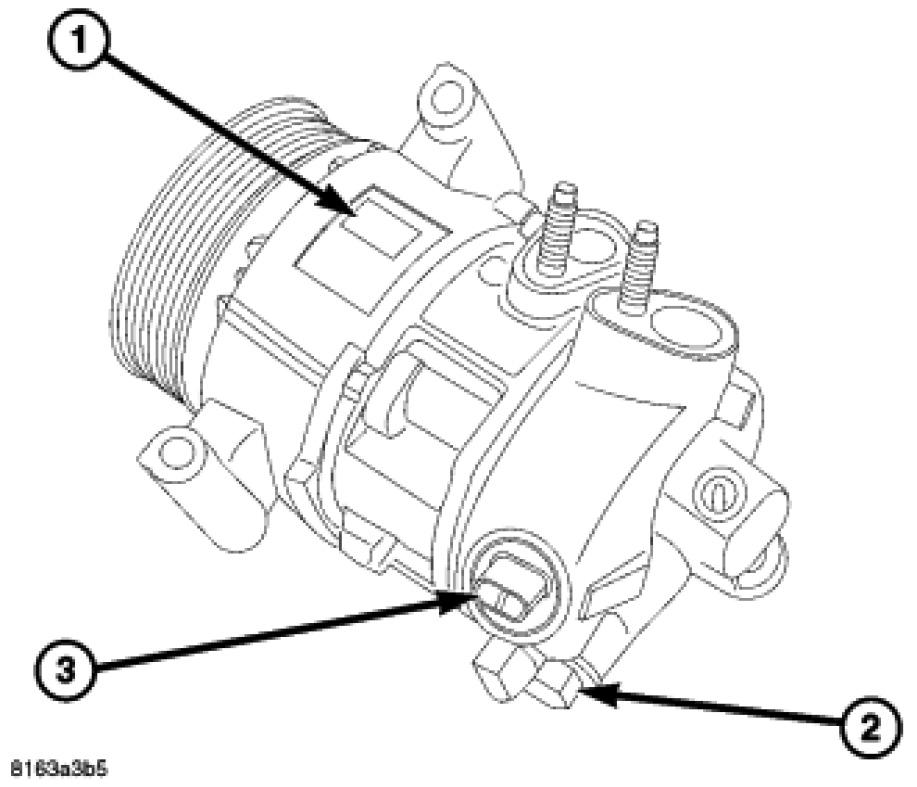

NOTE: Typical clutchless Denso A/C compressor shown.

The A/C system uses a Denso 5SE12C clutchless, five cylinder, variable displacement swashplate type A/C compressor (1). This A/C compressor has a total displacement of 126 cubic centimeters (7.6 cubic inches) and a high pressure relief valve (2) and a control valve (3) located on the back cover. The A/C compressor is secured with three bolts to the compressor bracket located near the oil pan at the front of the engine.

A label identifying the use of R-134a refrigerant is located on the A/C compressor.
