Removal

2.0/2.4L




1. Remove the air cleaner cover.

2. Disconnect the negative battery cable.

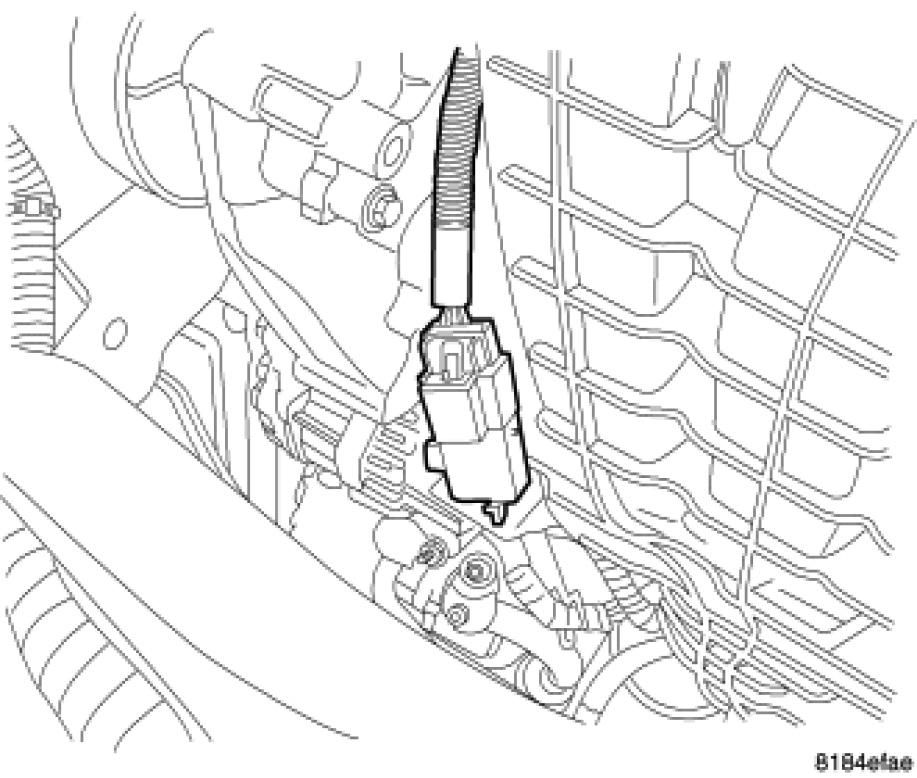

3. Disconnect the electrical connector from the MAP sensor.

4. Remove the screws from the MAP sensor.

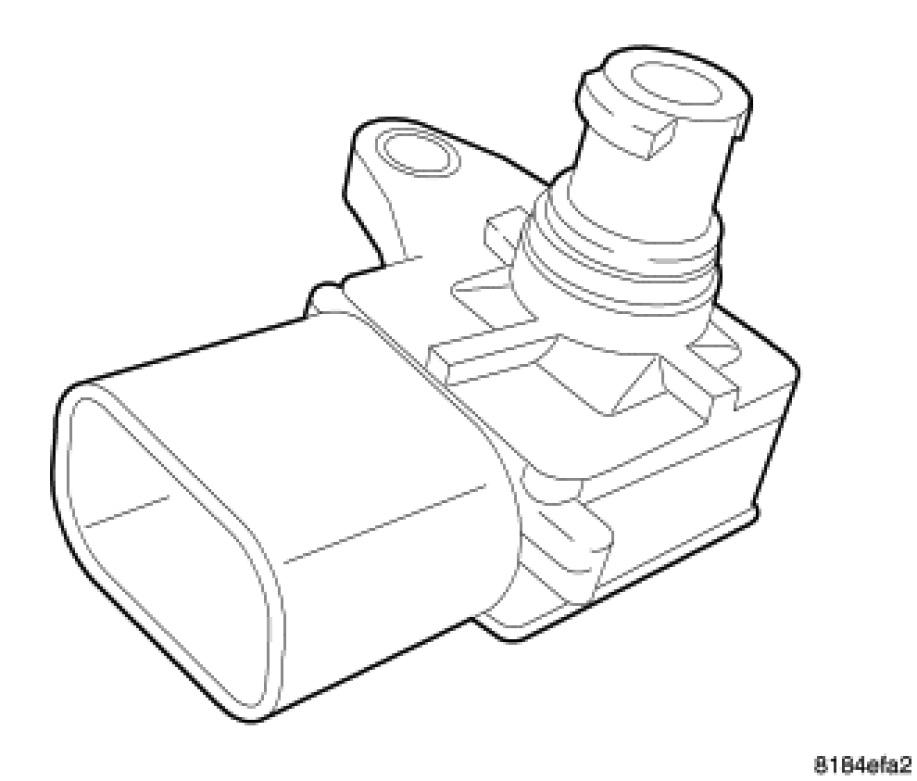

5. Remove the MAP sensor.
