Brake Fastener Torque






BRAKE FASTENER TORQUE

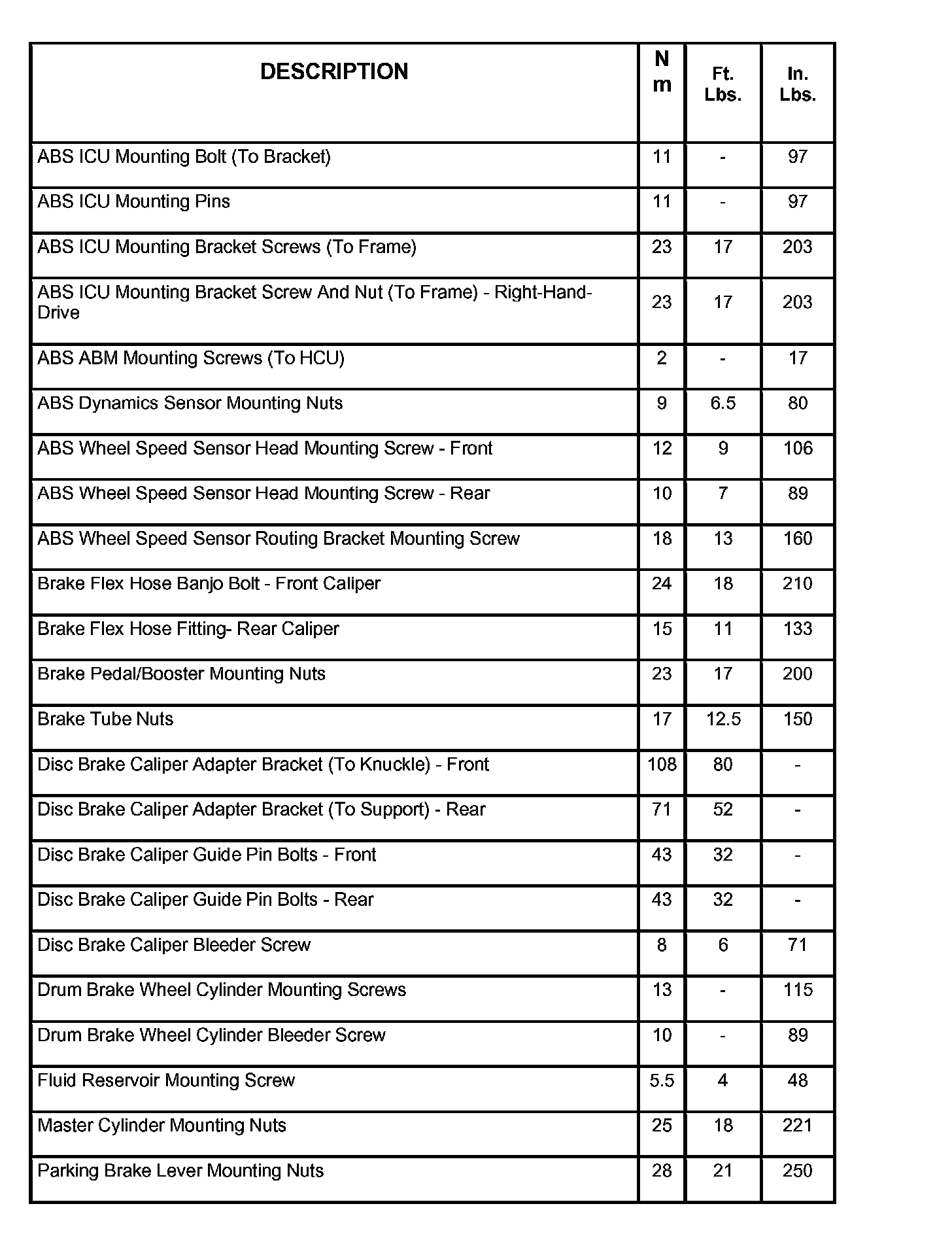

BRAKE FASTENER TORQUE (Part 1):





BRAKE FASTENER TORQUE (Part 1)

BRAKE FASTENER TORQUE (Part 2):





BRAKE FASTENER TORQUE (Part 2)
