Installation

2.0/2.4L

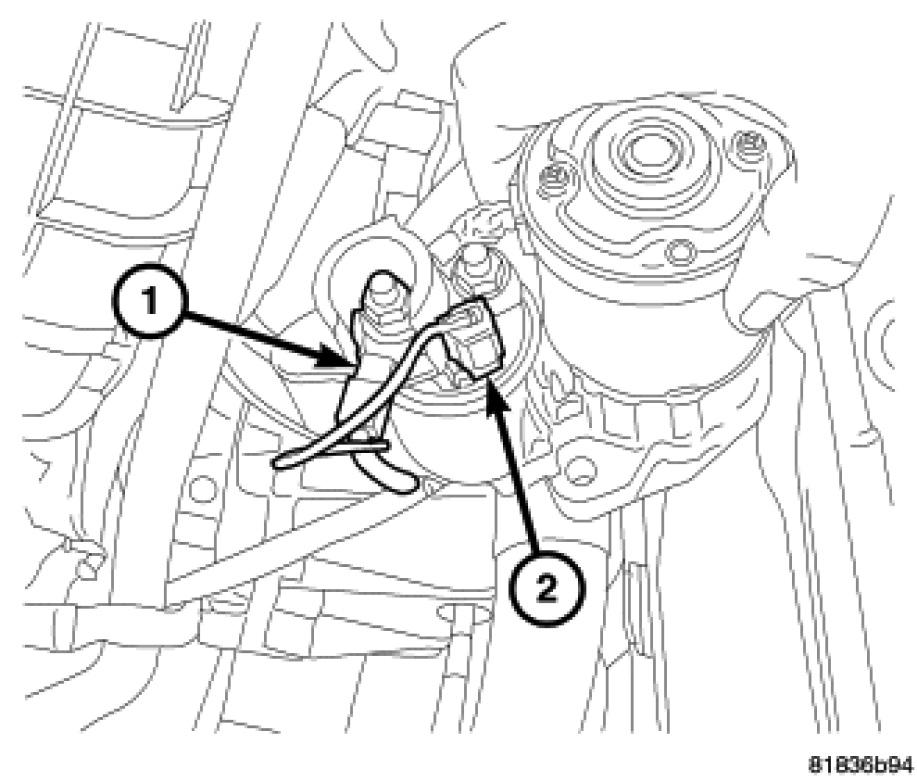

1. Connect starter motor wiring. Tighten battery cable nut to 10 Nm (90 in. lbs.).

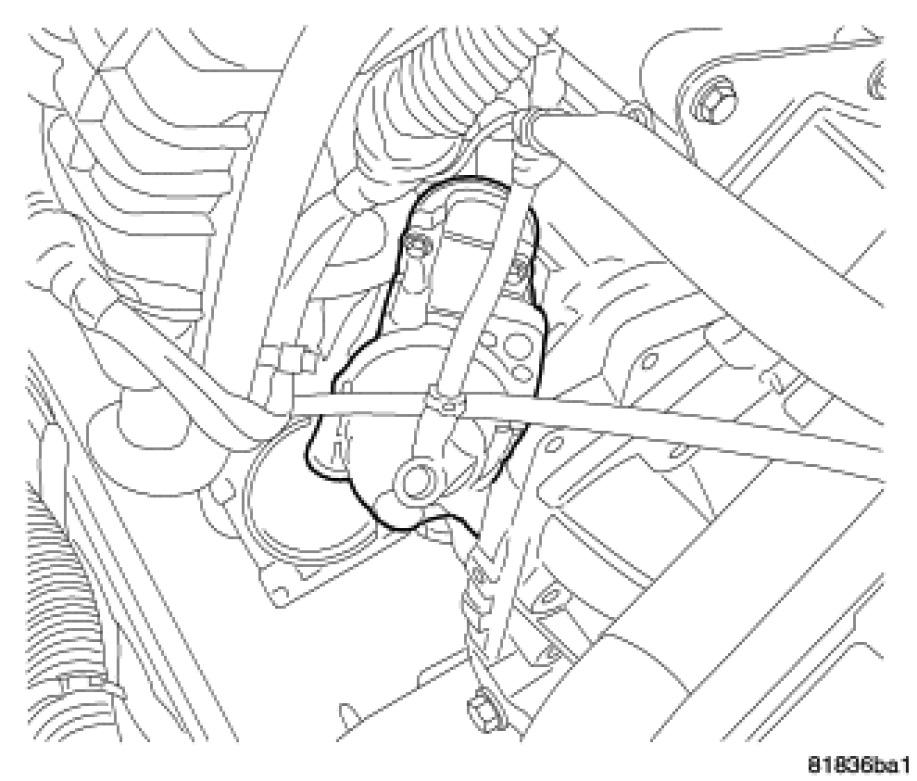

2. Reinstall starter motor into vehicle lower engine compartment.

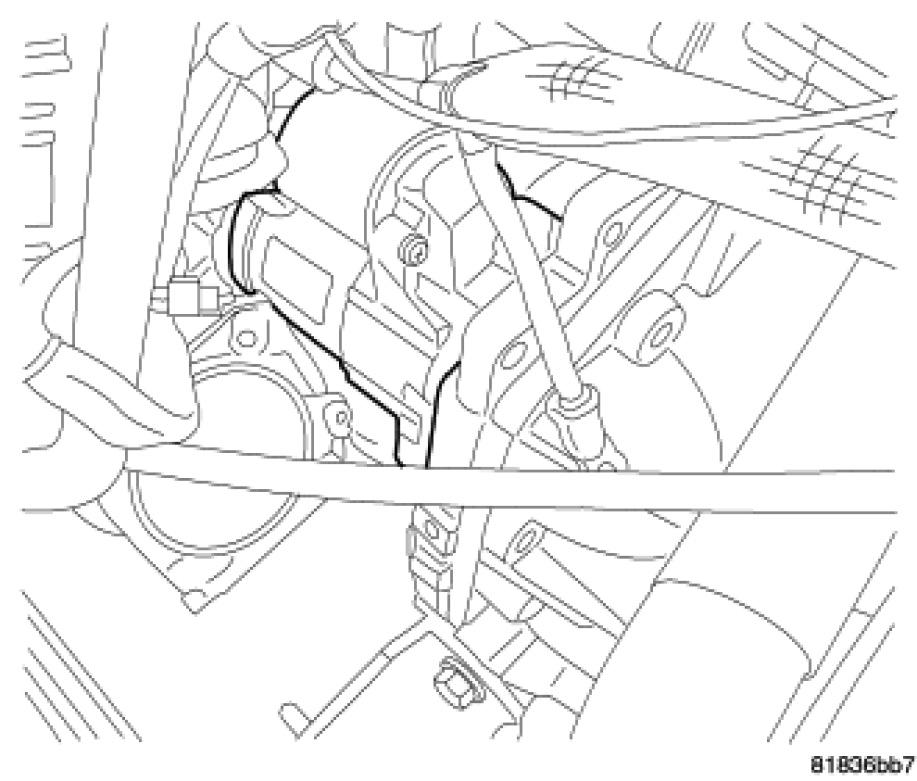

3. Loose install starter into position.




4. Install throttle body

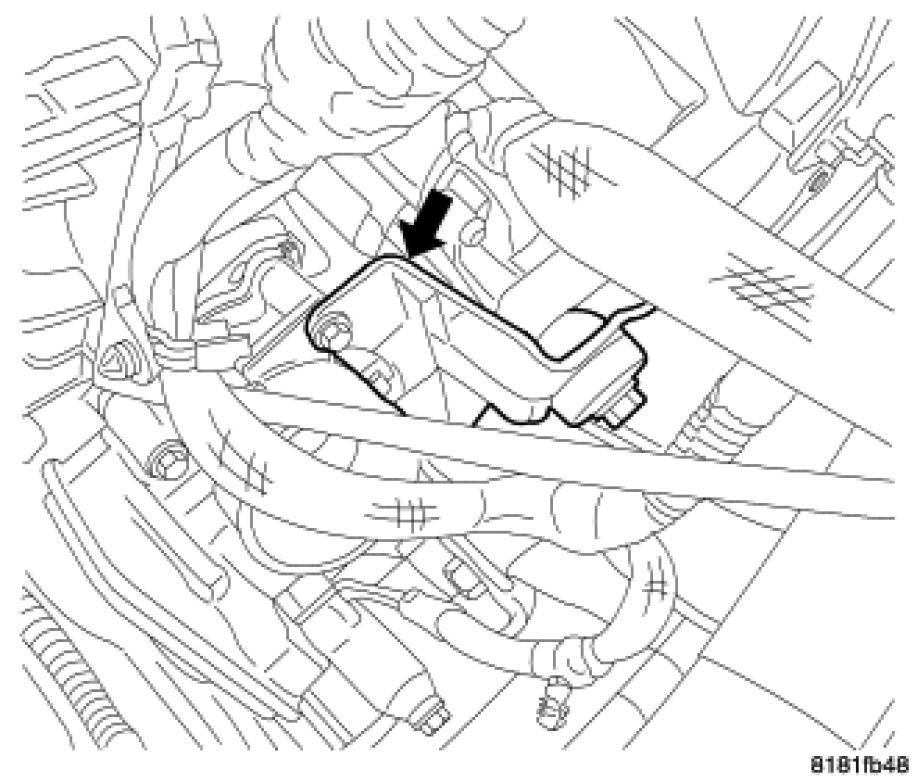

5. Install throttle body bracket.

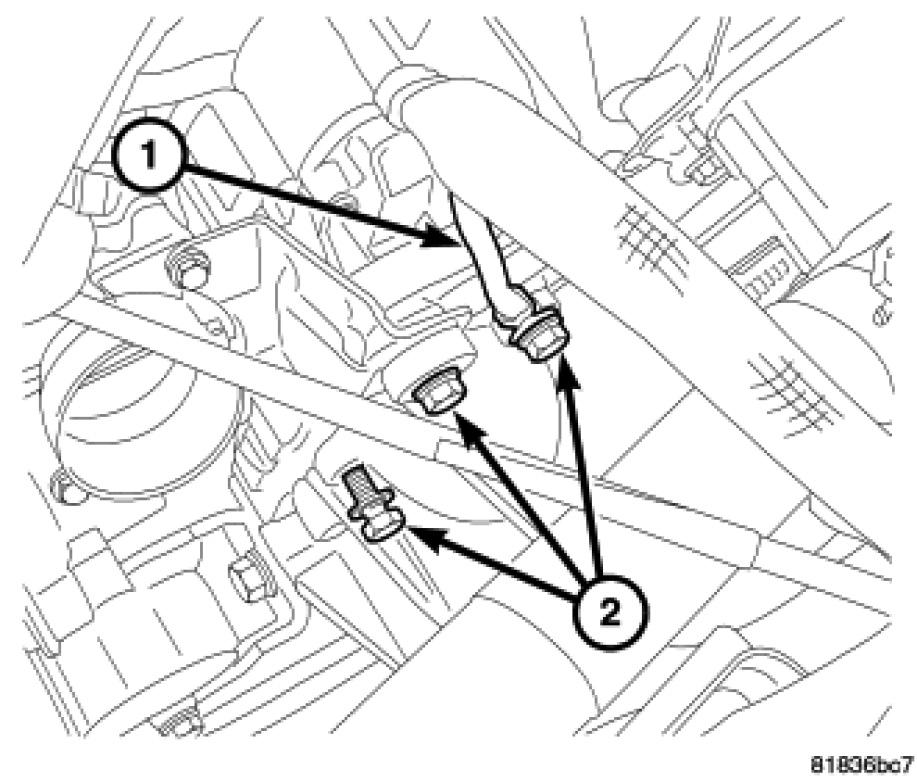

6. Install starter motor mounting bolts and tighten to 54 Nm (40 ft. lbs.).

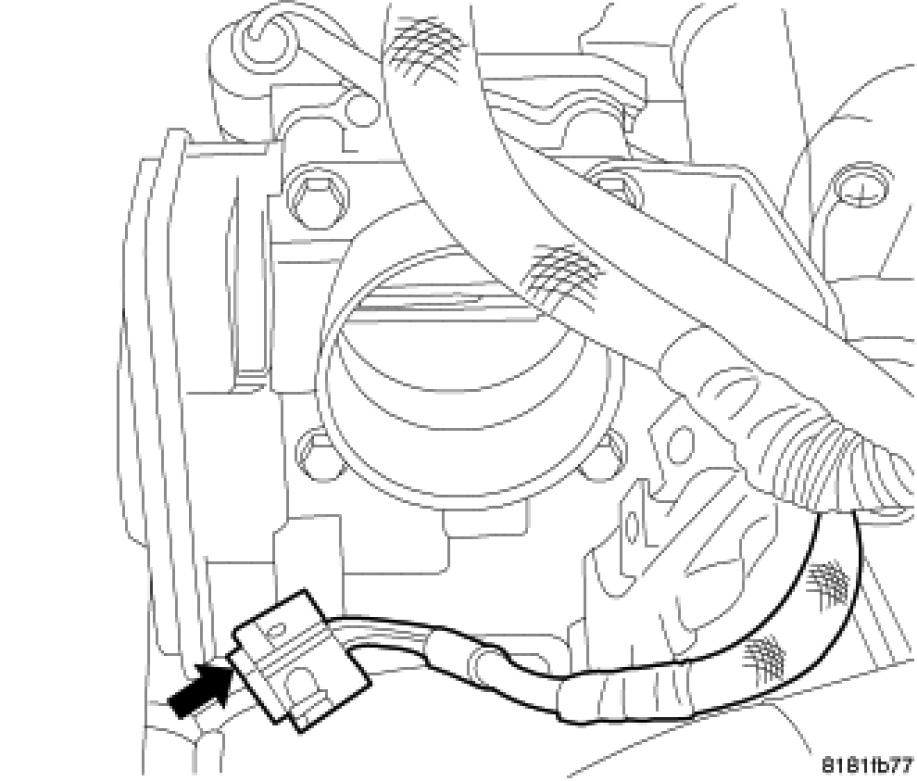

7. Connect throttle body electrical connector.

8. Install air cleaner box and inlet tube.

9. Lower vehicle.

10. Connect battery negative cable.
