Installation






INSTALLATION

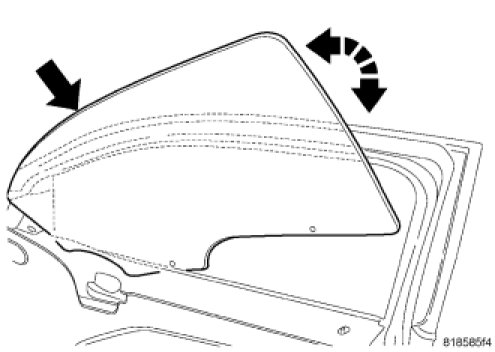

1. Position the glass into the door frame.

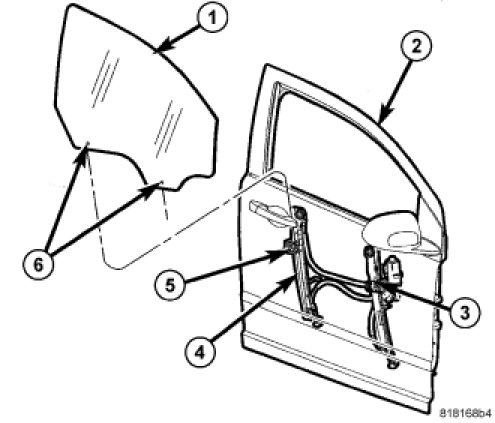

2. Slide glass (1) down into the door (2) and connect the mounting holes (6) to the regulator lift plates (3) and (5).

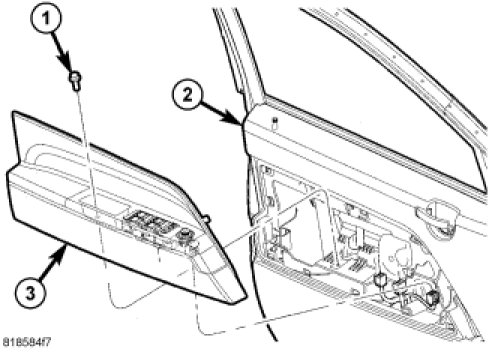

3. Install the bolster (3).
