Removal

REMOVAL




1. Before proceeding with the following repair procedure, review all warnings and cautions.

2. Remove the spoiler (1).




3. Remove the liftgate handle (1).




4. Remove the rear wiper arm (3).

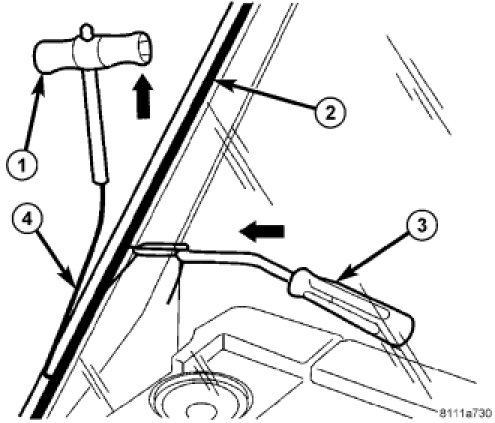

NOTE: Windshield removal shown, liftgate glass similar.

5. Disconnect the heated liftgate glass electrical connectors, if equipped.

6. Using a windshield cut-out wire (4) or other suitable tool, separate the adhesive (2).

7. Carefully remove liftgate glass.
